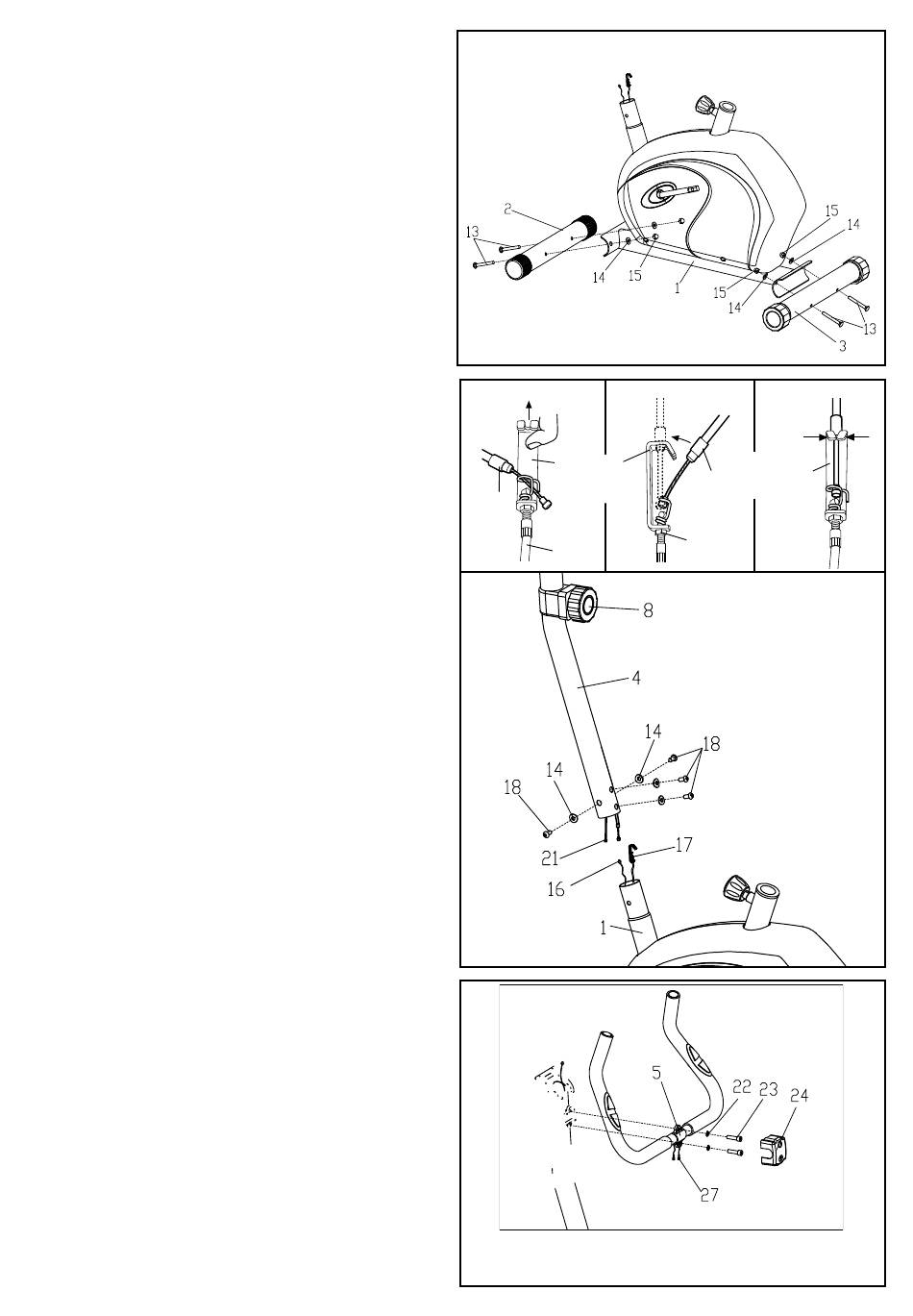

STEP 1
1. Attach the front stabiliser (2) and the rear
stabiliser (3) to the main frame (1) using the
bolts (13), the wave washers (14) and the nuts (15).
STEP 2
With a second person holding the handlebar
post (4) close to the main frame (1) as illustrated,
connect the extension cable (8) to the sensor
wire (17). Next, connect the resistance cable (21)
to the lower cable (16) as follows:
• Refer to diagram A. Pull up the metal bracket
on the lower cable (16), then insert the end of the
resistance cable (21) into the clip of the wire inside
the metal bracket, as illustrated.
• Refer to diagram B. Firmly pull the resistance
cable (21) upwards and slide it into the upper part
of the metal bracket, as illustrated.
• Refer to diagram C. Using pliers, tighten the metal
tabs on the upper part of the metal bracket against
each other.
Push the cables (21,16, 9,17) into the main
frame (1).
Next, slot the handlebar post (4) into the main
frame (1).
Ensure that the wires and cables are not
pinched. Attach the handlebar post using bolts
(18) and wave washers (14).
STEP 3
Place the heart rate cable (27) into the hole in
the handlebar post (4) then pull it through the top of
the handlebar post (4).
Attach the handlebars (5) to the handlebar
post (4) using bolts (23) and wave washers (22).
Next, attach the plastic handlebar cap to the
handlebars.
A
Metal
Support
métallique bracket
8 6
17
9
6
C
B
Metal
Support
8
6
bracket
métallique
17
9
