TP48200A-D14A1 Telecom Power
User Manual
2.1 Designation Explanation
The TP48200A-D14A1 is an outdoor cabinet-type power system and supplies power to the
-48 V DC telecom equipments. The TP48200A-D14A1 uses 50 A rectifiers and outputs a
maximum of 200 A current.

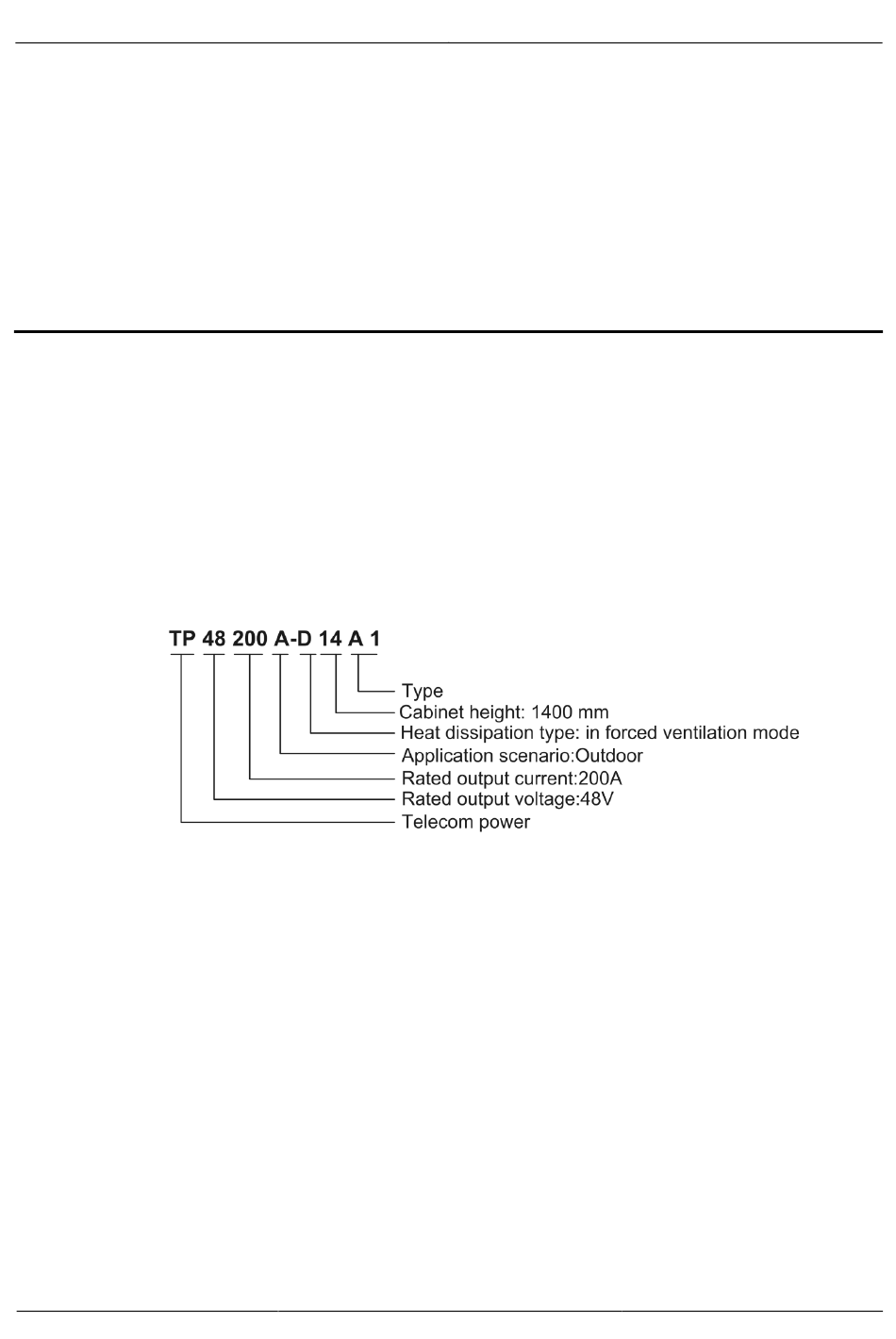

Figure 2-1 shows the TP48200A-D14A1 designation explanation.
Figure 2-1 Designation explanation
2.2 Typical Networking
The TP48200A-D14A1 power system, AC power supply, ATS, storage batteries, and related
devices constitute the site power solution. Figure 2-2 shows the application of the
TP48200A-D14A1 power system in the typical site power solution.
Issue 04 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
2
Overview
2 Overview
