Huawei TP48200A-D14A1 Telecom Power User Manual page 56

TP48200A-D14A1 Telecom Power
User Manual

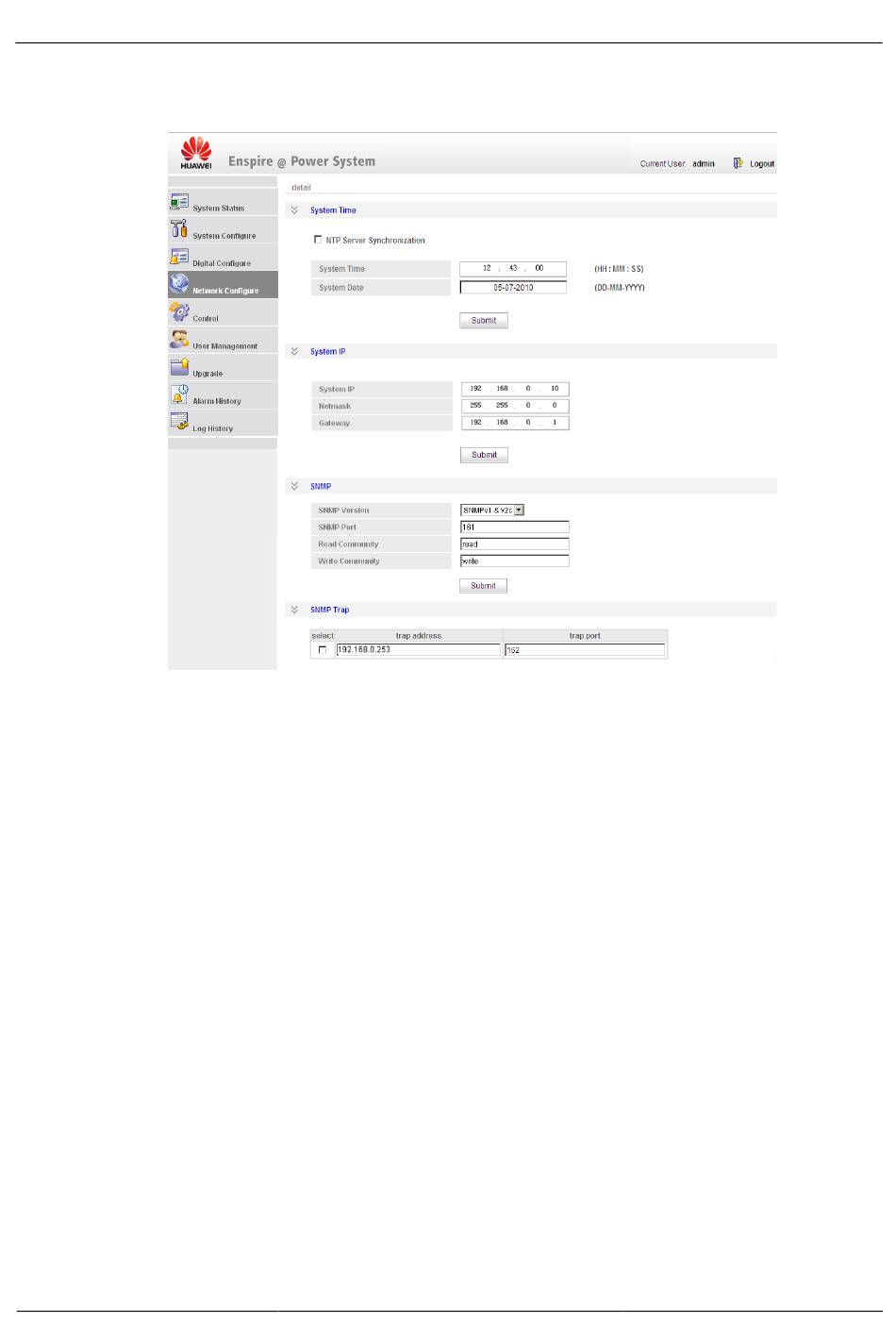

Figure 6-13 Network Configure
Setting the System Time
If there is a Network Time Protocol (NTP) server, select NTP Server Synchronization,set
NTP Server IP and System Time Zone, and then click Submit.The settings take effect upon
restart.
If there is no NTP server, set System Time and System Date. Then click Submit.
Step 1 Setting the System IP Address
Set System IP, Netmask, and Gateway, and then click Submit.
Step 2 Setting SNMP Parameters
On the PMU page, set SNMP parameters and then click Submit.
Step 3 Setting EMS Trap Parameters
On the SNMP Trap page, set the EMS addresses and port for receiving Trap messages. You
can set a maximum ofsix addresses. The PMU02C1 sends Trap messages to the EMS through
the configured port. The port configured here is the alarm listening port and is 162 by default.
----End
Issue 04 (2019-12-20) Copyright © Huawei Technologies Co., Ltd.
6 Monitoring Function
50
