Summary of Contents for Hored AI1010G-Apollo

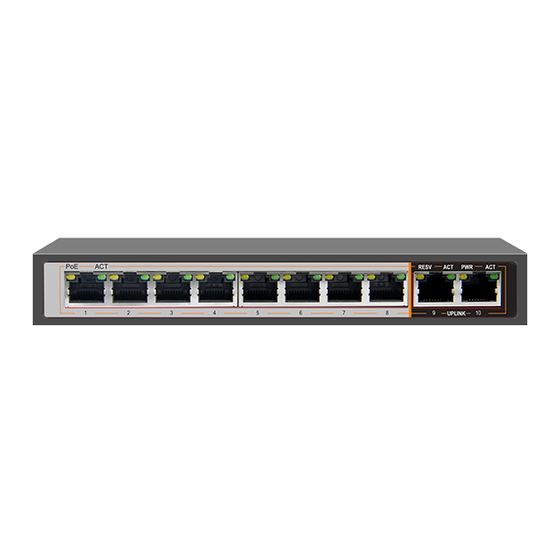

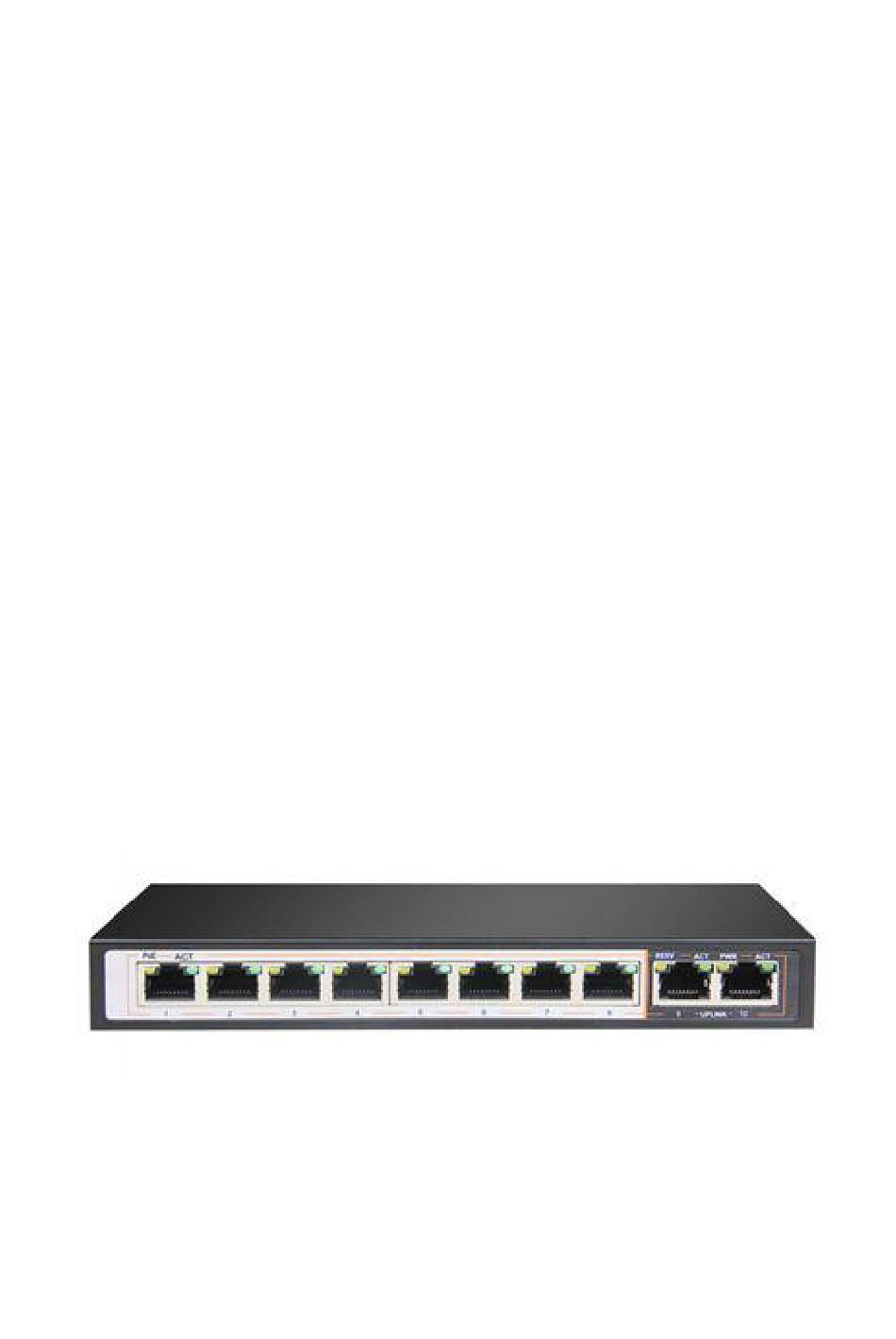

- Page 1 User Manual AI1010G-Apollo 10 Port Gigabit AI Cloud PoE switch...
- Page 2 Overview: AI1010G-Apollo is a 10-port AI PoE switch, support the management of Apollo Gigabit cloud It has 4 working modes, AI VLAN mode, AI CCTV video monitoring mode, AI power mode, AI QoS mode. All ports are free to communicate by default; In AI VLAN mode, 1 -8ports are isolated from each other, which can effectively restrain network storms and improve network performance.
- Page 3 Technical Specification · 8 10/100/1000Mbps PoE RJ45 port (port 1～port 8) Network Port · 2 10/100/1000Mbps non-PoE RJ45 port(port 9~port 10) Transfer Rate · 1000Mbps full Duplex Network protocol ·IEEE802.3i, IEEE802.3u, IEEE802.3x, and standard IEEE802.3ab,IEEE802.3af IEEE802.3at ·Bandwidth: 20Gbps(no block) ·Frame filtering and transmission rate: 10M port maximum 14,880pps Performance 100M port maximum 148,810pps...
- Page 4 Installation diagram Notice ： The diagram is for reference only. Indicator Status: Indicator Indicator Normal Abnormal Status Description Status If the light is not on, Please check external socket Power Yellow power supply if it is normal/adapter power Indicator Indicator light on connection if is correct or not etc..
