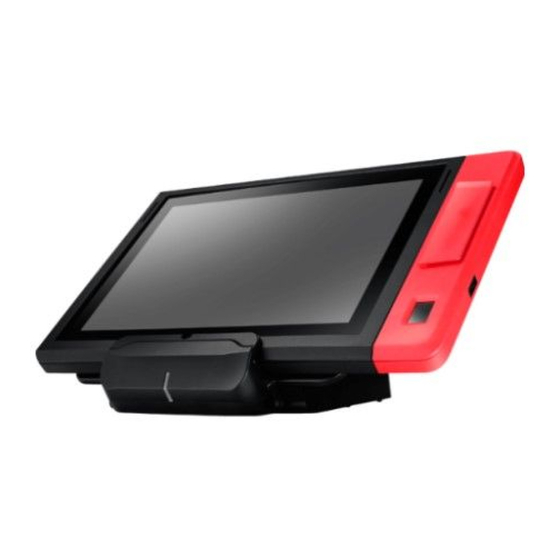

Tysso MP-1311 User Manual

10.1 inch mobile point of system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MP-1311
10.1 Inch Mobile Point of System
User Manual
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-1311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tysso MP-1311

Summary of Contents for Tysso MP-1311

  • Page 1 MP-1311 10.1 Inch Mobile Point of System User Manual Installation Guide...

  • Page 2: General Information

    General Information About This Manual The purpose of this user’s manual is to provide general information on TYSSO’s POS Terminal and to show the users how to configure the hardware-related configurations. The information in this manual is subject to change without notice due to rapid improvement on IT technology.

  • Page 3: Caution

    Do not attempt to disassemble the battery, immerse it in the water or expose it to fire. MP-1311 is required to be charged over 8 hours when used for the first time. Warranty Limits If the product and the parts are disassembled by any person other than the authorized technicians, the warranty will be terminated.

  • Page 4: Important Safety Information

    Important Safety Information  Read following instructions carefully.  Use only parts, especially power adapter, recommended by the manufacturer; unapproved parts may be hazardous.  Before plugging the power cord into the AC inlet of the power supply unit, make sure that the voltage applied to the power outlet is within the specified range (100V~240V).

  • Page 5: Table Of Contents

    Start Your POS system Replace the External Module Sku Note: Plastic Protective Cap (CB-1300-G) Install Micro SD Card in MP-1311 Detach the Hand Strap Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are...

  • Page 6: Product Overview

    Product Overview Packing Main Tablet with External Module Sku Main Tablet Quick Installation Guide External Module Skus* Module A: MSR, 2D Barcode Scanner, and Finger Print. Module B: MSR, 2D Barcode Scanner, and NFC. Module C: MSR and 2D Barcode Scanner. Module E: 2D Barcode Scanner.

  • Page 7: Specifications

    Specifications Model Description MP-1311-A MP-1311-B MP-1311-C MP-1311-E MP-1311-F Main System Intel Atom® x5-Z8350 Quad Core 1.44GHz, up to 1.92GHz Processor 10.1-inch IPS, 1280 x 800, 300nits Display True-Flat Projected-Capacitive Multi Touch (PCAP) Touch Panel 4GB DDR3L 1600MHz Memory 64GB eMMC...
  • Page 8 -10°C to +50°C / 10 to 85% without condensation * The product information and specifications are subject to change without prior notice. To get the detailed information on the MP-1311, please check this model from Tysso Website. Copyright © 2019 Fametech Inc. All Rights Reserved.
  • Page 9 RJ45 to DB9 Cable (50cm) Cable Hand Strap Design to securely hold the MP-1311-X Series Tablet Note: The specifications are subjected to change without prior notice. For further information relating to the optional accessories, please contact the local representatives or technical support personnel of the providers.
  • Page 10 Dimensions Top View Left View Front View Right View Bottom View Rear View Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 11: Parts Descriptions

    Parts Descriptions Front View Volume Power (Up / Down) Button Light Sensor Indicator Front Camera USB 2.0 Touch Screen Alignment Mark Finger Print External Module Sku* Volume Power (Up / Down) Button Light Sensor Indicator Front Camera USB 2.0 Alignment Touch Screen Mark External...
  • Page 12 Rear View Rear Camera 2D Barcode Scanner Scan Trigger Hand Strap External Module Sku* Note: The External Module Skus (Modules A, B, C, E, and F) is optional and pre-installed to the Main Tablet. Bottom View Pogo Pin (to Dock Station and Charging Cradle) Copyright ©...
  • Page 13 Micro USB HDMI USB 3.0 Turn off MP-1311 completely before installing the Micro SD card. Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
  • Page 14 External Module Skus Detached Main Tablet (Left) and External Module Sku (Right) Module A Module B Module C 2D Barcode Scanner 2D Barcode Scanner 2D Barcode Scanner Finger Print Module F Module E 2D Barcode Scanner Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
  • Page 15 Dock Station (CB-1300-C) DC IN COM1 Dock Station (CB-1300-D) DC IN LAN COM2 COM1 Charging Cradle (CB-1300-E) 12VDC Input Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 16: Mpos Installation

    MPOS Installation Charge Your Tablet 1. AC Power Adapter via Main Tablet 5VDC Input Main Tablet AC Power Adapter ①. Connect the connector of the AC power adapter to the Main Tablet. ②. Plug the AC power adapter into an electrical outlet. ③.

  • Page 17: Main Tablet Via Charging Cradle

    2. Main Tablet via Charging Cradle Main Tablet 12V DC Input Dock Station Charging AC Power Adapter Cradle ①. Connect the connector of the AC power adapter to the Dock Station or Charging Cradle. ②. Plug the AC power adapter into an electrical outlet. ③.

  • Page 18: Start Your Pos System

    Start Your POS system Pres Power BEEP To Start the System: Press the Power Button for 3 seconds until the system is initiated. There is an audio notification and the system is initiated. 3 Sec To Shut Down the System: Use the system menu to shut down the system.

  • Page 19: Replace The External Module Sku

    Replace the External Module Sku To replace or detach the External Module Sku: Turn off the Tablet System. Remove the securing screws of the External Module Sku. Securing Screw Securing Screw Rear View of Main Tablet with External Module Sku Detach the External Module Sku form the Main Tablet.

  • Page 20: Note: Plastic Protective Cap (Cb-1300-G)

    Note: Plastic Protective Cap (CB-1300-G) If the is no External Module Sku installed on the Main Tablet. Please use the supplied Plastic Protective Cap (MP-1300-F) and install to the Main Tablet. Plastic Protective Cap Tablet Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 21: Install Micro Sd Card In Mp-1311

    If you attempt to release a micro SD card from the slot, push the card with your fingertip to slide it out. Turn off MP-1311 completely before installing the Micro SD card. Copyright © 2019 Fametech Inc. All Rights Reserved.

  • Page 22: Detach The Hand Strap

    Detach the Hand Strap Securing Hand Strap Screws Main Tablet Securing Screws Remove the Securing Screws of the Hand Strap. Detach the Hand Strap from the Main Tablet. Copyright © 2019 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
