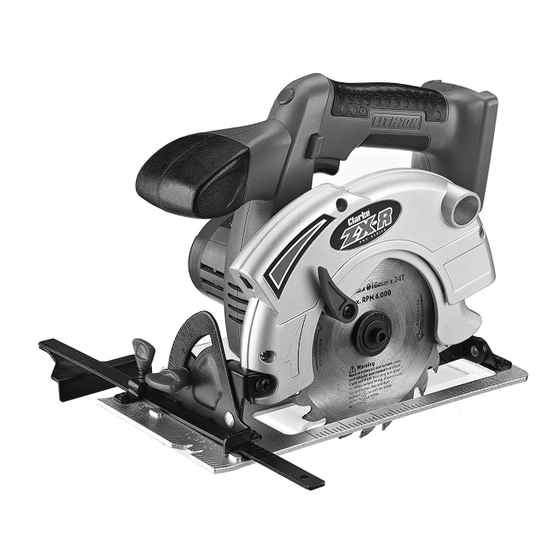

20V CORDLESS CIRCULAR SAW
MODEL NO: CCS20Li
PART NO: 6487015
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX-R PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke ZX-R PRO Series

  • Page 1 20V CORDLESS CIRCULAR SAW MODEL NO: CCS20Li PART NO: 6487015 OPERATION & MAINTENANCE INSTRUCTIONS LS0113...
  • Page 2 This guarantee does not effect your statutory rights. WHAT’S SUPPLIED Unpack your tool and make sure that the following items are present. Should there be any damage caused during transit contact your Clarke dealer immediately. 1 x 20V Cordless Circular saw 1 x Rip Fence Parts &...
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR 20V CORDLESS CIRCULAR SAW. 1) WORK AREA SAFETY a.
  • Page 4 c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d.
  • Page 5: Environmental Protection

    c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Page 6: Prevention Of Kickback

    PREVENTION OF KICKBACK Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator. When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.
  • Page 7 SYMBOLS & PICTOGRAMS Laser Radiation, Class 2 Laser: Do not stare into the beam Read instruction CE Mark manual before use Weee Symbol Wear Eye Protection Wear Dust Mask Wear Safety Gloves Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 8: Parts List

    PARTS LIST Parallel Guide Bevel Adjustment Knob On/Off Trigger Mark For 45 Bevel Cut Handle Mark For Straight Cut Safety Lock Button Hexagon Key Auxiliary Handle Laser Depth Guide Dust Extraction Outlet Depth Adjustment Knob Lower Guard Retracting Lever Laser Guide On - Off button Blade Clamping Screw Spindle Lock Lower Guard (shown retracted)
  • Page 9: To Remove The Battery

    FITTING THE BATTERY PACK (NOT SUPPLIED) This lamp requires a Clarke 20V Lithium-ion battery pack (6487040) and 1 Hour Charger (6487050) to operate. Both are available separately from your local Clarke dealer. TO FIT THE BATTERY 1. Slide the battery on to the circular saw.
  • Page 10: The Laser Guide

    THE LASER GUIDE The laser guide can help with accurate cutting. SWITCHING ON/OFF Use the on/off button to turn the laser on/off. BEVEL ADJUSTMENT 1. Loosen the bevel adjustment locking lever. 2. Adjust the base plate to the required angle (max 45 •...
  • Page 11: Operation And Use

    OPERATION & USE CORRECT HAND POSITION For your own safety, always hold the circular saw as shown in this picture, with one hand on the main handle and the other on the auxiliary handle. SWITCHING ON/OFF The on/off trigger is fitted with a safety button which prevents the circular saw from starting accidentally.
  • Page 12: Maintenance

    • Make sure that you pay attention to the direction marking on the blade. • Replacement blades are available from your local Clarke dealer. 4. Replace the blade clamping screw by hand until it is holding the blade in position.
  • Page 13: Specifications

    SPECIFICATIONS Voltage Battery Type (Supplied Separately) Li-Ion No Load Blade Speed 4000 Maximum Depth of cut @ 90 Maximum Depth of cut @ 45 Blade Depth Adjustment 0-40 @ 90 Weight (without battery pack) 2.25 Dimensions (without battery pack) (L x W x H) 300 x 168 x 224 Guaranteed Sound Power Level (LWA) dB(A)
  • Page 14: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15 CLARKE ZX-R RANGE The Clarke ZX-R 20V cordless power tools are designed as a high power and quality solution for the tradesman that requires a number of different tool types. Hammer Drill. Jig Saw Model: Model: CDD20Li CJS20Li Part Number:...
