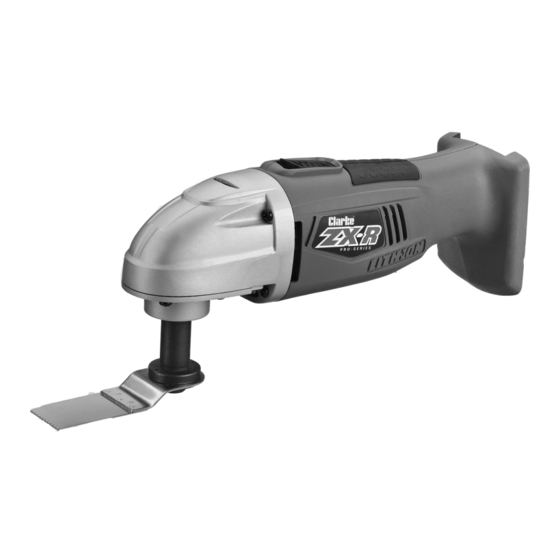

20V CORDLESS MULTI FUNCTION TOOL
MODEL NO: CMFT20Li
PART NO: 6487030
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0313

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX-R PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarke ZX-R PRO Series

Summary of Contents for Clarke ZX-R PRO Series

  • Page 1 20V CORDLESS MULTI FUNCTION TOOL MODEL NO: CMFT20Li PART NO: 6487030 OPERATION & MAINTENANCE INSTRUCTIONS LS0313...
  • Page 2 INTRODUCTION Thank you for purchasing this CLARKE 20V cordless Multi Function Tool. Read this manual fully before use. Follow the instructions carefully to ensure the safety of yourself and those around you. You can also look forward to your purchase providing you with a long and satisfactory service.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR 20V CORDLESS MULTI FUNCTION TOOL. 1) WORK AREA SAFETY a.
  • Page 4 c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d.

  • Page 5: Environmental Protection

    c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Page 6 electrical wiring may exist. If this situation is unavoidable, disconnect all fuses or circuit breakers feeding this worksite. 2. Use a metal detector to determine if there are gas or water pipes hidden in the work area or call the local utility company for assistance before beginning the operation.

  • Page 7: Before Use

    BEFORE USE FITTING THE ACCESSORIES WARNING: ENSURE THAT THE BATTERY HAS BEEN REMOVED BEFORE FITTING OR REMOVING THE ACCESSORIES . The multi-function tool should be supplied with the retaining disc held in place by the retaining screw. 1. Remove the retaining screw using the hex key supplied, and lift away the retaining disc.
  • Page 8 FITTING THE BATTERY PACK (NOT SUPPLIED) This multi purpose tool requires a 20V battery pack (6487040) and 1 Hour Charger (6487050) to operate. Both are available separately from your local Clarke dealer. TO FIT THE BATTERY 1. Slide the battery pack onto the base of the multi purpose tool.

  • Page 9: Operation

    OPERATION 1. Hold the tool firmly and switch on by sliding the On/Off switch forward. The motor will then run continuously. Slide the switch back and the motor will stop. 2. Slowly apply the tool to the workpiece and proceed to sand or cut.
  • Page 10 USING THE SANDER ATTACHMENT WARNING: ALWAYS WEAR EYE PROTECTION AND A DUST MASK FOR DUSTY APPLICATIONS AND WHEN SANDING OVERHEAD. CHOOSING THE CORRECT SANDING SHEET Ensure you have the correct sanding paper for the application. Always GRIT USED FOR test on scrap material before using Removing paint and on your final workpiece.

  • Page 11: Using The Scraper

    USING THE SCRAPER In scraping mode, the tool can be used to remove materials such as paint, sealant residues, adhesives, fabrics and vinyl from materials such as wood, plastic, metal and painted surfaces. 1. Switch the tool on before it touches the work piece.
  • Page 12 USING THE SAW ATTACHMENT In sawing mode, the tool can be used to cut materials such as wood, plastics and sheet metal such as aluminium, although the supplied blades are not ideally suited to cutting steel or similar ferrous metals. CAUTION: CLAMP YOUR WORKPIECE SECURELY IF POSSIBLE BEFORE STARTING WORK.

  • Page 13: General Maintenance

    Brushes are a consumable spare which should be replaced by your Clarke dealer or power tool repairer. • Refer to your CLARKE dealer if internal maintenance is required. CONSUMABLE SPARE PARTS The Multi-Function Tool Accessory Kit - (Part No 6462205) includes the following and is available from your CLARKE dealer.

  • Page 14: Specifications

    SPECIFICATIONS Voltage 20 VDC Battery Type (not supplied) Li-Ion No-load speed 17000 Oscillations /Minute: Weight (without battery pack) 1.1 kg Dimensions (without battery pack) (L x W x H) 234 x 70 x 113 mm Sound Power Level (LWA) 90 dB(A) Sound pressure Level (LPA) 79 dB(A) Sound Uncertainty Value (K)

  • Page 15: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
