- Page 1 Model：RA0711_R72611_RA0711Y Wireless Liquid Level Sensor Wireless Liquid Level Sensor User Manual Firmware:V1.3 Hardware:V0.4...
-
Page 2: Table Of Contents

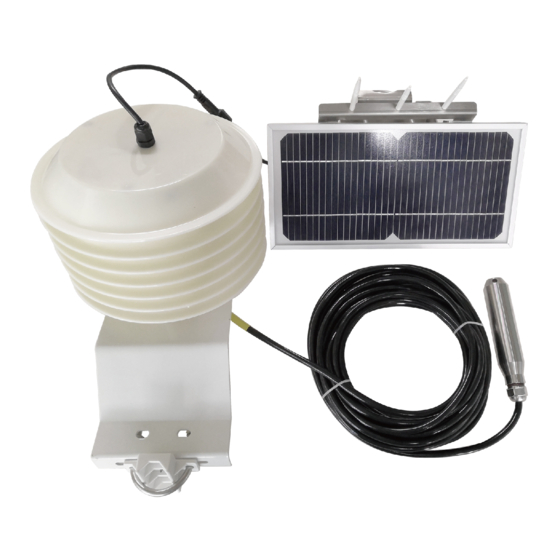

LoRaWAN: LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and gateways from different manufacturers. Appearance Figure 1. RA0711 external liquid level sensor (subject to the actual object) - Page 3 Figure 2. R72611 external liquid level Sensor (subject to the actual object)
-
Page 4: Main Features
Figure 3 RA0711Y external liquid level sensor (subject to the actual object) 3. Main Features Compatible with LoRaWAN RA0711 和 RA0711Y apply DC 12V adapter R72611 applies solar and rechargeable lithium batteries Simple operation and setting ... -
Page 5: Set Up Instruction
4.Set up Instruction On/Off RA0711 and RA0711Y are connected to the DC 12V adapter for power-on; Power on R72611 applies solar and rechargeable lithium batteries. Turn on Power on to turn on. Restore to factory setting Press and hold the function key for 5 seconds till green indicator flashes for 20 times. -
Page 6: Data Report
TxPeriod, depending on which cycle time is configured last time; 3. After pressing the button, the device needs 35 seconds to process the sensor information, please be patient. The data parsing reported by the device is referenced by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index... - Page 7 Data report configuration and sending period are as following: Min Interval Max Interval Reportable Current Change≥ Reportable Current Change ＜ Reportable (Unit:second) (Unit:second) Change Change Change number between Any number between Report Report Can not be 0. 1~65535 1~65535 per Min Interval per Max Interval Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e.
-
Page 8: Installation
Installation steps and precautions: 1.The level detector (RA0711) is fixed with screws (purchased by users) to secure the unit to the surface of a wall or other object. Note: Do not install the device in a metal enclosure or other electrical equipment around it to avoid affecting the wireless transmission of the device. - Page 9 When using, try to avoid sharp objects damage to the liquid level transmitter. Damage will cause the water inlet to damage the liquid level transmitter. The liquid level transmitter is a precision instrument and is not allowed to be disassembled to avoid damage. The level detector (RA0711) is suitable for the following scenarios Water tank Pool ...
-
Page 10: Important Maintenance Instruction
3: After activation, close the cover and lock the 4 box screws. Rechargeable lithium battery installation instructions. 3. The RA0711Y product is waterproof and can be placed outdoors after the network-joining is completed. (1) In the position to be installed, loosen the bottom U-shaped screw of the RA0711Y and the mating washer nut, and fix the U-shaped screw through the appropriate size cylinder on the RA0711Y fixed strut piece.
