Model：RA0716_R72616_RA0716Y
Wireless PM2.5/Temperature/Humidity Sensor
Wireless PM2.5 / Temperature /
Humidity Sensor
User Manual
Copyright©Netvox Technology CO.., Ltd.
This document contains proprietary technical information which is the property of
NETVOX Technology. It shall be maintained in strict confidence and shall not be
disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
Advertisement
Related Manuals for netvox RA0716
Summary of Contents for netvox RA0716
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.
-
Page 2: Table Of Contents
Table of Content 1. Introduction ......................... 2 2. Appearance ........................3 3. Main Features ......................4 4. Set up Instruction ......................5 5. Data Report ......................... 7 6. Installation ........................9 7. Important Maintenance Instruction ................11... -
Page 3: Introduction
1. Introduction RA0716_R72616_RA0716Y is a ClassA type device based on the LoRaWAN open protocol of Netvox and is compatible with the LoRaWAN protocol. RA0716_R72616_RA0716Y can be connected to a variety of sensors. A variety of sensor combinations are required. As detectors for PM2.5, temperature and humidity, the values collected by the sensor are reported to the corresponding gateway. -
Page 4: Appearance
2. Appearance PM2.5 sensor Indicator Temperature & Humidity sensor DC in Button Figure 1 RA0716 Waterproof cover Built-in battery pack Built-in PM2.5, Temperature & Humidity Solar panel Figure 2 R72616... -
Page 5: Main Features
Power Cable Figure 3 RA0716Y 3. Main Features Compatible with LoRaWAN RA0716 and RA0716Y powered by DC 12V adapters R72616 powers solar and rechargeable lithium batteries Easy set up and installation PM2.5, Temperature and Humidity detection ... -
Page 6: Set Up Instruction
4. Set up Instruction On/Off RA0716 and RA0716Y are connected to the DC 12V adapter for power-on; Power on R72616 applies solar and rechargeable lithium batteries. Turn on Power on to turn on. Power off Remove power 1. Engineering test modes require the program engineering test software. - Page 7 Restore to Factory Setting RA0716_R72616_RA0716Y has the power-down save network information memory function. This feature is turned off by default, that is, it will be re-joined every time it is powered back on. Description It can be turned on by the ResumeNetOnOff command. At this time, each time the power is rewritten, the last networking information will be recorded (including saving the network address information assigned to it, etc., if users want to join a new network, they need to perform a factory reset operation before that.),...
-
Page 8: Data Report
(8) It would take about 35 seconds for the PM2.5 sensor to sample and process the collected PM2.5 value if you were to manually trigger the device by pressing the button, please be patient. The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/page/index... - Page 9 MaxTime Reserved 0x82 ReportRsp (2bytes Unit:s) (2bytes Unit:s) (5Bytes,Fixed 0x00) (1) Configure RA0716 device parameters MinTime = 30s, MaxTime = 120s (120>30*1+10) Downlink: 0135001E00780000000000 Device returns: 8135000000000000000000 (configuration is successful) 8135010000000000000000 (configuration failed) (2) Read RA0716 device parameters Downlink: 0235000000000000000000...
-
Page 10: Installation

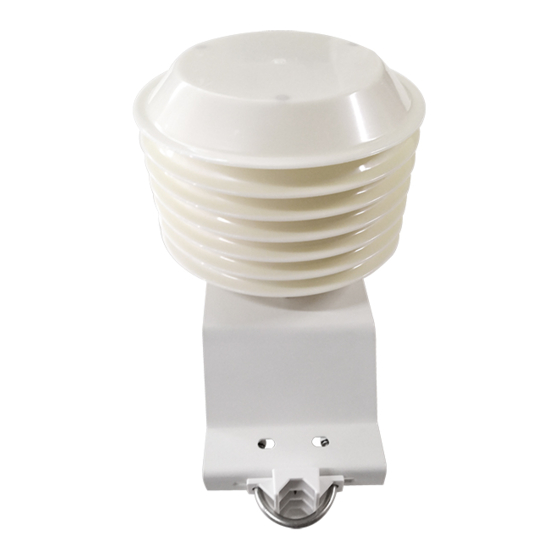

6. Installation 1. The RA0716 does not have a waterproof function. After the network joining is completed, please place it indoor. 2. The R72616 product is waterproof. After the network-joining is completed, please leave it outdoors. (1) In the position to be installed, loosen the U-shaped screw of the bottom of the R72616 and the mating washer nut, and fix the U-shaped screw through the appropriate size cylinder on the R72616 fixed strut piece. - Page 11 3. The RA0716Y product is waterproof and can be placed outdoors after the network-joining is completed. (1) In the position to be installed, loosen the bottom U-shaped screw of the RA0716Y and the mating washer nut, and fix the U-shaped screw through the appropriate size cylinder on the RA0716Y fixed strut piece.
-
Page 12: Important Maintenance Instruction
7. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits.
