R712
Model：
Wireless Outdoor Temperature And Humidity Sensor
Wireless Outdoor Temperature
and Humidity Sensor
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of
NETVOX Technology. It shall be maintained in strict confidence and shall not be
disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R712 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R712

Summary of Contents for netvox R712

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ......................... 2 2. Appearance ........................3 3. Main Features ......................4 4. Set up Instruction ......................5 5. Data Report ......................... 6 6. Installation and Precaution ..................10 7. Important Maintenance Instruction ................13...

  • Page 3: Introduction

    R712 is a long-range wireless outdoor temperature and humidity device based on the LoRaWAN open protocol (Class A). The R712 is mainly used to detect the temperature and humidity in outdoor air, and also carrying a waterproof housing. It collects data over LoRa network and sends it to devices to be shown, fully compatible with LoRaWAN protocol.

  • Page 4: Appearance

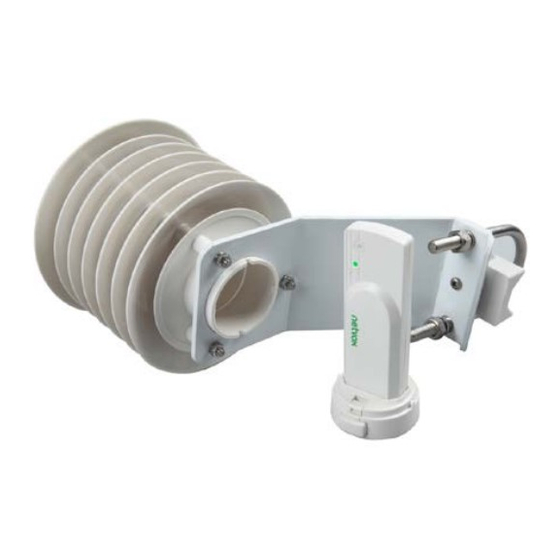

    2. Appearance Waterproof Housing Function Key Indicator Temperature and humility probe...

  • Page 5: Main Features

    ⚫ Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Improved power management for longer battery life ⚫ Battery Life*2: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations.

  • Page 6: Set Up Instruction

    4.Set up Instruction On/Off Power on Insert 2 section AA 1.5V batteries Turn on Press the function key till the green and red indicator flashes once. Turn off Press and hold the function key for 5 seconds till green indicator flashes for 20 (Restore to factory setting) times.

  • Page 7: Data Report

    Sleeping Mode Sleeping period: Min Interval. The device is on and in the When the reportchange exceeds setting value or the state changes: send a data network report according to Min Interval. Low Voltage Warning Low Voltage 2.4V 5. Data Report The device will immediately send a version packet report along with an uplink packet including temperature, humidity and battery voltage.
  • Page 8 Change Change Change 0x01 ReportReq (2bytes Unit:s) (2bytesUnit:s) (1byte (2byte (2byte Unit:0.1v) Unit:0.01℃) Unit:0.01%) Config Status Reserved 0x81 ReportRsp R712 (0x00_success) (8Bytes,Fixed 0x00) 0x01 ReadConfig Reserved 0x02 ReportReq (9Bytes,Fixed 0x00) Battery Temperature Humidity ReadConfig MinTime MaxTime Change Change Change 0x82...
  • Page 9 Example for MinTime/MaxTime logic: Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime MaxTime Sleeping(MinTime) Sleeping(MinTime) Wake up and collects data Wakes up and collects data Wakes up and collects data REPORTS 3.0V REPORTS 3.0V REPORTS 3.0V Note: MaxTime=MinTime.
  • Page 10 Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Users push the button, Wakes up and collects data REPORTS 2.9V. 2.9V |2.9-3.0|=0.1 Wakes up and Recalculate MaxTime. REPORTS 2.9V collects data 2.9V sleeping sleeping Does not report 1H 10...

  • Page 11: Installation And Precaution

    4. When the temperature and humidity detected by R712 is compared with the last reported values, when the temperature change is exceeded 1°C (default) or the humidity change is exceeded 1%(default),it will report current values.
  • Page 12 Range of diameter of post for mounting Ø 25~ Ø 50(mm) Battery installation steps The device must use 2 sections of AA 1.5V Alkaline batteries Step 1 Press the buttons on both sides of the base (as shown in the below picture), then gently take out the sensor inside the housing.
  • Page 13 Step 2 On the back of the device, press and hold the battery cover, and then slide down to open the battery bay. Put the batteries into the battery bay of the device. Please note the positive and negative poles of the battery, please do not insert the battery reversely. Step 3 After inserting the batteries, like the following picture, and put the lid back on.

  • Page 14: Important Maintenance Instruction

    7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely. •...
