Wireless Wind speed sensor &Wind direction sensor &Temperature/Humidity Sensor
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
Wireless Wind speed sensor
& Wind direction sensor
& Temperature/Humidity Sensor
RA0730_R72630_RA0730Y
User Manual
Model: RA0730_R72630_RA0730Y
Advertisement
Table of Contents
Related Manuals for netvox RA0730
Summary of Contents for netvox RA0730
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.
-
Page 2: Table Of Contents
Table of Content 1.Introduction ....................2 2.Appearance ....................3 3.Main Feature ....................3 4.Set up Instruction ..................4 5.Data Report ....................5 6.Installation ....................7 6-1 The output value of Wind direction corresponds to wind direction .. 7 6-2 Installation Method of Wind Direction Sensor ........7 6-3 Installation .................. -
Page 3: Introduction
1. Introduction RA0730_R72630_RA0730Y is a ClassA type device based on the LoRaWAN open protocol of Netvox and is compatible with the LoRaWAN protocol. RA0730_R72630_RA0730Y can be connected with the sensor of the wind speed, wind direction, temperature and humidity, the values collected by the sensor are reported to the corresponding gateway. -
Page 4: Appearance

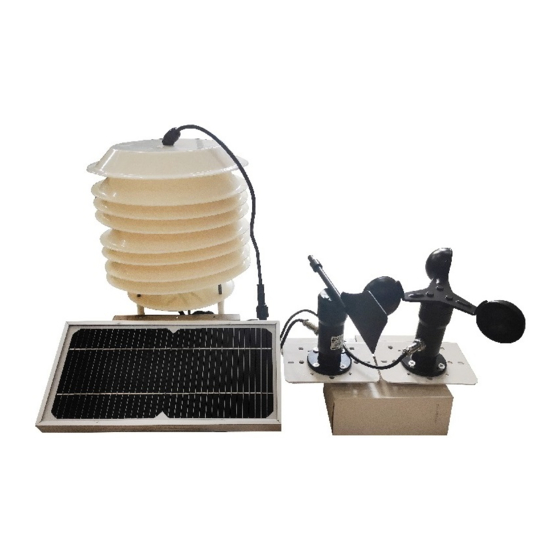

Appearance RA0730Y 3. Main Feature Compatible with LoRaWAN RA0730 and RA0730Y applies DC 12V adapters R72630 applies solar and rechargeable lithium batteries Simple operation and setting Wind speed, wind direction, temperature and humidity detection Adopt SX1276 wireless communication module... -
Page 5: Set Up Instruction
4. Set up Instruction On/Off RA0730 and RA0730Y are connected to DC 12V adapter for power on. Power On R72630 applies solar and rechargeable lithium batteries. Turn On Connect with power on to turn on Restore to Factory Setting Press and hold the function key for 5 seconds till green indicator flashes for 20 times. -
Page 6: Data Report
(6) It would take a while for the sensor to sample and process the collected value after pressing the button, please be patient. The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora Command Resolver... - Page 7 Reserved 0x82 ReportRsp (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) （1） Configure RA0730 device parameter MinTime = 30s, MaxTime = 3600s (3600>30*2+10) Downlink: 0105001E0E100000000000 Device returns: 8105000000000000000000 (configuration success) 8105010000000000000000 (configuration failure) （2）Read RA0730 device parameter Downlink: 0205000000000000000000...
-
Page 8: Installation
6. Installation 6-1 The output value corresponds to wind direction Wind direction The output value North-northeast 0x0000 0x000F Northeast 0x0001 0x000E 0x0000 East-northeast 0x0002 0x000D 0x0001 East 0x0003 East-southeast 0x0004 0x0002 0x000C Southeast 0x0005 South-southeast 0x0006 0x0003 South 0x0007 0x000B South-southwest 0x0008 Southwest... -
Page 9: Installation
6-3 Installation 1． The RA0730 does not have the waterproof function. After the device completes joining the network, please place it indoor. 2． The R72630 has a waterproof function. After the device completes joining the network, please place it outdoors. - Page 10 Range of diameter of post for mounting Ø25~ Ø 50(mm)
-
Page 11: Rechargeable Lithium Battery
6-4 Rechargeable lithium battery R72630 has a battery pack inside. Users can buy and install rechargeable 18650 lithium battery, a total of 3 sections, voltage 3.7V/ every single rechargeable lithium battery, recommended capacity 5000mah. The installation of rechargeable lithium battery steps are as follows: 1: Remove the four screws around battery cover. -
Page 12: Important Maintenance Instruction
7. Important Maintenance Instruction The device is a product with superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits.
