Model：RA0723_R72623_RA0723Y
Wireless PM2.5/Noise/Temperature/Humidity Sensor
Wireless PM2.5 / Noise /
Temperature / Humidity Sensor
RA0723_R72623_RA0723Y
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
Advertisement
Table of Contents
Related Manuals for netvox RA0723
Summary of Contents for netvox RA0723
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.
-
Page 2: Table Of Contents
Table of Content 1.Introduction ................. 2 2.Appearance .................. 2 3.Main Feature ................4 4.Set Up Instruction ................ 4 5.Data Report .................. 6 5.1 Example of ReportDataCmd ..........7 5.2 Example of ConfigureCmd ..........8 6.PM2.5 Sensor Dust Removal ............9 7.Installation ................... -
Page 3: Introduction

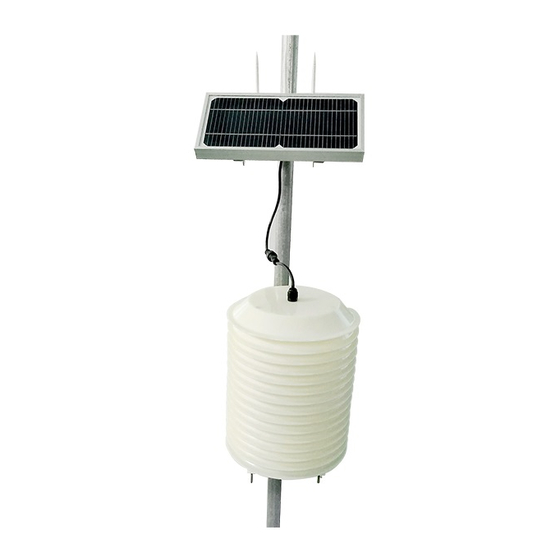

1. Introduction RA0723_R72623_RA0723Y is a ClassA type device based on the LoRaWAN open protocol of Netvox and is compatible with the LoRaWAN protocol. RA0723_R72623_RA0723Y can be connected to the detector of PM2.5, temperature and humidity, and noise. The values collected by the sensor are reported to the corresponding gateway. - Page 4 Solar Panel Battery Pack Waterproof cover Built-in Battery Pack Fig. 2. R72623 shield is equipped with PM2.5, temperature and humidity sensor and noise sensor (subject to the actual object), external solar power supply. Power Cable Fig. 3. RA0723Y shield is equipped with PM2.5, temperature and humidity sensor and noise sensor (subject to the actual object).
-
Page 5: Main Feature
(optional) Applicable to the third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne 4. Set Up Instruction On/Off RA0723 and RA0723Y are connected to DC 12V adapter for power on. Power ON R72623 applies solar and rechargeable lithium batteries. Turn On Connect with power on to turn on. - Page 6 Function Key Restore to the factory setting / Turn off Press and Hold for 5 Seconds The green indicator flashes 20 times: success The green indicator remains off: fail The device is in the network: the green indicator flashes once and the device sends a data report. Press once The device is not in the network: the green indicator remains off.
-
Page 7: Data Report
(6) It would take 35 seconds for the sensor to sample and process the collected value after pressing the button, please be patient. The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora Command Resolver... -
Page 8: Example Of Reportdatacmd
DeviceType Report Type NetvoxPayLoadData Version– 1 byte –0x01——the Version of Netvox LoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The device type is listed in Netvox LoRaWAN Application Device type.doc Report Type – 1 byte –the presentation of the NetvoxPayLoadData，according the device type NetvoxPayLoadData–... -
Page 9: Example Of Configurecmd
Device CmdID NetvoxPayLoadData Config MinTime MaxTime Reserved 0x01 ReportReq (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) Config Status Reserved RA0723 0x81 0x05 ReportRsp (0x00_success) (8Bytes, Fixed 0x00) R72623 0x09 ReadConfig Reserved RA0723Y 0x0D 0x02 ReportReq (9Bytes, Fixed 0x00) -
Page 10: Pm2.5 Sensor Dust Removal
The data may be high because of the internal dust accumulation. 7. Installation RA0723 does not have the waterproof function. After the device completes joining the network, please place it indoor. Please pay attention to the direction when installing the Sensor and keep the pickup facing down R72623 has a waterproof function. - Page 11 (5) Rechargeable lithium battery R72623 has a battery pack inside. Users can buy and install rechargeable 18650 lithium battery, a total of 3 sections, voltage 3.7V/ every single rechargeable lithium battery, recommended capacity 5000mah. The installation of rechargeable lithium battery steps are as follows: 1: Remove the four screws around battery cover.
-
Page 12: Important Maintenance Instruction
8.Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
