VigorAccess User Installation Guide

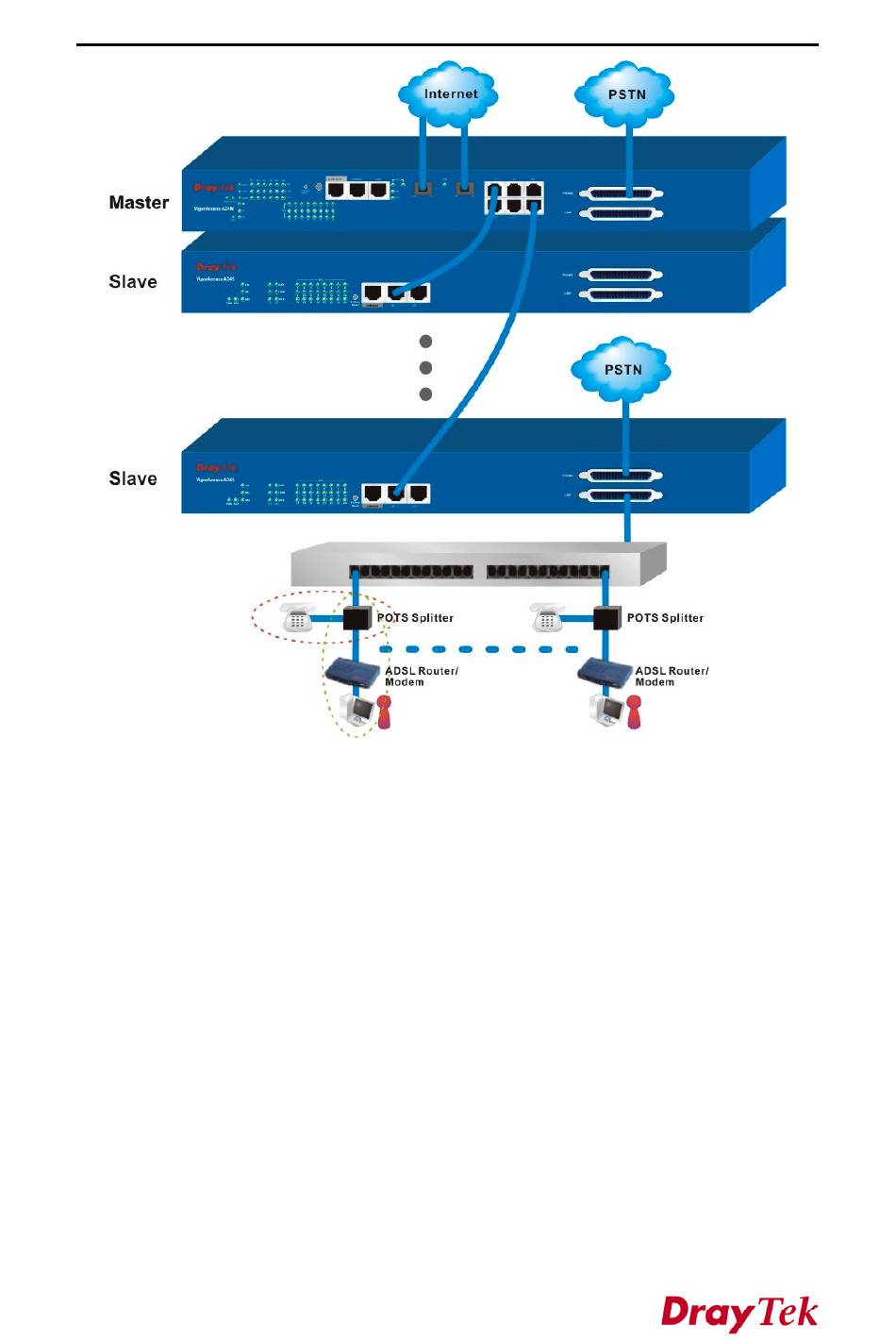

Figure 2-1. IP DSLAM network connection
2.2 IP DSLAM Master Setup
2.2.1 Master Front Panel Connection
All connections are made on the front panel of the IP DSLAM except power
connector. The connections on the front panel of the IP DSLAM are shown in Figure
2-2. There are interfaces on Mater front panel.
Factory Reset – A reset button is used to reset system, and then IPDSLAM will
operate by default configuration.
