1.6.3 Standard 10/100/1000 Base-T Ethernet Interface
Connector
RJ45 jets provide 8P8C 10/100/1000 Base-T Ethernet interfaces. The interface
supports MDI/MDIX auto-detection of either straight or crossover RJ45 cables. These
cables are used on GE interfaces for subtending connection on Master and UP1,
UP2/MGN port on Slave.

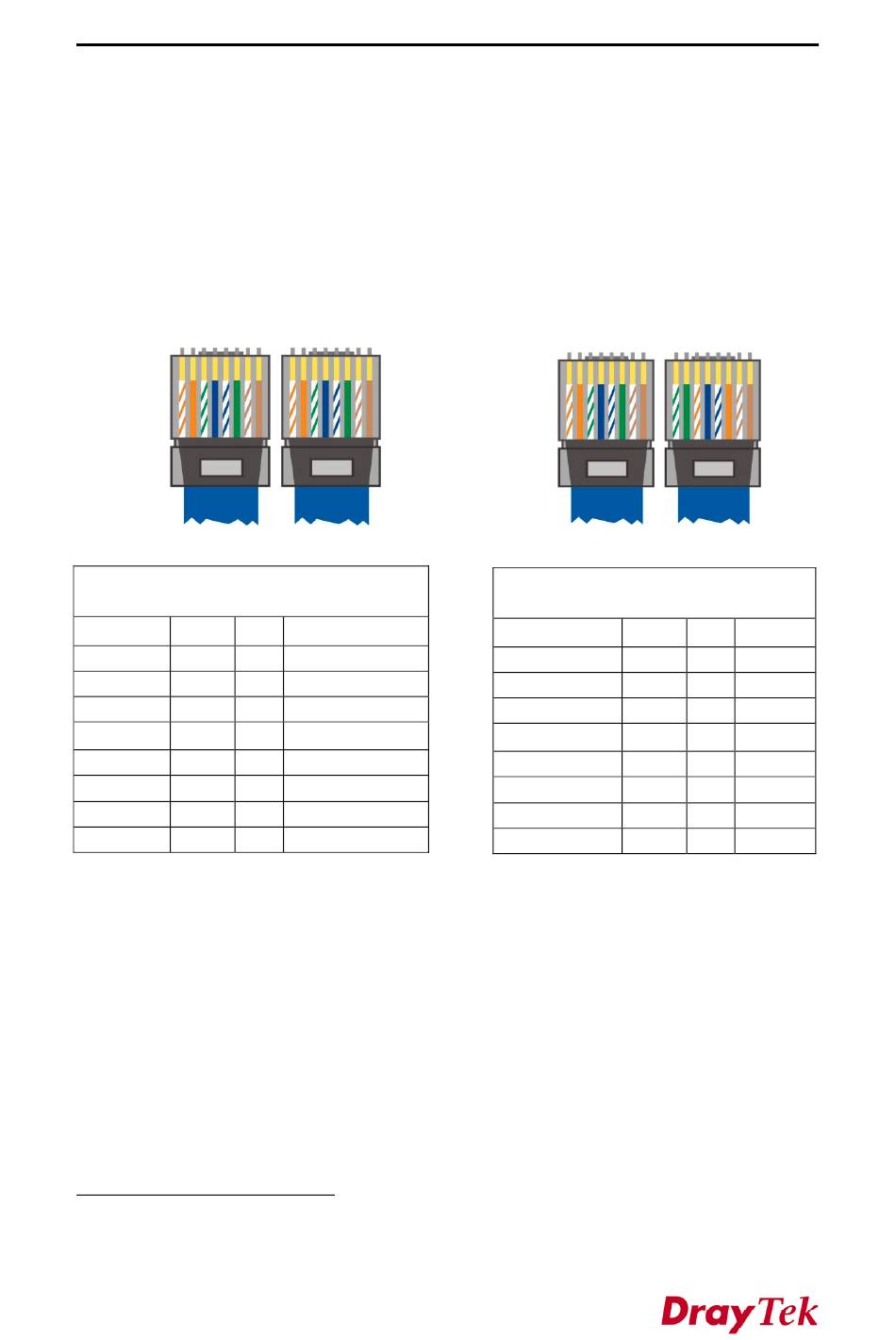

RJ-45 Straight-through Cable Pin-outs
(8P8C)
Signal Pin Pin
TP0+ 1
TP0- 2
TP1+ 3
TP1- 6
TP2+ 4
TP2- 5
TP3+ 7
TP3- 8
Figure 1-17. Applicable on both straight-through and crossover RJ45 (8C8P
1 8C8P means the Ethernet cable with 8 wires connector in 1000M Ethernet physical ports
VigorAccess User Installation Guide
Signal
1 TP0+
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
RJ-45 Crossover Cable Pin-outs
(8P8C)
Signal
TP0+
TP0-
TP1+
TP1-
TP2+
TP2-
TP3+
TP3-
26
Pin Pin Signal
1 1 TP1+
2 2 TP1-
3 3 TP0+
6 6 TP0-
4 4 TP3+
5 5 TP3-
7 7 TP2+
8 8 TP2-
1
) cable
.
