1.6 Connector and Interface Description
1.6.1 The RS232 Connector Description
The RJ45 connection jet is used for CLI commands for system configurations and
controlling functions in the IP DSLAM. The jet is used for initialization of the IP
DSLAM during the preliminary installation. The "management cable", as shown in
Figure 1-15, converts the RJ45 to the RS232 interface. The RJ45 jet connects to a
console interface in the IP DSLAM, while the RS232 DB9 connecting to a console
port on the computer. The default setting of the console port is "baud rate 9600, no
parity, and 8 bit with 1 stop bit (N81)".
The pin-out for this connector is shown in Table 1-1 as follows.
VigorAccess User Installation Guide

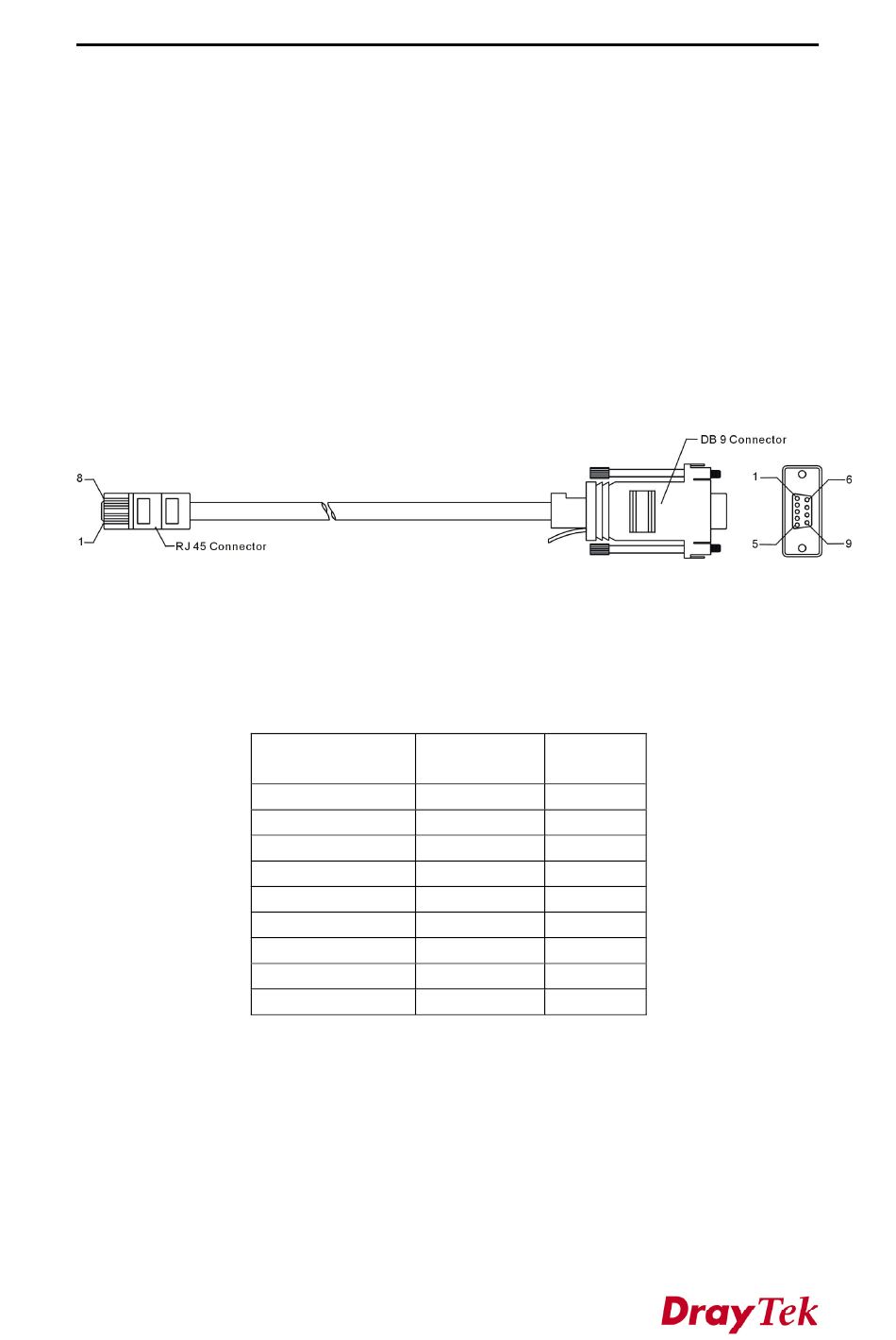

Figure 1-15. Console management cable
Table 1-1. The RS232 adaptor PINOUT
RJ45 DB9
(Female)
No connection 1
3 2
6 3
7 4
5 5
2 6
8 7
1 8
No connection 9
Signal
CD
TD
RD
DTR
GND
DSR
RTS
CTS
RI
