Expert Power Control NET 8x 8210 / 8211
3.2

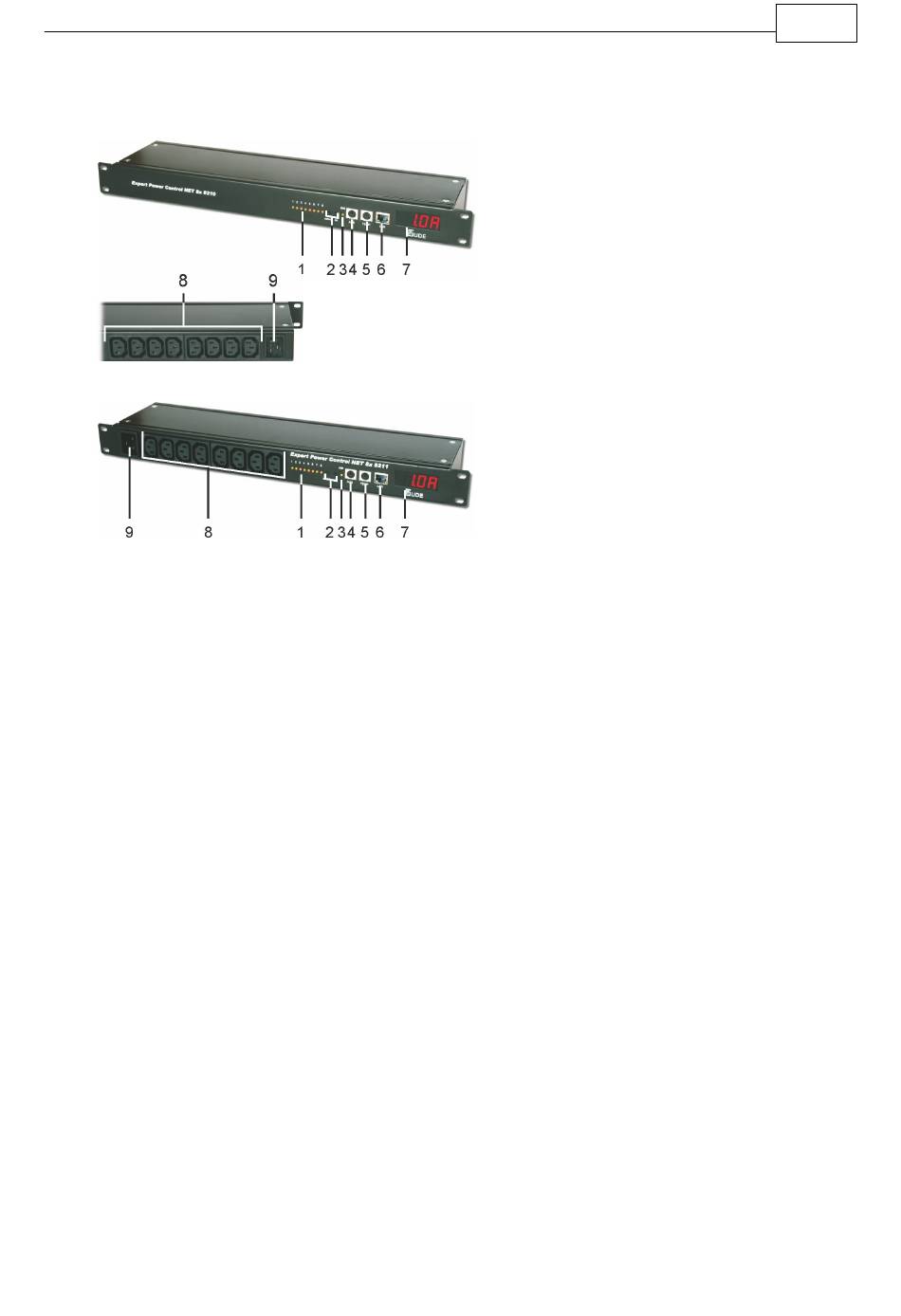

Connections
Connections Expert Power Control NET 8x 8210
Connections Expert Power Control NET 8x 8211
1) Power Port LEDs
2) Buttons "select" and "ok"
3) Status LED
4) Aux connector for serial interface (RS232-PS2 cable) or Sensor
5) TEMP connector for Sensor
6) Ethernet connector (RJ45)
7) Display
8) 8 Power Ports (IEC C13, max. 10A)
9) Power supply (IEC C20, max. 16A)
3.3
Installation
1.) Connect the power supply cable to the power socket at the rear side (Expert Power Control NET 8x 8210) or front side (
Expert Power Control NET 8x 8211 ) of Expert Power Control NET 8x 8210 / 8211 and a socket. Expert Power Control
NET 8x 8210 / 8211 now is booting and shortly after ready for usage.
2.) Plug the Ethernet cable into the connector on the front side of Expert Power Control NET 8x 8210 / 8211 and connect it
to your Ethernet.
3.) Connect the clients to the Power Ports at the rear side (Expert Power Control NET 8x 8210) or front side (Expert Power
Control NET 8x 8211 ) of the device.
7
