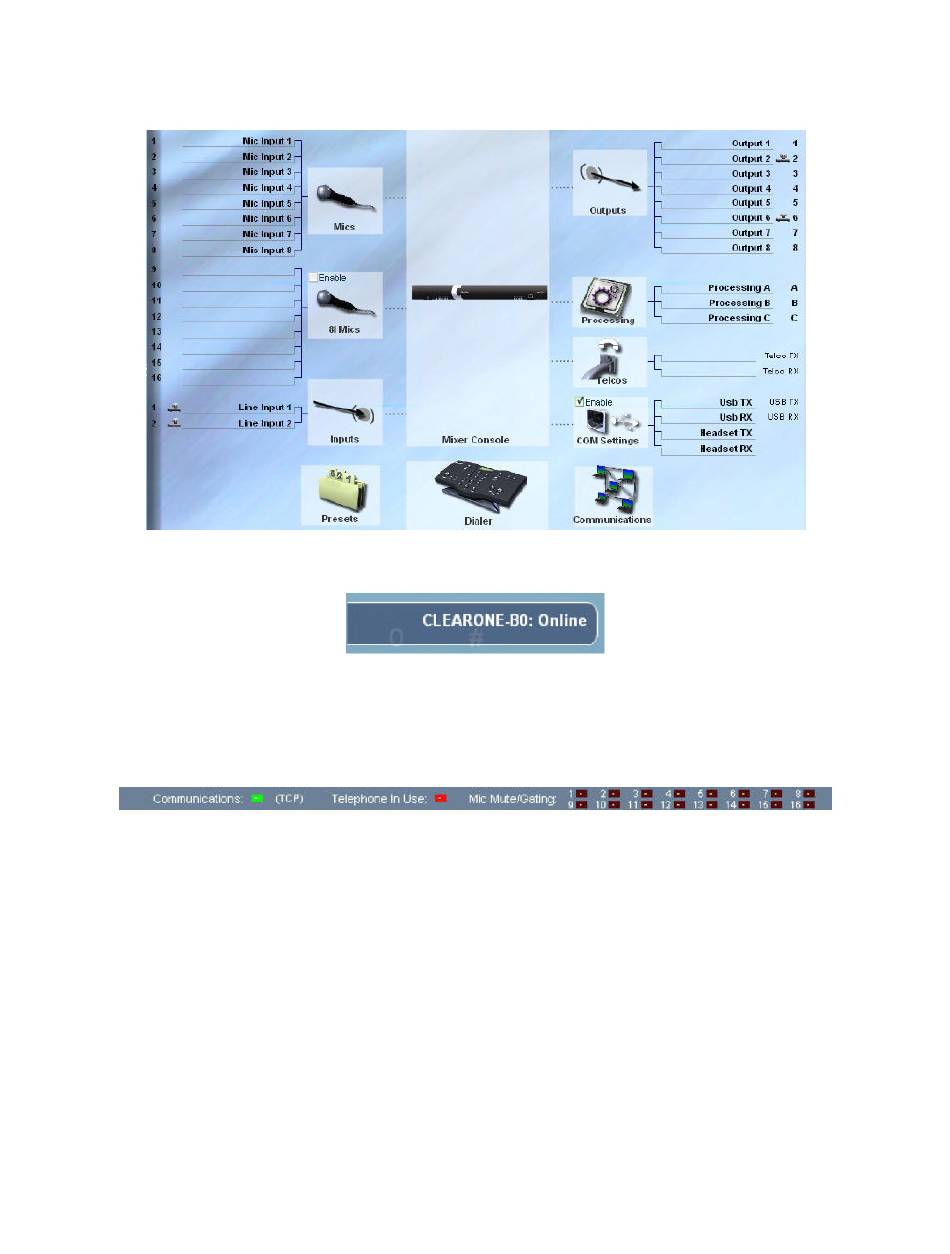

• INTERACT AT Only - COM units are enabled by selecting them from the dropdown boxes (COM Units
are enabled on the INTERACT PRO by selecting the appropriate check box).
o /o i
nline ffline ndiCaTor
• Shows connection status (Online/Offline) and the name of the connected unit.
s i
TaTus ndiCaTors
• Status for Communications: GREEN = Online, YELLOW = Connecting, RED = Offline
• Telephone In Use: RED = NOT In Use, GREEN = In Use
• Mic Mute/Gating: RED = Mute, GREEN = Gated, OFF = Not Gated

Connecting to Units

s C
erial onneCTion
• When you connect to the INTERACT unit with a serial cable, the unit is detected when you start
INTERACT Software and a connection to the unit is established. The name of your unit and the online
status are displayed below the Configuration screen.
n C
eTwork onneCTion
• When the INTERACT software is started, it automatically finds all INTERACT units on the same
subnetwork and displays them in the Connections list. To connect, simply click the unit icon. You will be
prompted to enter the Username and Password. Once a connection is established, the Configuration
screen will appear and the unit name and Online status will be displayed.
usb C
onneCTion
• An INTERACT can be connected via USB to your Windows-based PC. The INTERACT software is
compatible with Microsoft Windows XP , Vista and Windows 7.
Chapter 2: Getting Started 5
