Description of the device

Features

The RGB Studio Beam Driver can control up to 10 LED Compact Studio Beams
• Output: Max. 10X 3W RGB LED Compact Studio Beam
• Output Connector: 5 Pole XLR female
• DMX IN and OUT
• Standalone
• DMX-512
• Stand – alone operation:
• Fixture Settings:

Overview

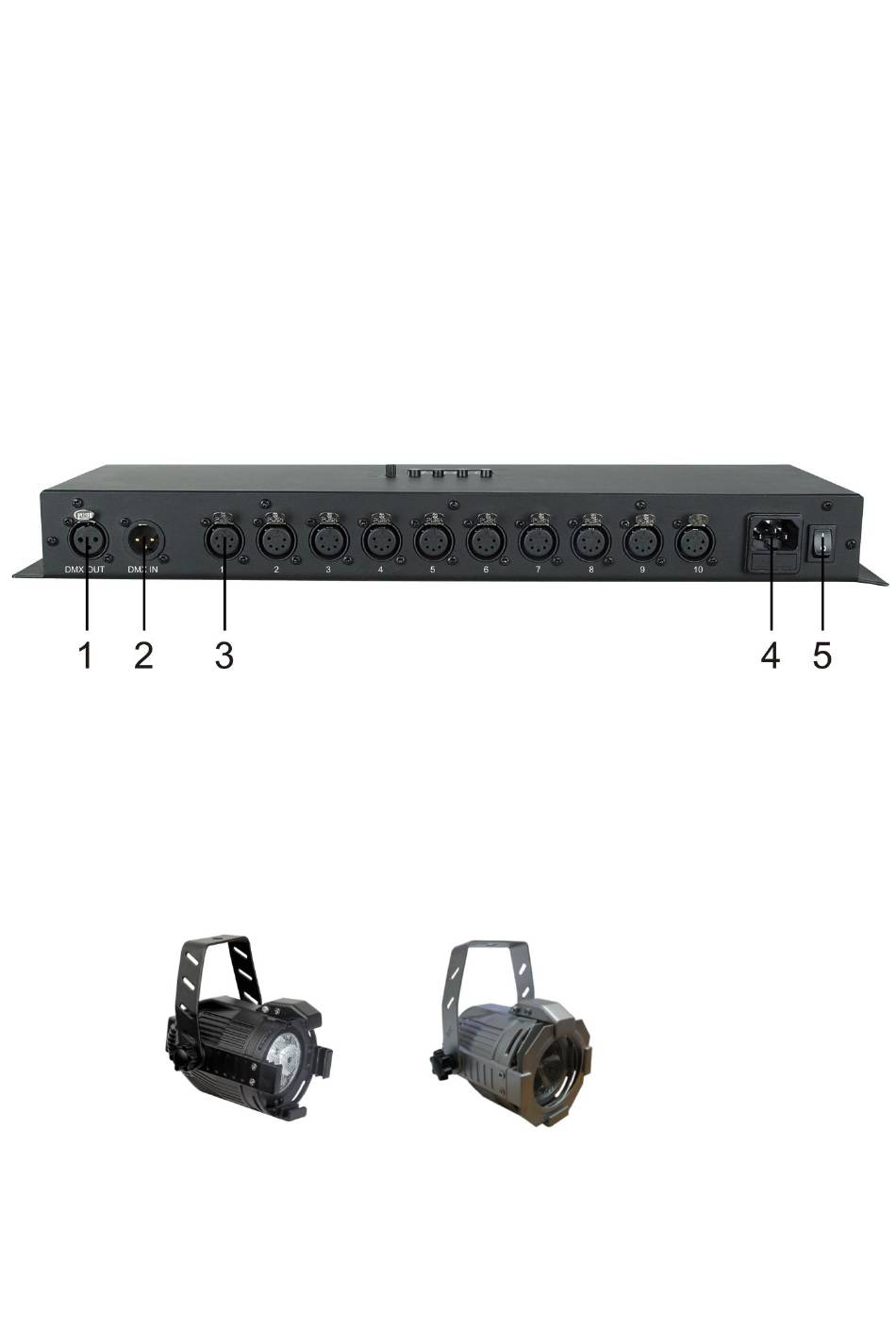

1) 3-pin DMX OUT connector: XLR female socket used to send DMX signals.
2) 3-pin DMX IN connector: XLR male socket used to receive DMX signals.
3) 10X 5-pin connector for RGB Studio Beam
4) IEC Powerconnector + Fuse T3,15A 250V
5) ON/OFF
You can connect a maximum of 10
Showtec LED Compact Studio Beam RGB Black incl. filterframe (42474)
Showtec LED Compact Studio Beam RGB Silver incl. filterframe (42475)

Installation

Remove all packing materials from the RGB Studio Beam Driver. Check that all foam and plastic padding
is removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Master/Slave.
Manual color mix, dimmer speed
16 Standalone programs
Music Controlled with Speed adjustment
Mode-1: 3 Channels DMX
Mode-2: 5 Channels DMX
Mode-3: 6 Channels DMX
Mode-4: 15 Channels DMX
Mode-5: 30 Channels DMX
LED Compact Studio Beams to the controller.
42474 42475
