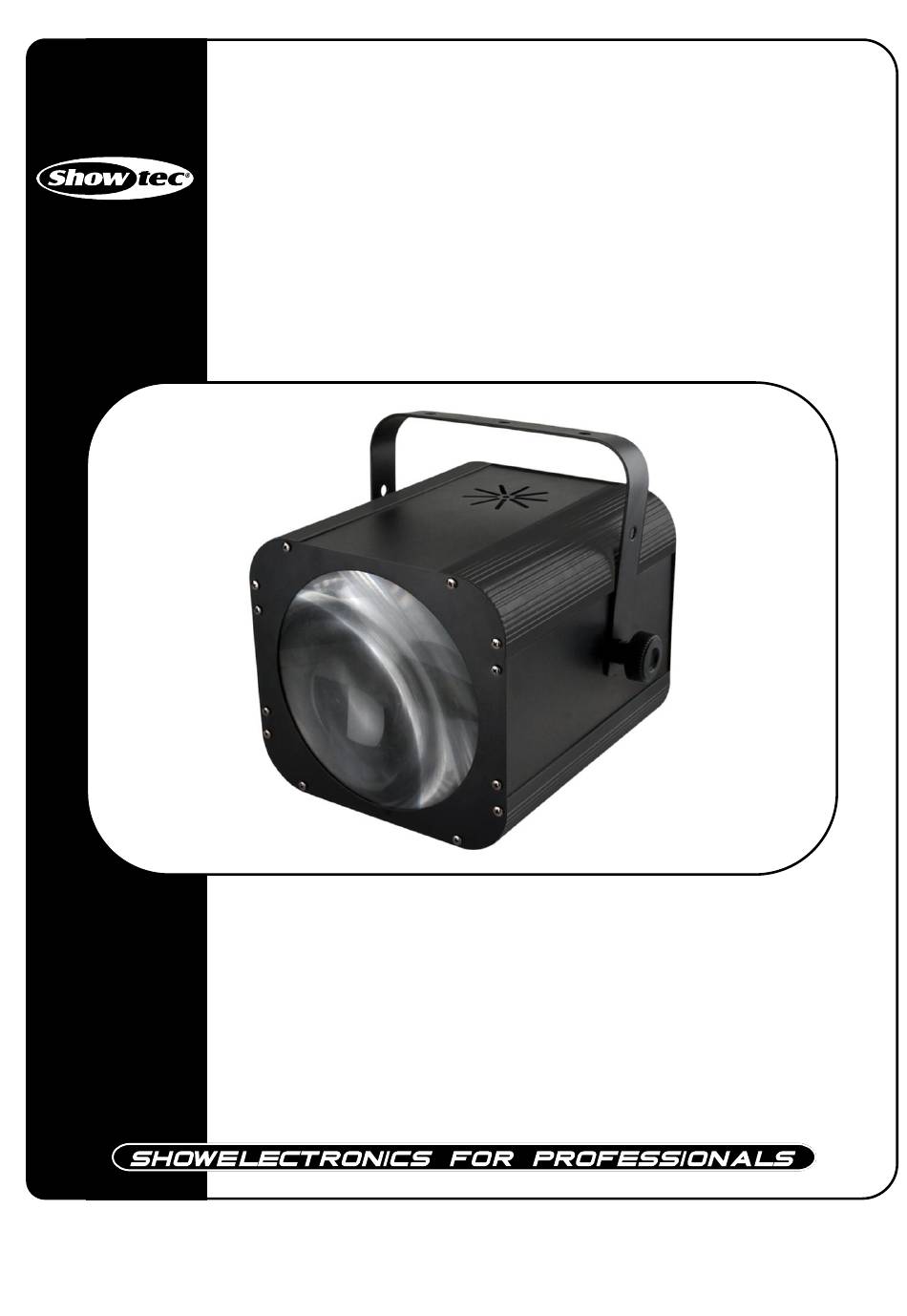

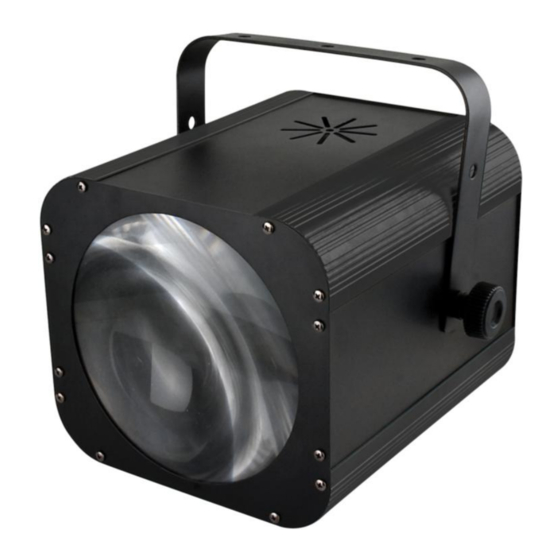

  • Page 1 LED Roto Flower ORDERCODE 43032...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

  • Page 3: Table Of Contents

    Showtec Showtec LED Roto Flower Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.………………………………………………………………………………………….. Rigging.………………………………………………………………………………………………………………….. Return Procedure……………………………………………………………………..........Claims……………………………………………………………………..............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……….……….………….. Backside…………………………………………………...…...….……………….…………………...….………….. Installation................…...…………………………………….…………….. Set Up and Operation..............……..………………………………………….. Control Modes…………………………………………………………………………………………………………. Built-in Programs 1-7, All LEDs ON, Automatic………………..…………………………………………….. Sound Control Mode….………………………………………………………………………………………… Master/Slave Mode…….………………………………………………………………………………………..

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • LED Roto Flower with cable 1,5m and hanging-bracket. •User manual LED Expected Lifespan LEDs gradually decline in brightness over time.
  • Page 5 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the LED Roto Flower. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.

  • Page 6: Operating Determinations

    Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Roto Flower is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the LED Roto Flower, with the mounting-bracket, to the trussing system.

  • Page 7: Return Procedure

    Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

  • Page 8: Description

    Description of the device Features The Showtec LED Roto Flower is a light effect with high output and great effects. • LEDS: 152 RGB high intensity 5mm LEDs (Red 60, Green 66, Blue 36) • Beam angle: 15° • 6 DMX channels •...

  • Page 9: Installation

    Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the LED Roto Flower. Check that all foam and plastic padding is removed.

  • Page 10: Sound Control Mode

    When the LED Roto Flower is not connected by a DMX-cable, it functions as a stand-alone device. Dipswitch #10 must always be set to ON for manual control. The LED Roto Flower will automatically change its color to the beat of the music. With the Audio sensitivity control you can adjust its music-sensitivity.
  • Page 11 Multiple LED Roto Flowers (DMX control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the LED Roto Flower. The pins: Earth Signal - Signal + 3.

  • Page 12: Dmx Mode

    (DMX Dip Switches "ON") for each unit. Flip appropriate DMX dipswitches on each unit. Example: 1. If you want to give an LED Roto Flower DMX address133, you first have to find the number 133 in the DMX Chart. (See page 11) 2.

  • Page 14: Dmx Channels

    0-255 From black to brightest Maintenance The Showtec LED Roto Flower requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth.

  • Page 15: Replacing The Fuse

    Response: Suspect three potential problem areas: the power supply, the lamp, the fuse. 1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The LEDs. Return the LED Roto Flower to your Showtec dealer. 3. The fuse. Replace the fuse. See page 13 for replacing the fuse.

  • Page 16: Product Specifications

    Product Specification Model: Showtec LED Roto Flower Power: 240V-50Hz (CE) LEDS: 152 RGB high intensity 5mm LEDs (Red 60, Green 66, Blue 36) Beam angle: 15° 6 DMX channels Addressing by dipswitches Operation mode: DMX512, master/slave, Sound-controlled, auto trigger music-controlled via built-in microphone...
