Control Panels In A Hornet+ Network; Control Panels In An Ip Network - INIM PREVIDIA COMPACT Installation Manual

Installation manual
Supply voltage
Consumption @
during mains failure
27.6V
Operating temperature
Dimensions
Weight

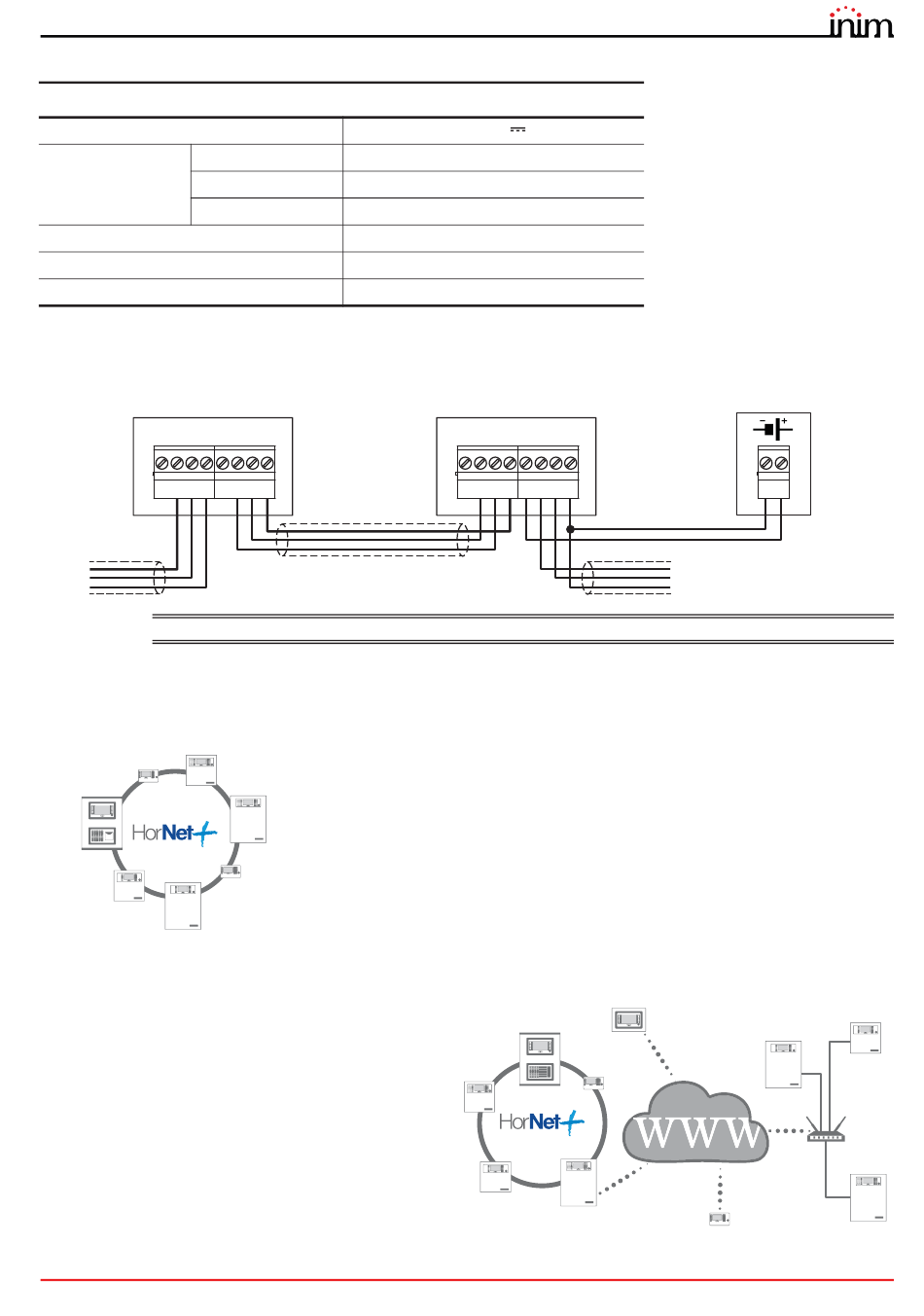

The repeaters can be connected to the system via the Hornet+ network (paragraph 3.7 Connecting the Hornet+
network) or via a TCP-IP connection and can also be associated with Previdia Max control panels.
If necessary, it is possible to power the repeater using an external power supply module.
Previdia Compact
1 2 3 4
-
+24 A+ A-
EN54:
The power-supply unit employed must be EN54-4 standard compliant.
2.6

Control panels in a Hornet+ network

2.7

Control Panels in an IP network

Several Previdia-Max and Previdia Compact control
panels or more Hornet+ control panel networks can be
connected to each other via a TCP-IP connection.
Each node in a connection of this type is identified as a
"cluster". Each cluster can consist of a single control
panel, a Hornet+ network of control panels or a
repeater.
For further information regarding the method used for
connecting control panels in a network refer to the
Networking Guide available at www.inim.biz
General description
Technical specifications
stand-by
maximum
5 6 7 8
-
+24 B+ B-
In order to enlarge the installation, it is possible to connect several Previdia Max
and Previdia Compact control panels (with a maximum of 48 points including
control panels and repeaters) thus creating an expanded system (Hornet+
network).
Each model of the Previdia Compact control panel provides two RS485 ports for
the ring connection (for details on the wiring refer to paragraph 3.7 Connecting
the Hornet+ network).
For further information regarding the method used for connecting control
panels in a network refer to the Previdia Networking Guide available at
www.inim.biz
19-30 V
110mA
80mA
130mA
from -5°C to +40°C
210 x 132 x 32mm
330g
Repeater
Previdia Compact REP
1 2 3 4 5 6 7 8
- -
+24 A+ A- +24 B+ B-
24V
- +
LAN
Internet
Router
