INIM PREVIDIA COMPACT Installation Manual page 10

[A]
Touchscreen display
[B]
Status LED
[C]
LED and function button
LED and multiple-alarm
[D]
button
[E]
Access-key slot
[F] Buzzer
[G]
MicroSD card holder
[H]
Reset button
Button to reset default
[I]
settings (factory settings)
Programming jumper
[J]
connector
[K]
Ethernet port
[L]
Mini USB port
Connector for PREVIDIA-
[M]
C-DIAL board
Support for the
[N]
motherboard
[O] Support anchor screw
[P]
Terminal board
[Q]
Power-supply terminals
[R]
Earthing point
[S]
Frontplate earth wire
[T] Battery wires
Thermal probe for
[U]
batteries
[V] Cable entry
Locations for the
[W]
mounting screws of the
optional plate
Mounting screw
[X]
locations
Locations for the
[Y]
frontplate screws
[Z]
Battery housing
10
Y
X
O
N
L
O
W
V
Z
X
Y

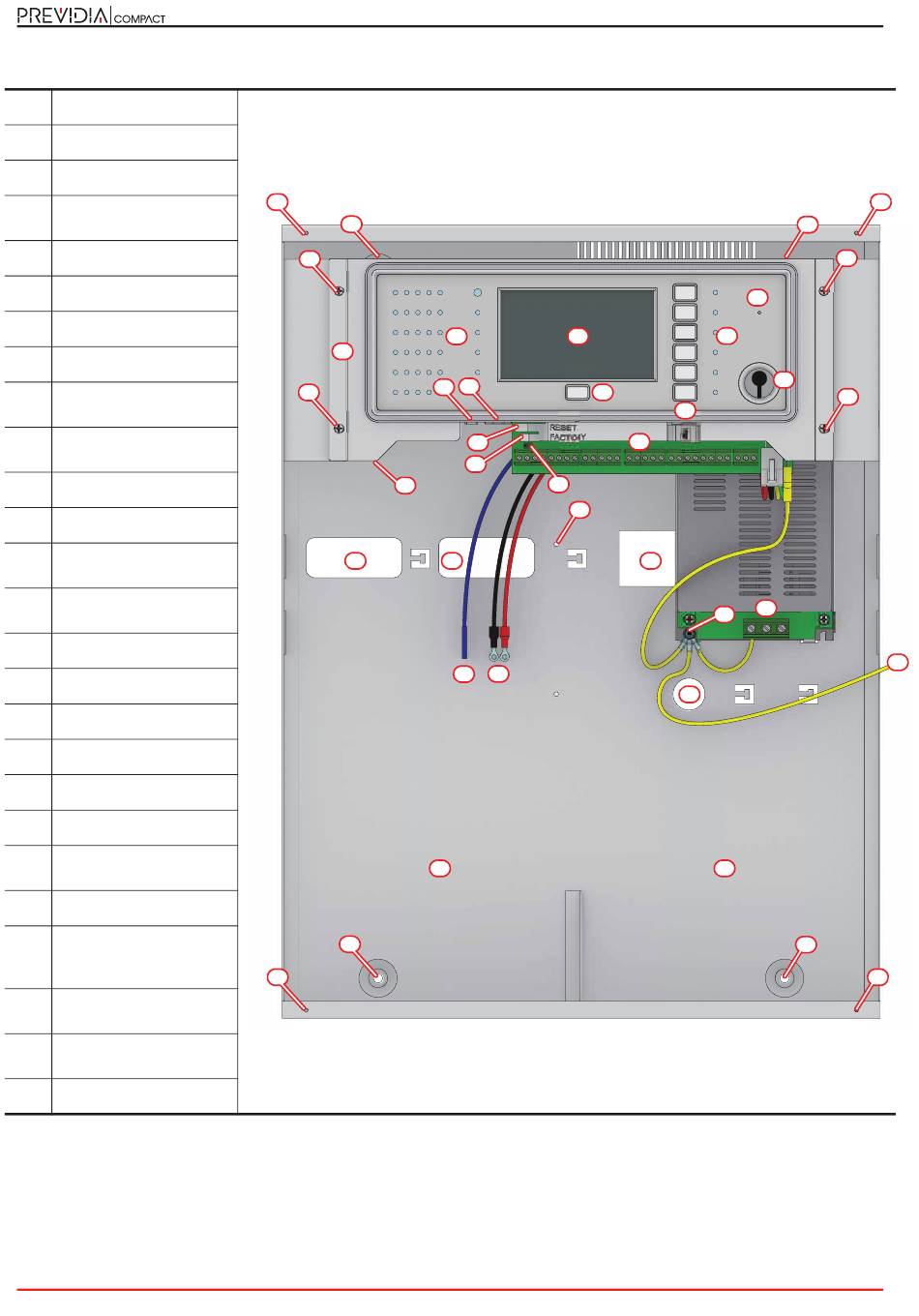

Previdia Compact in large cabinet
