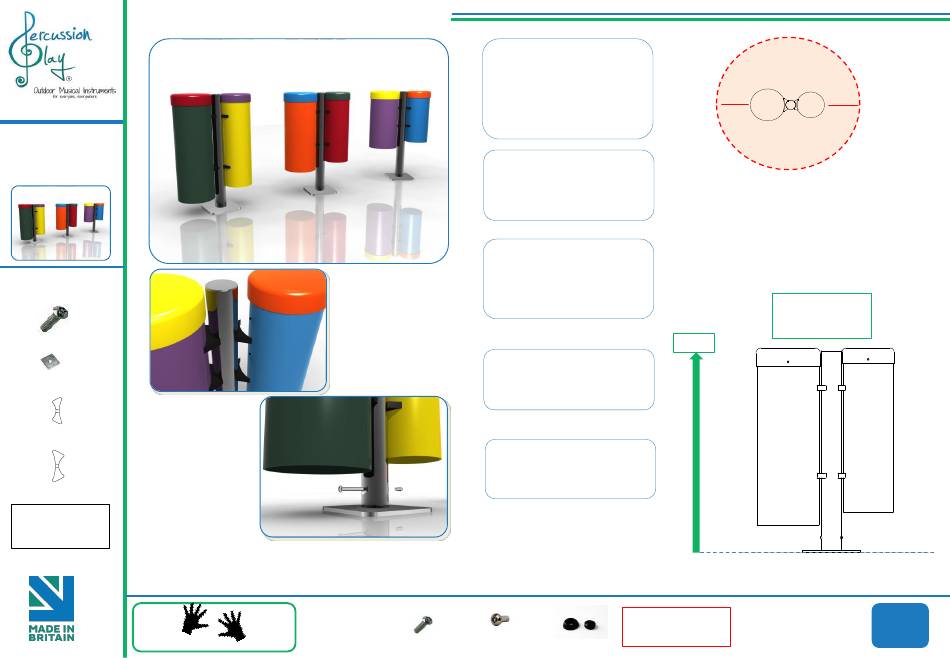

Percussion Play PPCONG Installation Instructions

Installation Instructions

Surface Fixed

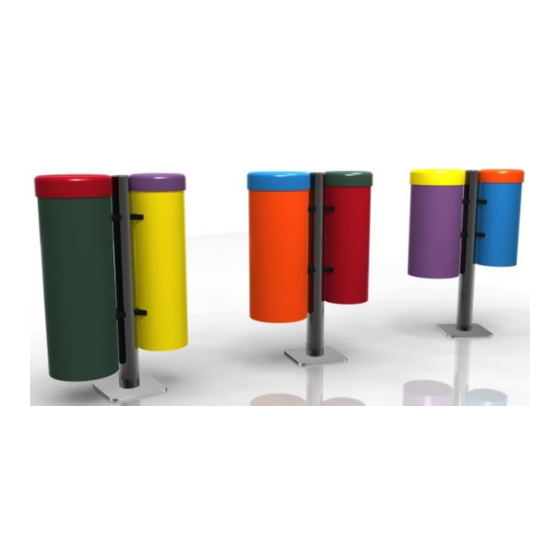

Congas
Page 1 of 2
Instrument
Components:
x4
M10x30 Security Screw
x4
M10x50x3 Square washer
x2
PU 200 Mount
x2
PU 250 Mount
Metric Conversion:
800mm/ 31"
1.5m/ 59"
Weight of heaviest part
Weight of heaviest part
Weight of heaviest part
Played with hands
BS EN 1176
(1.1)
(1.2)
3.8kg (Large drum Small Congas)
4.5kg (Large drum Medium Congas)
5.2kg (Large drum Large Congas)
Surface Fix
Components:
M10x70 Security Screw
1. Attach the steel leg to each
of the congas with the
M10x30 security screws,
square washers and PU
mounts. (1.1) (See Assembly
Guide)
2. Attach Surface Fixing posts to
legs(1.2) (See Ground Fix Post
Installation Sheet)
3.Locate Plate in desired
location and mark holes to fix
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
5. Make sure all fixings are
covered and secure using
cover caps provided
x1 x4
x1
M10 Barrel Nut
2 Part Cover Cap
1.5m
Small – 800mm
Medium – 800mm
Large- 800mm
S,M,L
Ground Surface
Spares available form
Ground Anchors
percussionplay.com
or from your
not supplied
local distributor
Install Instrument
1.5m
with 1.5m free space
(from widest point)
around it.
14.8 Kg
15 Kg
20 Kg
