Spectrum Industries 55396 Assembly Instructions

Assembly Instructions Assembly Instructions

Important

Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts
or accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0134543
L-bracket
(4) 055699
1/4" x 1-1/4" Tapcon Hex
(For concrete walls)

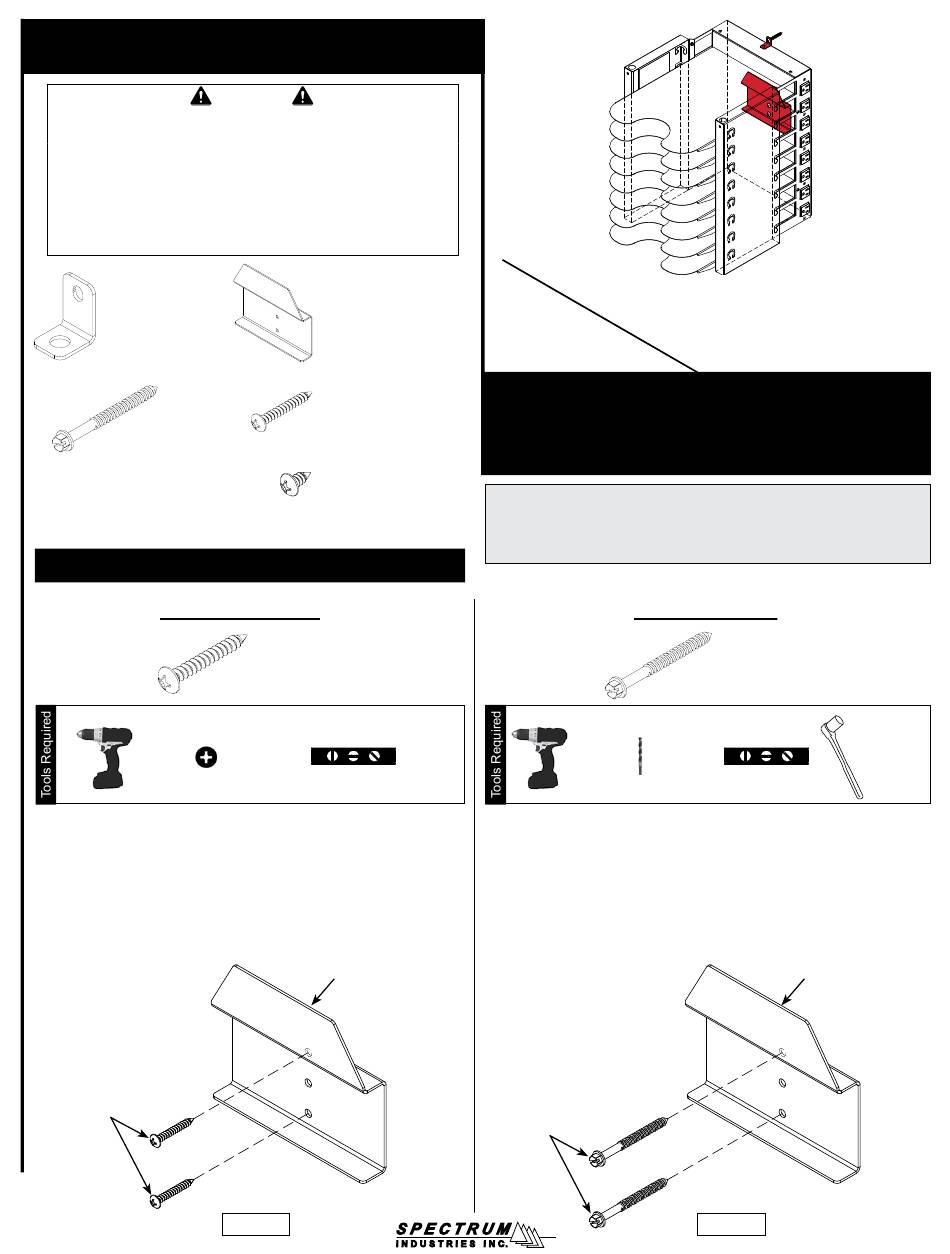

1. Install wall hanger bracket

Wood stud wall
Drill
1. Locate stud in wall. Position the wall hanger bracket at the
preferred height.
2. Level the bracket.
3. Using a drill with a Phillips driver, install the wall hanger bracket
onto the wall with (2) #14 x 1-3/4" PHSM screws. Figure 1.1.
Tighten securely.
(2) #14 x
1-3/4" PHSM
(1) 0134531
Wall hanger bracket
(4) 0101381
#14 x 1-3/4" PHSM screw
(for wood stud walls)
(1) 0190174
#8 x 3/8" PHSM screw
(2) 0101381
#14 x 1-3/4" PHSM
Phillips
driver
Wall hanger bracket
Figure 1.1
for Collectiv8
• (1) 55396 kit will attach one unit to a wall
• Fasteners included for concrete wall applications
• To fully comply with ADA guidelines, it's recommended the unit be hung
above base cabinets or other permanent structure that extends to the floor
Level Hammer
drill
1. Position the wall hanger bracket at the preferred location and
height on the wall.
2. Level the bracket.
3. Mark the (2) mounting hole locations onto the wall.
4. Using a hammer drill with 3/16" masonry drill bit, drill into the
wall at the (2) marked locations. (Approximately 1-1/4"D).
5. Install the wall hanger bracket with (2) 1/4" x 1-1/4" Tapcon
fasteners. Figure 1.2. Tighten securely.
W a
l l
(2) 1/4" x 1-1/4"
Tapcon Hex screw
Wall Hanging Kit
™
Charging Pillar
55396
Concrete wall
(2) 055699
1/4" x 1-1/4" Tapcon
Hex screw
3/16"
Masonry
drill bit Level
Wall hanger bracket
Figure 1.2
W a
l l
Ratcheting
wrench
with 5/16"
socket
W a
l l
0190405 Page 1 of 2
