Command access CYLP-UL-M-KIT Installation Instructions

Field-installable motorized latch-pullback kit for the corbin 4000/5000 and yale 7000 series exit devices
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
I N S T A L L A T I O N I N S T R U C T I O N S
The Command Access CYLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Corbin
B.
A.
K i t I ncl u de s
A.
2 - Phillips screws
B.
2 - Hex screws
C.
1 - Motor Mount w/ MM4 series module
D.
1 - Acme Link Assembly
E.
1 - 6' lead
F.
1 - 1/16" Hex Wrench
U.S. Customer Support
1-888-622-2377
CYLP-UL-M-KIT
4000/5000 and Yale 7000 series exit devices
C.
D.
Installation Video
Scan or Click
Visit our website for more details
www.CommandAccess.com
E.
Too ls R e qu i re d
•
Phillips screw driver
Canada Customer Support
1-855-823-3002
F.
1
Doc # 20092_C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYLP-UL-M-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for Command access CYLP-UL-M-KIT

Summary of Contents for Command access CYLP-UL-M-KIT

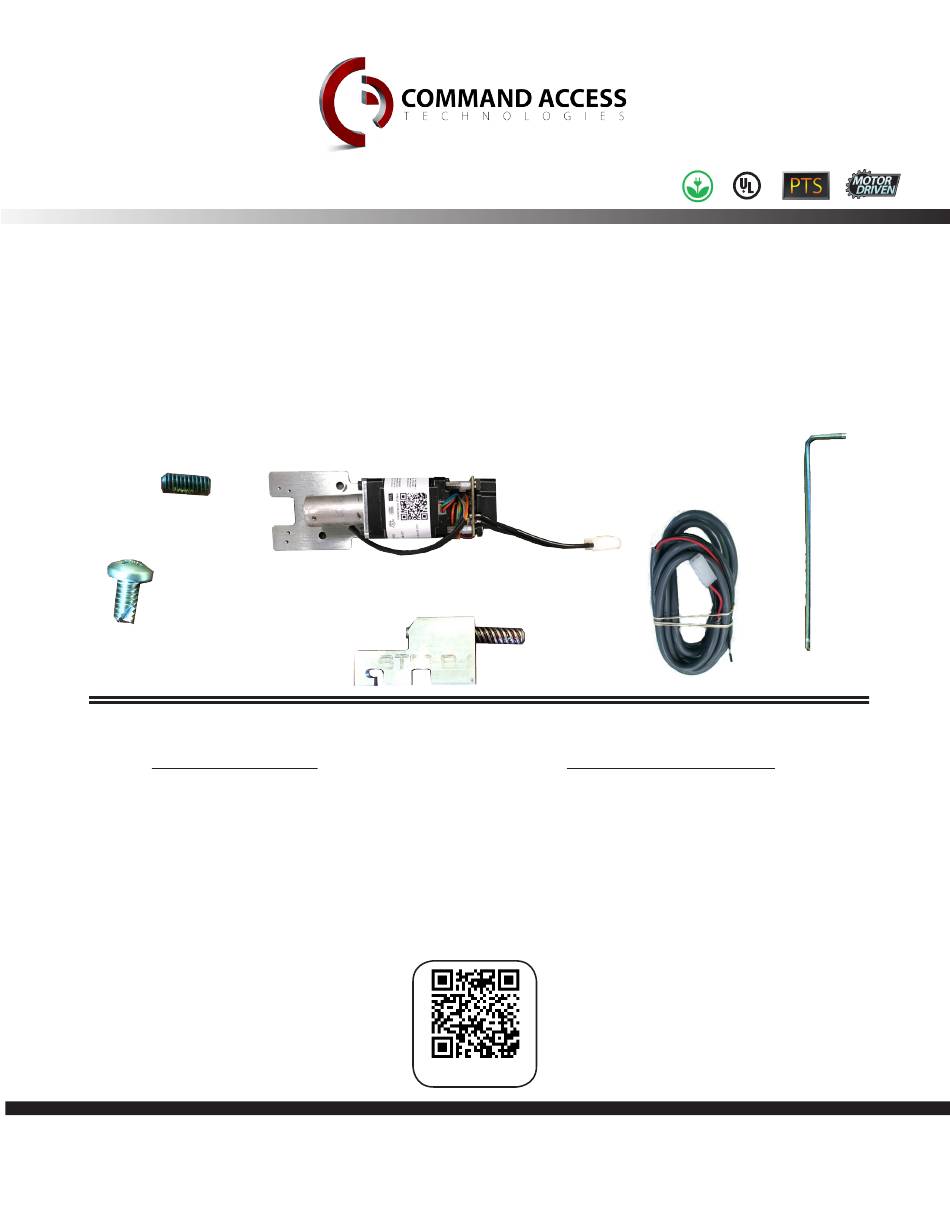

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S The Command Access CYLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Corbin 4000/5000 and Yale 7000 series exit devices...
  • Page 2 T E C H N I C A L I N F O R M A T I O N pecificationS • Input Voltage: 24VDC +/- 10% MM4 Switches • Average Latch Retraction Current: 1 Amp • Average Holding Current: 170 mA •...
  • Page 3 STEP 1 - Disassemble Exit Device A. Remove End Cap & Filler Plate B. If dogging is present remove by taking out 2 screws STEP 2 - Installing Kit A. Attach Acme link assembly to back of the activating bracket. Activating bracket...
  • Page 4 Refer to this picture for next 2 steps B. Using Hex wrench supplied tighten hex screw #1 to secure assembly to the device. C. Using 1/16” Hex wrench supplied tighten hex screw #2 to lift assembly block until it’s level. Acme Thread D.
  • Page 5 F. Attach Phillips screws provided to secure motor mount to device E. Attach 6’ lead to MM3 E. Slide the filler plate back onto the device etting Step 1 Press the device push pad to the desired setting. (this can be fully depressed or less than fully depressed).
