Appendix - Eneo VMC-17LCD-OPC3 Installation And User Manual

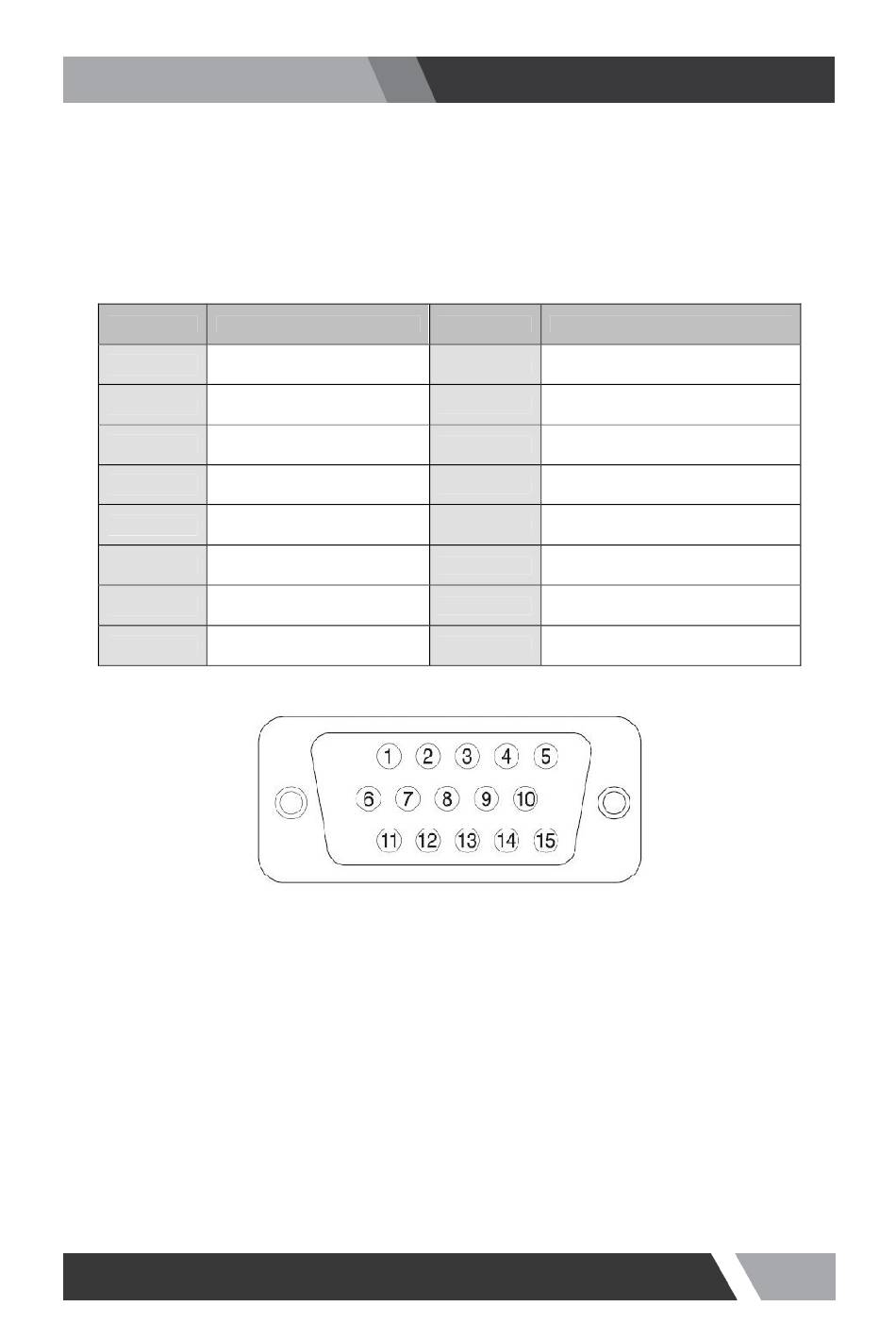

4.1 D-SUB Connector PIN Assignment
PIN NO. PIN Name
1
RED VIDEO
2
GREEN VIDEO
3
BLUE VIDEO
4
GROUND
5
GROUND
6
RED GROUND
7
GREEN GROUND
8
BLUE GROUND

APPENDIX

PIN NO.
9
10
11
12
13
14
15
Installation and User's Guide
PIN Name
NC
SIGNAL CABLE DETECT
GROUND
SDA (for DDC)
H-SYNC
V-SYNC
SCL (for DDC)
pg14
