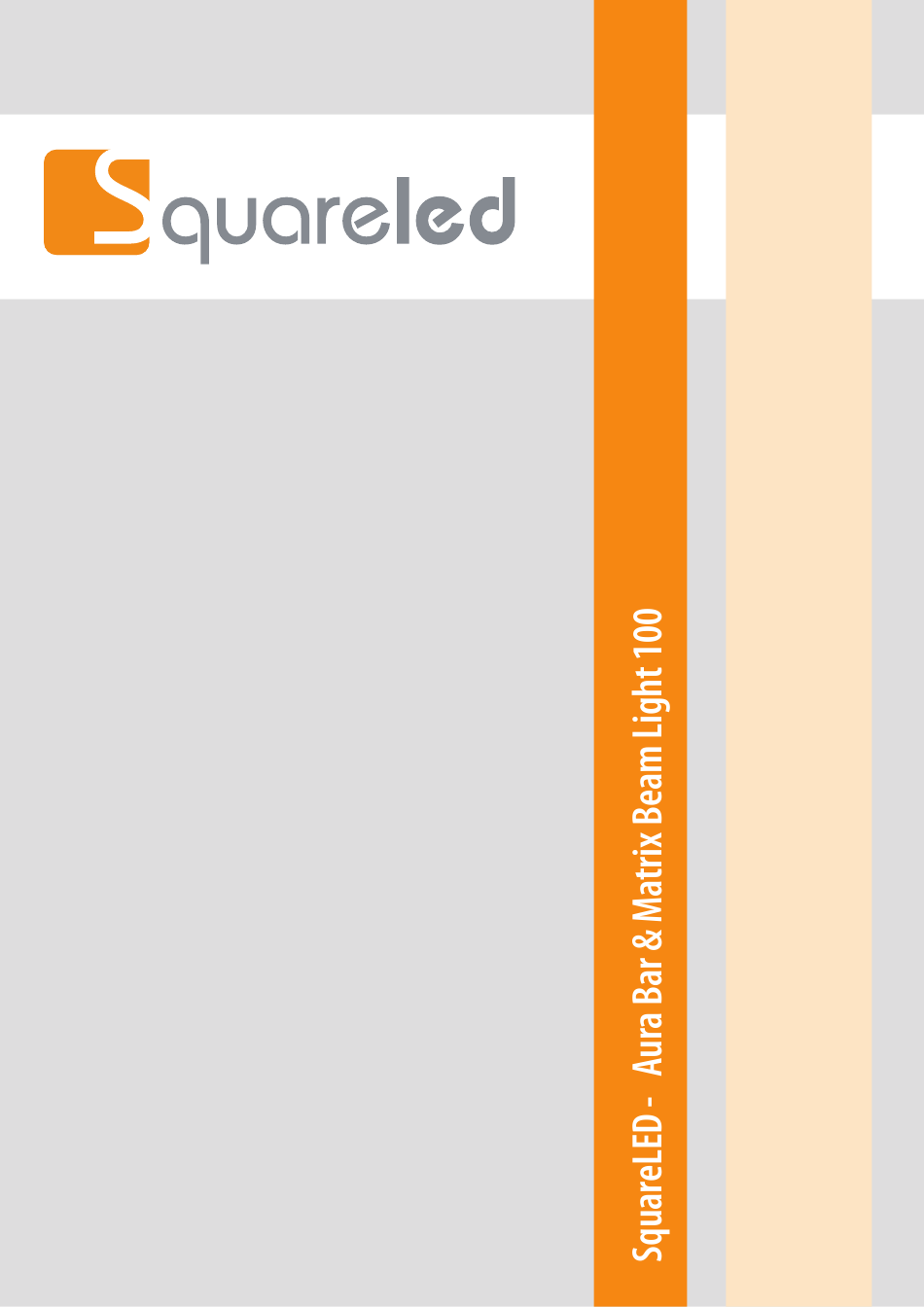

Squareled Aura Bar & Matrix Beam Light 100 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aura Bar & Matrix Beam Light 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Squareled Aura Bar & Matrix Beam Light 100

Summary of Contents for Squareled Aura Bar & Matrix Beam Light 100

  • Page 2: Safety Instructions

    Manual | Aura Bar & Matrix Beam Light 100 1. SAFETY INSTRUCTIONS   Please read these instructions carefully they include the important information about the installation usage and maintenance of this products   • Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.

  • Page 3: Technical Specifications

    Manual | Aura Bar & Matrix Beam Light 100 2. Technical Specifications • DMX 1/2/4/12/14/16 channels switchable. • Smooth 0~100% dimming and variable strobe speeds. • Three operation modes: DMX, Mater/Slave mode, Sound Active. • Ideal for discotheques, clubs, bars, parties, Mobile DJs, ect. •...

  • Page 4: How To Set The Unit

    Manual | Aura Bar & Matrix Beam Light 100 4. How to set the unit   4.1 Rear Panel • 1 - Display: To show the various menus and the selected functions • 3 - Button: To select the programming MENU functions with short press.
  • Page 5 Manual | Aura Bar & Matrix Beam Light 100 Master Slave Mode Slave 1- Slave 15 Show Mode Show0~Show12 Manual Show Mode-C Show0~Show4 Manual Mode Dimmer 0 - 255 Strobe 0 - 255 Sound mode Sound State On - Off Sound Sense Sound sense 0-100% Blackout...
  • Page 6 Manual | Aura Bar & Matrix Beam Light 100 Slave Mode Press the MENU button up to when the Slave Mode is shown on the display. Pressing the ENTER button. Use the DOWN and UP button to select the (slave 1) or (Slave 2) … or (Slave 15)mode. Once selected, press the ENTER button to setup or automatically exit menu mode without any change after 7 seconds.
  • Page 7 Manual | Aura Bar & Matrix Beam Light 100 Blackout Mode Press the MENU button up to when the Blackout Mode is shown on the display. Pressing the ENTER button, Use the DOWN and UP button to select the yes (blackout) or no (normal). Once selected, press the ENTER button to setup or automatically exit menu mode without any change after 7 seconds.

  • Page 8: How To Control The Unit

    Manual | Aura Bar & Matrix Beam Light 100 5. How To Control The Unit You can operate the unit in three ways: 1. By master/slave built-in preprogram function 2. By easy controller 3. By DMX controller No need to turn the unit off when you change the DMX address, as new DMX address setting will be affected at once.
  • Page 9 Manual | Aura Bar & Matrix Beam Light 100 4-CH Mode warm white 000-107 Strobe 108-255 Strobe 000-255 0% - 100% Green 000-255 0% - 100% Blue 000-255 0% - 100% 5-CH Mode Dimmer 000-255 0% - 100% Strobe 000-255 0% - 100% 000-255 0% - 100%...
  • Page 10 Manual | Aura Bar & Matrix Beam Light 100 24-CH Mode CH1 - CH12 Warm white 000-255 0% - 100% CH13 000-255 0% - 100% CH14 Green 000-255 0% - 100% CH15 Blue 000-255 0% - 100% CH16 000-255 0% - 100% CH17 Green 000-255...
  • Page 11 Manual | Aura Bar & Matrix Beam Light 100 CH22 Green 000-255 0% - 100% CH23 Blue 000-255 0% - 100% CH24 000-255 0% - 100% CH25 Green 000-255 0% - 100% CH26 Blue 000-255 0% - 100% 28-CH Mode CH1 - CH12 Warm white 000-255...

  • Page 12: Dmx512 Connections

    Manual | Aura Bar & Matrix Beam Light 100 7. DMX512 Connections mode connection • Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system.

  • Page 13: Fixture Cleaning

    Manual | Aura Bar & Matrix Beam Light 100 B. Not responding to DMX controller • DMX LED should be on. If not, check DMX connectors, cables to see if link properly. • If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. •...
  • Page 14 Manual | Aura Bar & Matrix Beam Light 100 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
