1.3 DISPLAY

Each operation has an associated icon
Icon: Meaning:
You are online
EXT You are in external communication
INT You are in internal communication
New numbers in call list
Indicate answered call
Indicate unanswered call
Hands free mode activated (only B3501)
You are opening your address book.
You are in the menu.
rechargeable battery level indicator
1 segment: weak, 2 segments: medium, 3 segments:
full.
The antenna indicates the quality of reception.
The antenna flashes when the handset is not
registered on the base.
Handset keypad locked
or Indicates that the displayed number is longer than the screen (12 digits)
or Possible scroll direction in the menu
1.3.1 Standby display
In stanby mode, the display shows the handset name and the handset number:
C350x HS1

1.4 HANDSET INDICATOR (LED)

The handset LED has following function:
• ON when the external line is busy
• OFF when all handset are in stanby mode
• Flashes on all handset when there is an incoming call
Topcom Butler B3500/3501 Multi Handset

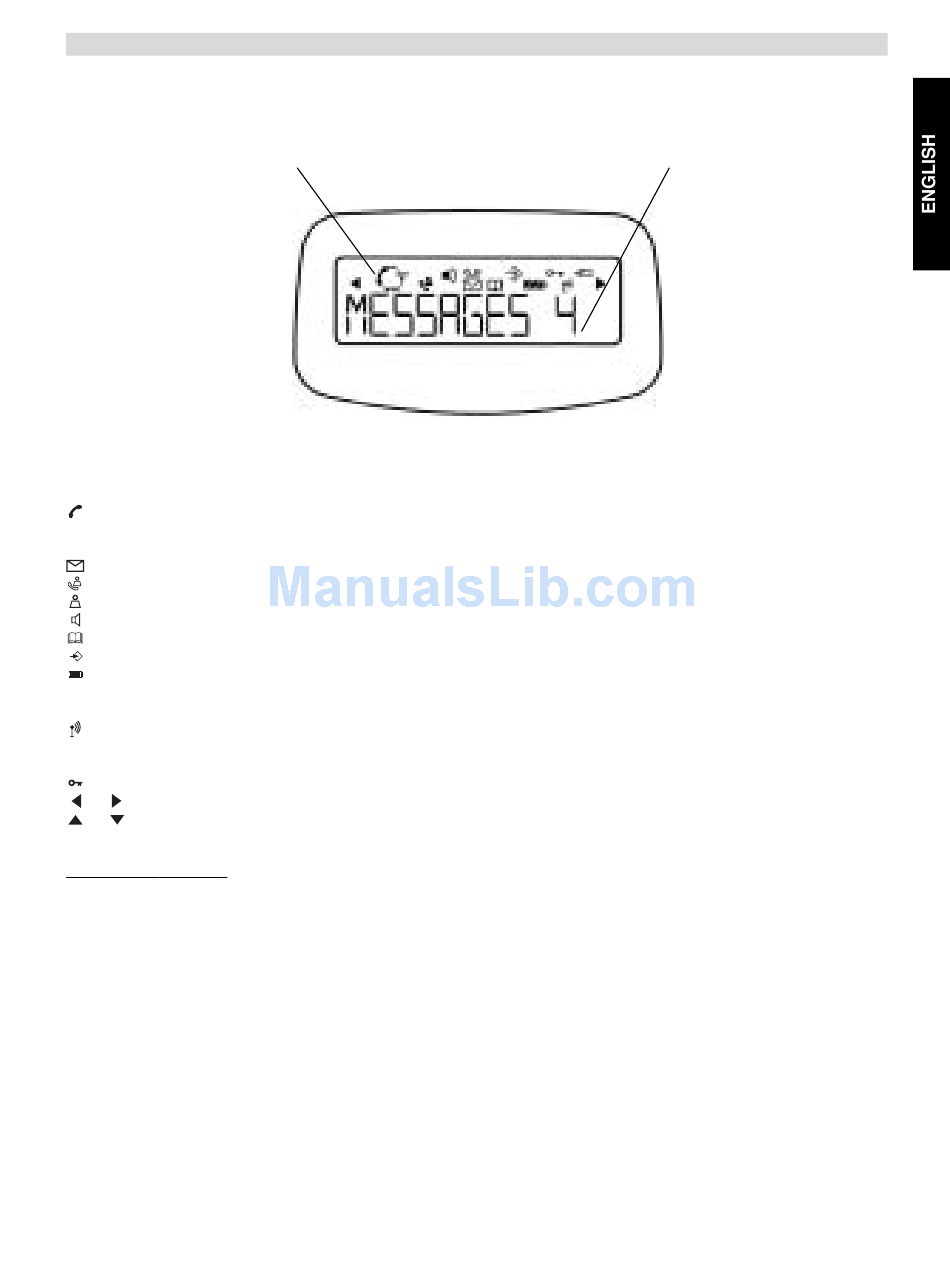

Icon line
Topcom Butler B3500/3501 Multi Handset
Character display line.
(12 characters maximum)
