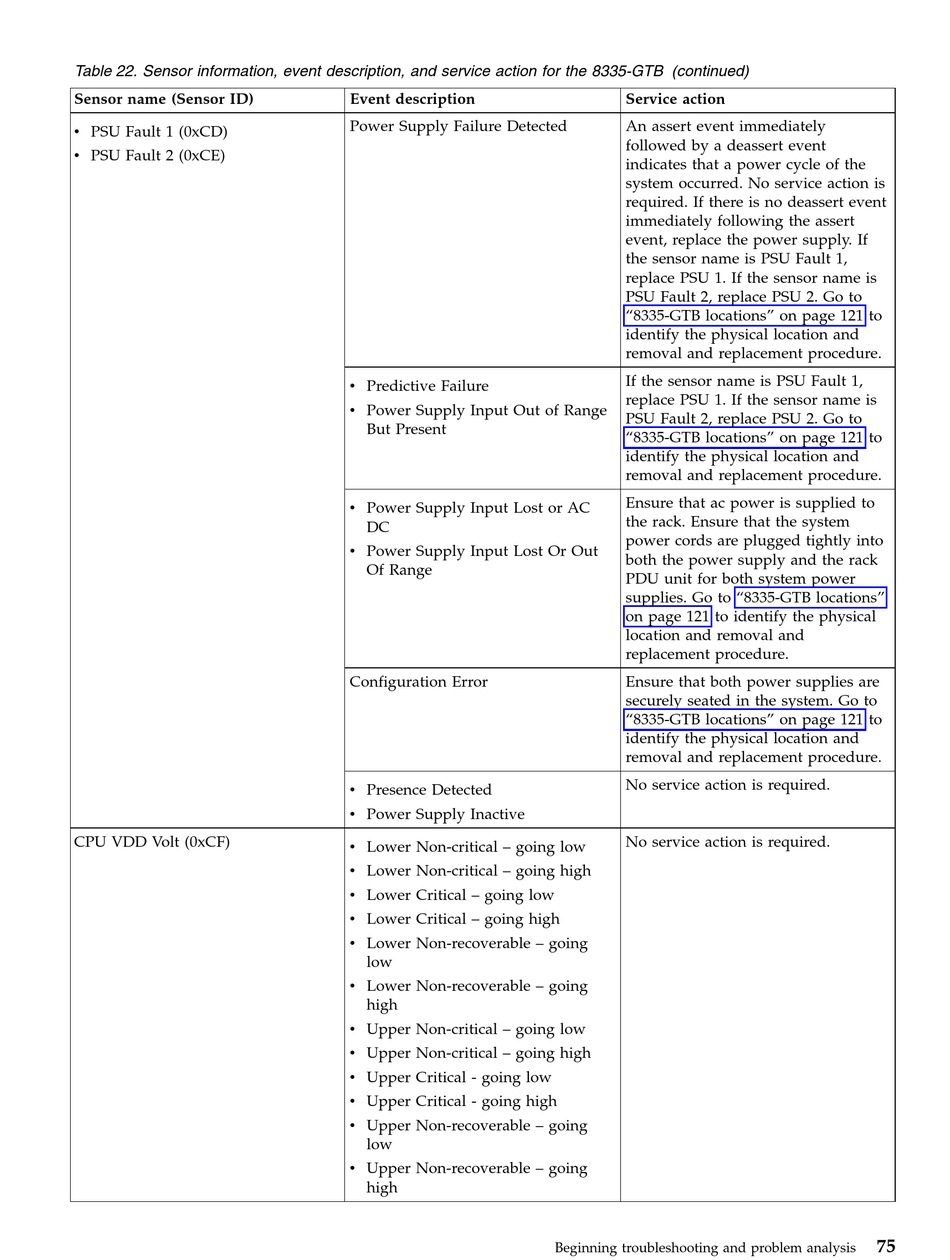

Table 22. Sensor information, event description, and service action for the 8335-GTB (continued)
Sensor name (Sensor ID)
v PSU Fault 1 (0xCD)
v PSU Fault 2 (0xCE)
CPU VDD Volt (0xCF)
Event description
Power Supply Failure Detected
v Predictive Failure
v Power Supply Input Out of Range
But Present
v Power Supply Input Lost or AC
DC
v Power Supply Input Lost Or Out
Of Range
Configuration Error
v Presence Detected
v Power Supply Inactive
v Lower Non-critical – going low
v Lower Non-critical – going high
v Lower Critical – going low
v Lower Critical – going high
v Lower Non-recoverable – going
low
v Lower Non-recoverable – going
high
v Upper Non-critical – going low
v Upper Non-critical – going high
v Upper Critical - going low
v Upper Critical - going high
v Upper Non-recoverable – going
low
v Upper Non-recoverable – going
high
Service action
An assert event immediately
followed by a deassert event
indicates that a power cycle of the
system occurred. No service action is
required. If there is no deassert event
immediately following the assert
event, replace the power supply. If
the sensor name is PSU Fault 1,
replace PSU 1. If the sensor name is
PSU Fault 2, replace PSU 2. Go to
"8335-GTB locations" on page 121 to
identify the physical location and
removal and replacement procedure.
If the sensor name is PSU Fault 1,
replace PSU 1. If the sensor name is
PSU Fault 2, replace PSU 2. Go to
"8335-GTB locations" on page 121 to
identify the physical location and
removal and replacement procedure.
Ensure that ac power is supplied to
the rack. Ensure that the system
power cords are plugged tightly into
both the power supply and the rack
PDU unit for both system power
supplies. Go to "8335-GTB locations"
on page 121 to identify the physical
location and removal and
replacement procedure.
Ensure that both power supplies are
securely seated in the system. Go to
"8335-GTB locations" on page 121 to
identify the physical location and
removal and replacement procedure.
No service action is required.
No service action is required.
