Smart Machine Smart Decision
3 EVB accessories

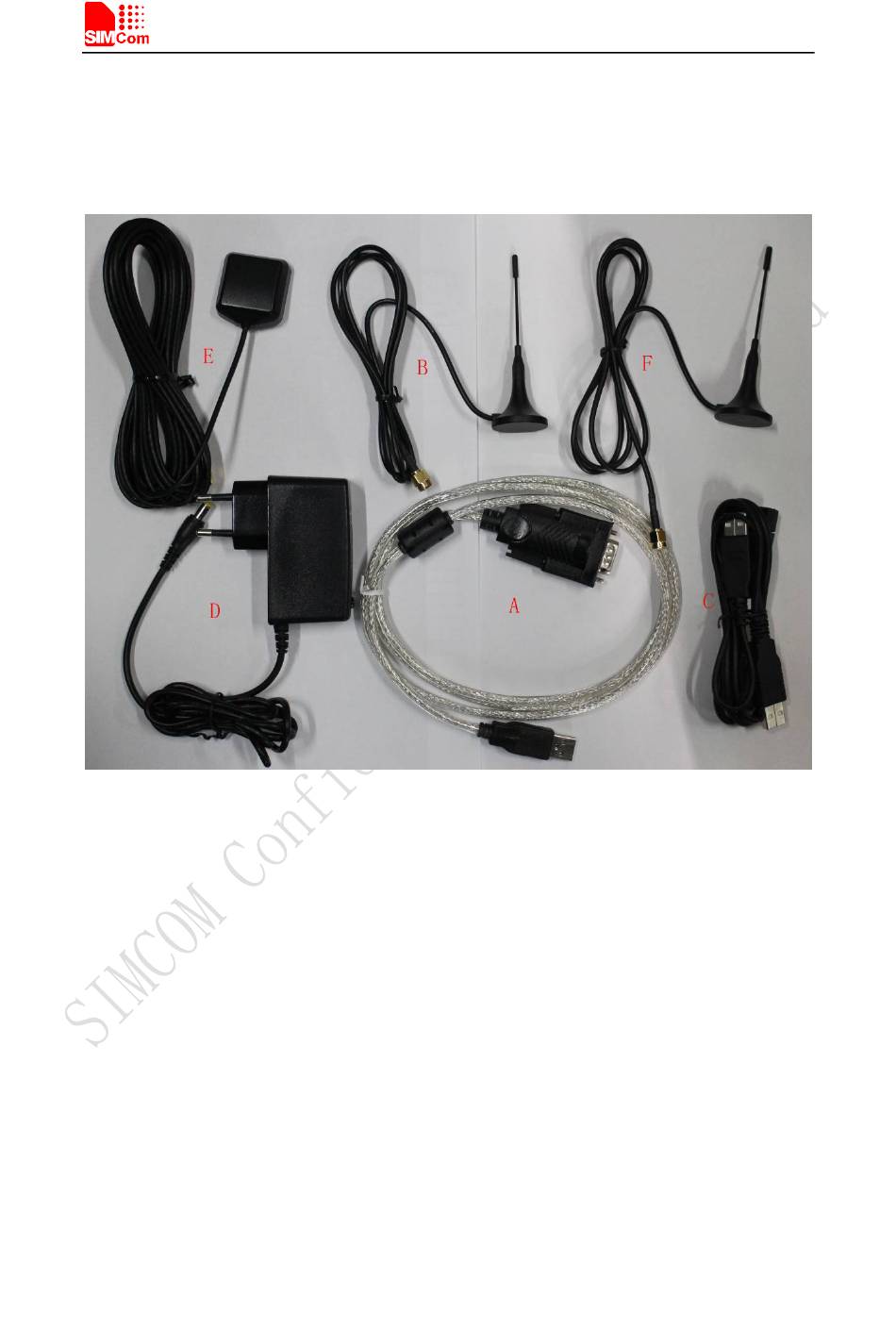

Figure 2: EVB accessory
A: USB to UART cable
B: MAIN antenna
Antenna Model: WT-C&G-28-90
Frequency Range (MHz) 824 ~ 960 1710 ~ 1990
VSWR ≤1.5 (900MHz) ≤2 (1800MHz)
Gain: 1dBi
Input Impedance (Ω): 50
Polarization Type: Vertical
Connector Type: SMA
C: USB cable
D: 5V DC adapter
E: GPS/GLONASS antenna
F: DIV antenna
NOTE: The maximum gain of the RF antenna gain should not exceed 1dBi for end-users.
SIM5360A EVB User Guide
8
03.18.2014
