PCM_DOUT/GPIO5

4.10 SD card interface

J208 is the SD card interface.
Table 11: SD card socket
Pin Signal
1 SD_D2
2 SD_D3
3 SD_CMD
4 VREG_SDCC
5 SD_CLK
6 GND
7 SD_D0
8 SD_D1
SIM5360A EVB User Guide
PCM_CLK pin.
General output pin. It also can be multiplexed as the
O
PCM_DOUT pin.

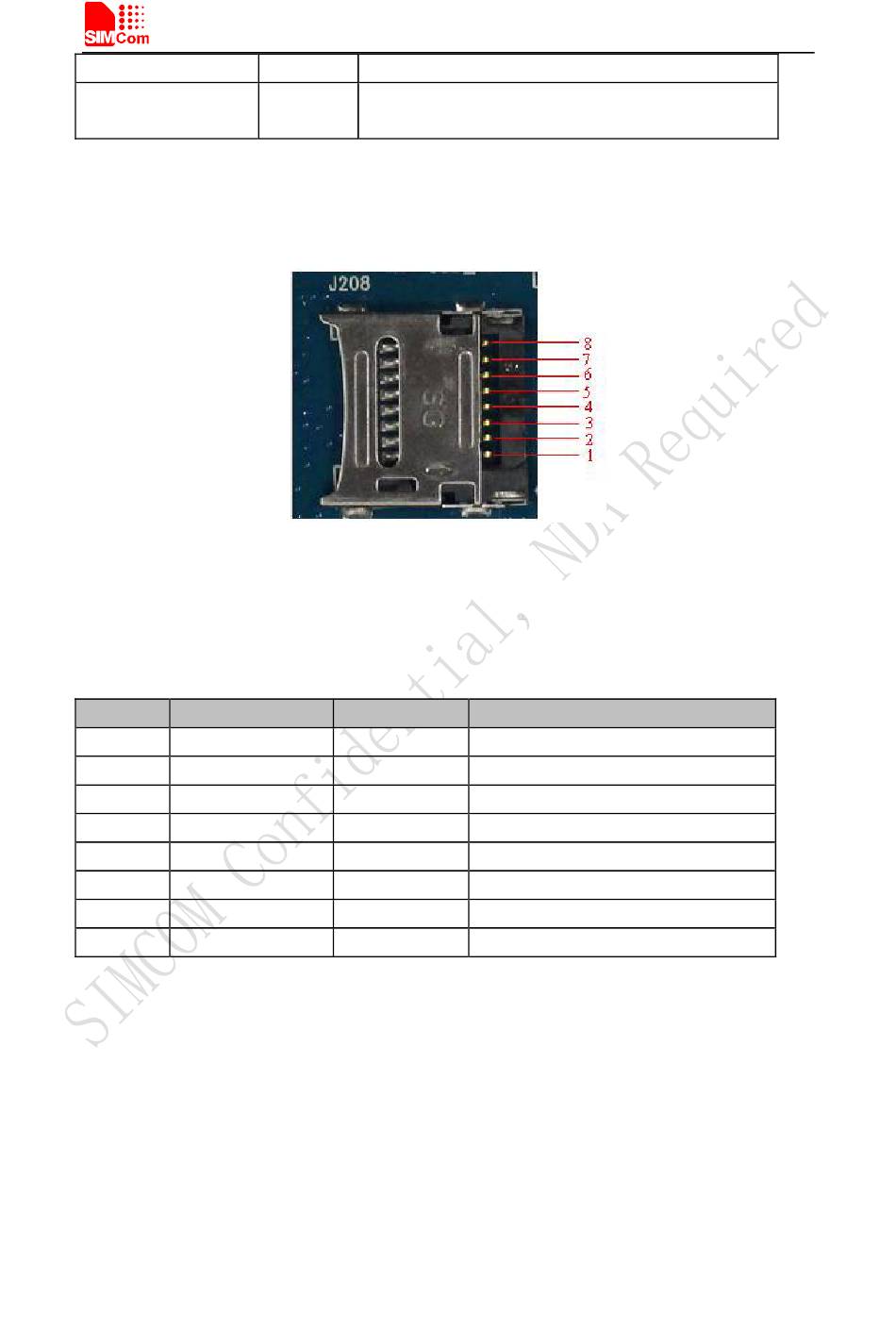

Figure 13: SD card socket
Input/Output
I/O
I/O
O
O
O
I/O
I/O
Smart Machine Smart Decision
Description
Data line 2
Data line 3
Command line
Power supply for SD card
Clock line
Ground
Data line 0
Data line 1
18 03.18.2014
