Smart Machine Smart Decision

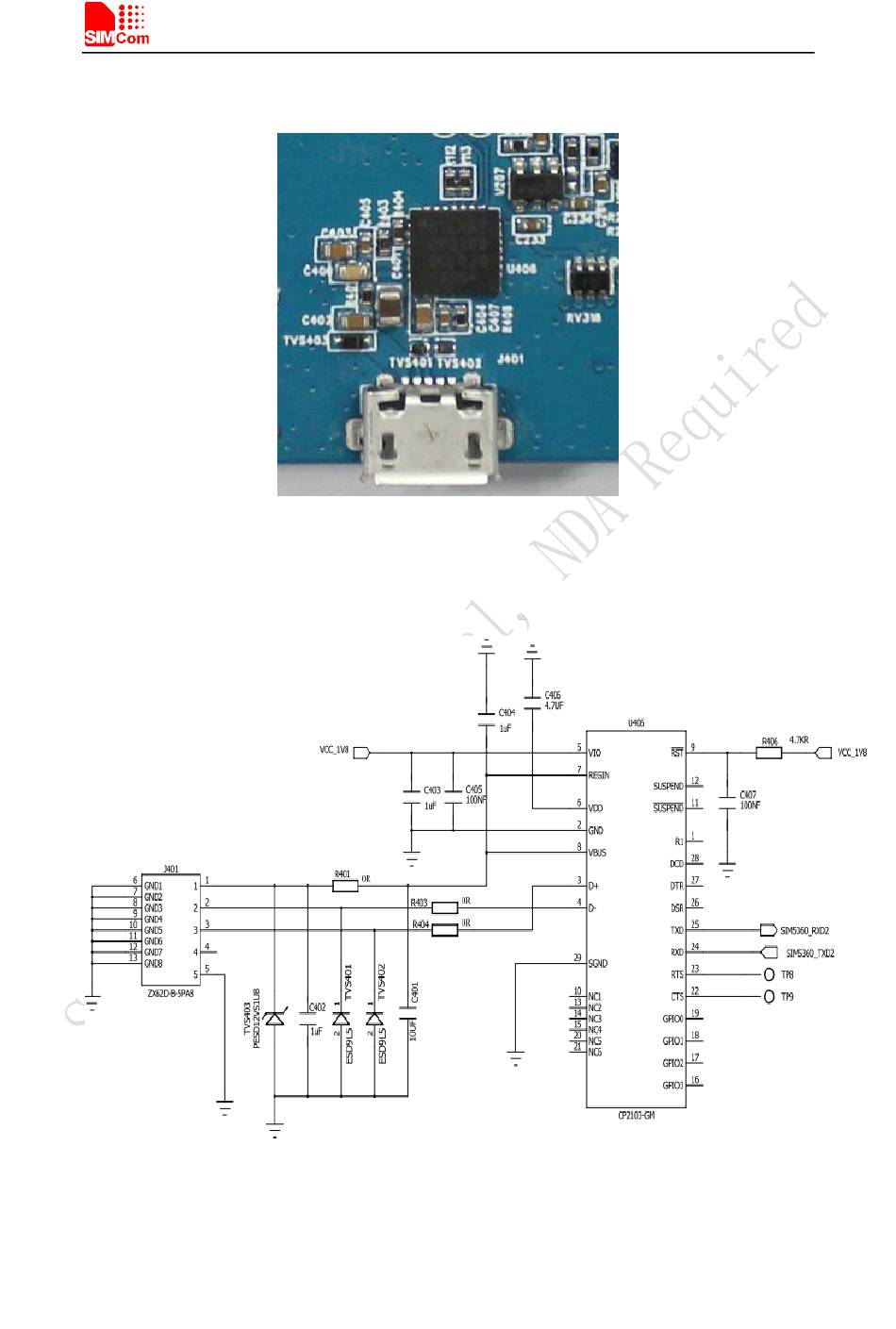

4.10 UART2 to MicroUSB interface
Figure 14: MicroUSB interface
J401 is 5 pins standard MicroUSB interface. It can be connected to a PC directly.
The following figure is the uart to USB circuit of SIM5360-EVB.
Figure 15: Uart to USB circuit
SIM5360A EVB User Guide
19
03.18.2014
