4.2 Audio Interface

J306 is the handset interface. X501 is the headset interface.
NOTE: The MIC's polarity must be correct.
Table 3: Earphone interface
Pin
Signal
1
MIC1P
2
EAR_P
3
EAR_N
4
MIC1N
Table 4: Headset interface
Pin
Signal
5
GND
6
HEADSET_MIC+
7
HPH_L
8
HPH_R
Speaker interface:
Please refer Figure 1. Pin 1 and Pin 2 is the SPK_M and SPK_P on J501.
NOTE: Audio cable must be away from the RF antenna, otherwise TDD noise may be occurred.
SIM5360A EVB User Guide

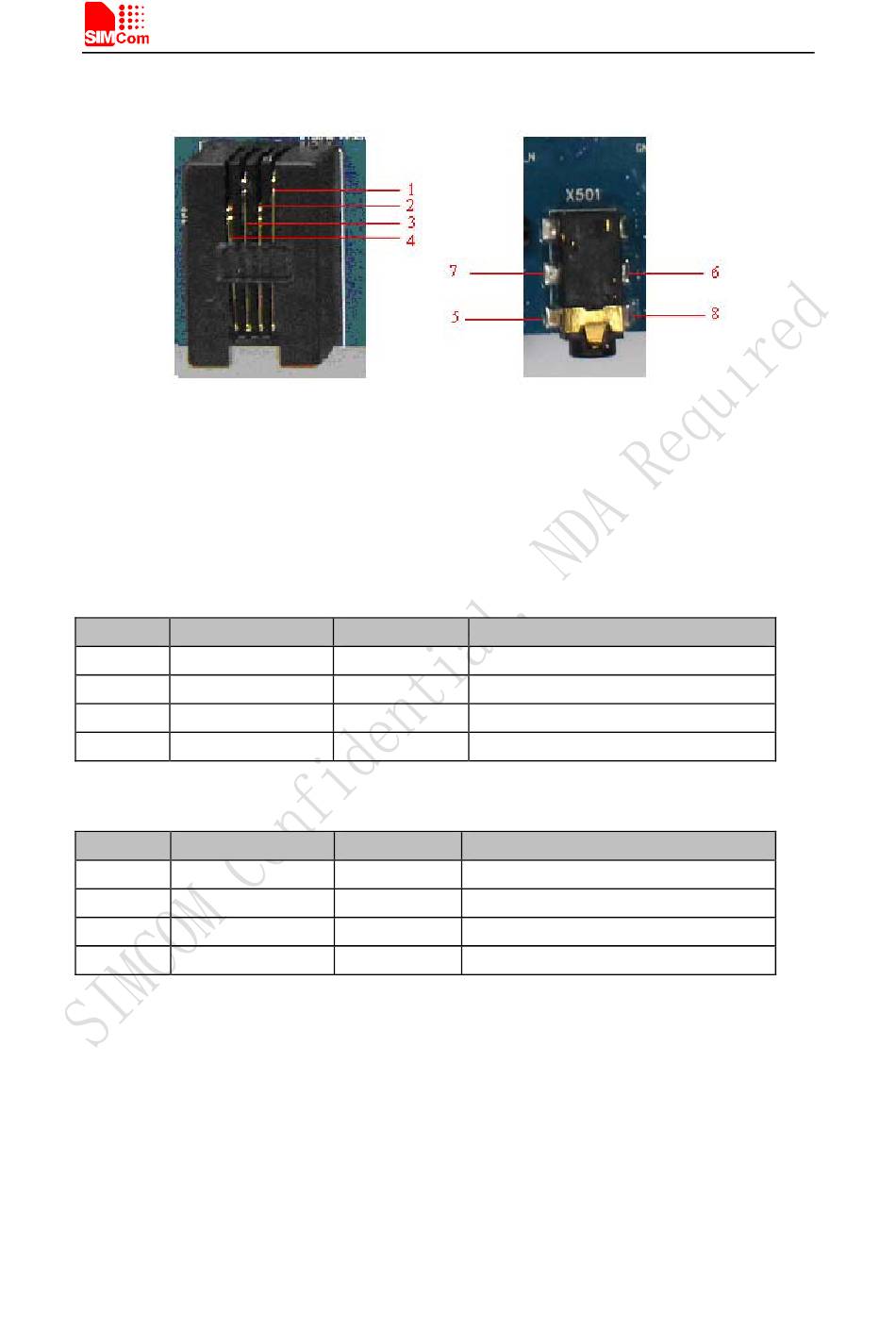

Figure 4: Audio Interface
Input/Output
Description
I
Positive microphone input
O
Positive receiver output
O
Negative receiver output
I
Negative microphone input
I/O
Description
Ground
I
Headset microphone input
O
Positive microphone output
O
Negative microphone output
10
Smart Machine Smart Decision
03.18.2014
