4.3 SIM card interface

Table 5: SIM card socket
Pin Signal
V_USIM
1
2 USIM_RESET
3 USIM_CLK
4 GND
5 SIM_VPP
6 USIM_DATA
SIM5360A EVB User Guide

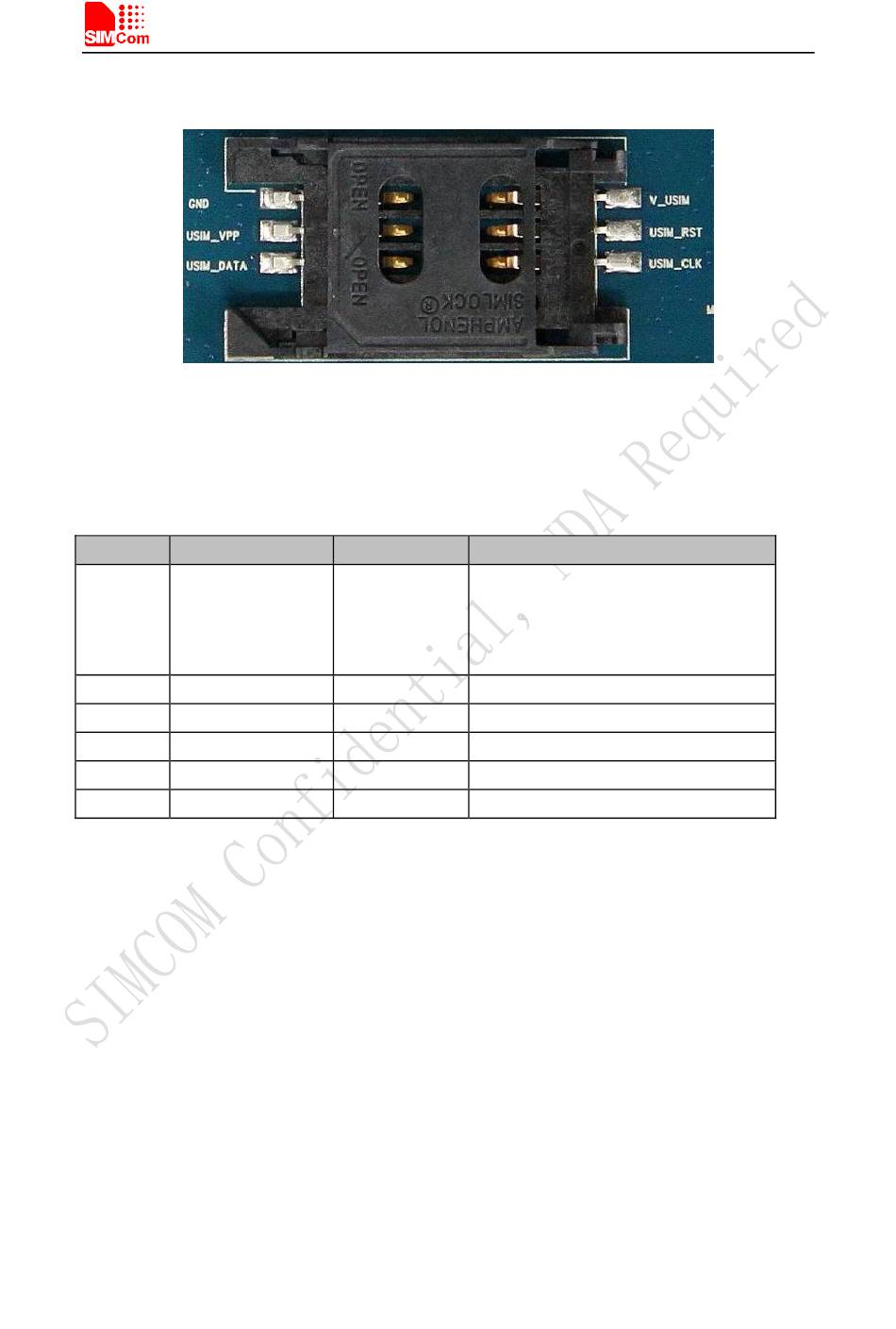

Figure 5: SIM card socket
Input/Output Description
USIM Card Power output automatic
output on USIM mode，one is
O
3.0V±10%, another is 1.8V±10%.
Current is about 10mA.
O USIM Card Reset
O USIM Card Clock
Ground
Not connect
I/O USIM Card data I/O
11
