Evb And Accessory Equipment; Quickly Start; Running - SimCom SIM5360A EVB User Manual

5 EVB and accessory equipment

At normal circumstance, the EVB and its accessories are equipped as the Figure below.

6 Quickly start

6.1 Running

There are two ways to provide power supply to SIM5360 module: one is to use the 5V power
supply provided in the EVB kit; the other is to use USB port of personal computer.
(1) When user use the power supply, if user insert 5V DC source adapter, user should connect
ADAPTER_VBAT pin and VBAT pin on the EVB board; then insert a valued SIM card and
check if the antenna is connected, and make sure that RF control switch is set to ON; finally
press the on/off switch for about 1 second, and then SIM5360 module will begin running.
(2) Another option is to use USB port of Computer as power supply. To do so, user need to
connect USB_VBAT pin and VBAT pin on the EVB board, and make sure that RF control
switch is set to ON. Firstly insert the sim card and connect the antenna, then connect the PC
with USB-to-USB cable and press the Power_ON button for one second, then SIM5360 will
start running.
SIM5360A EVB User Guide

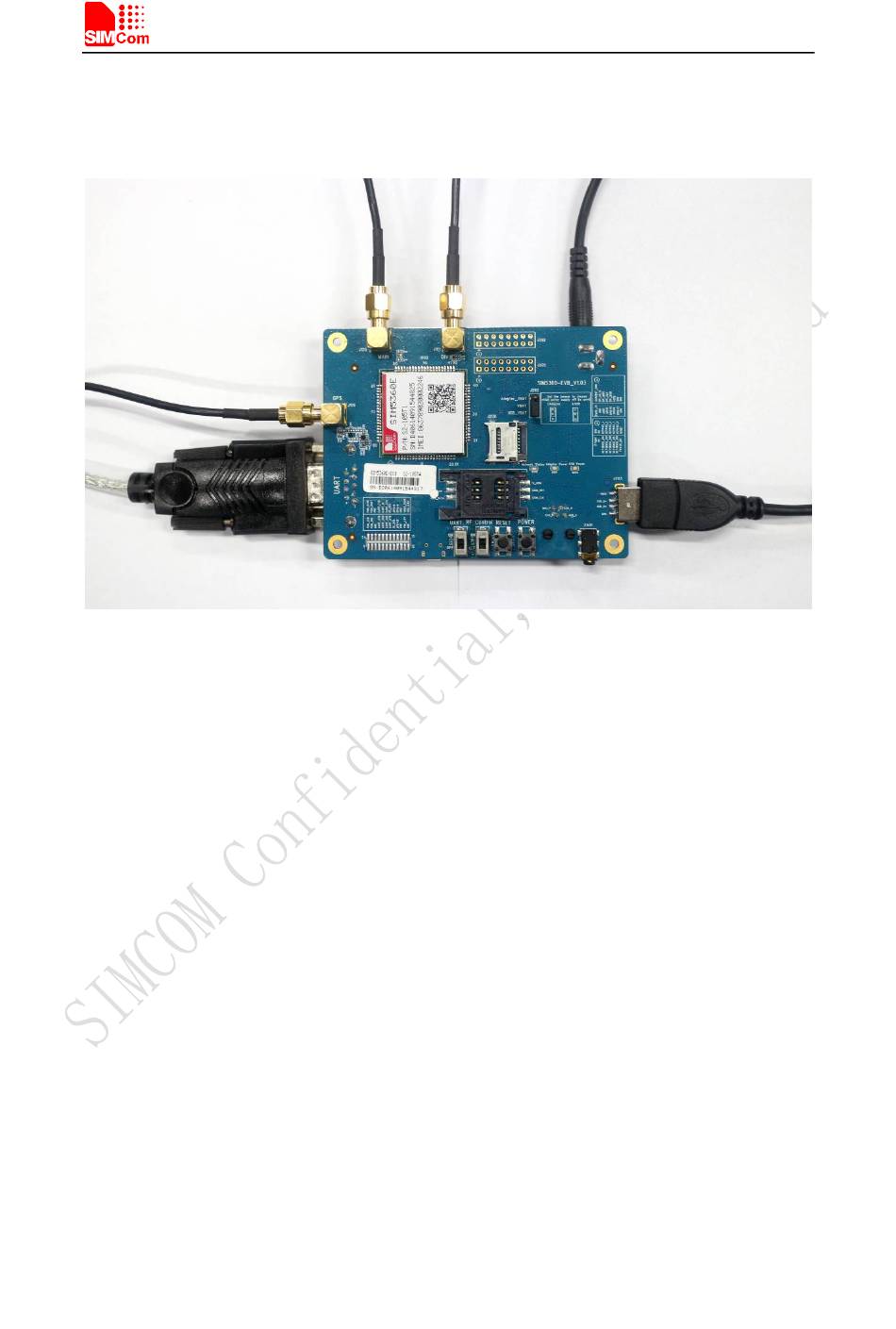

Figure 16: EVB and accessory equipment
