4.8 Switch interface

Table 9: Switch interface
Switch Signal
1 RS232 chip SHUTDOWN
2 GPIO4
3 RESET
4 PWRER_ON
SIM5360A EVB User Guide

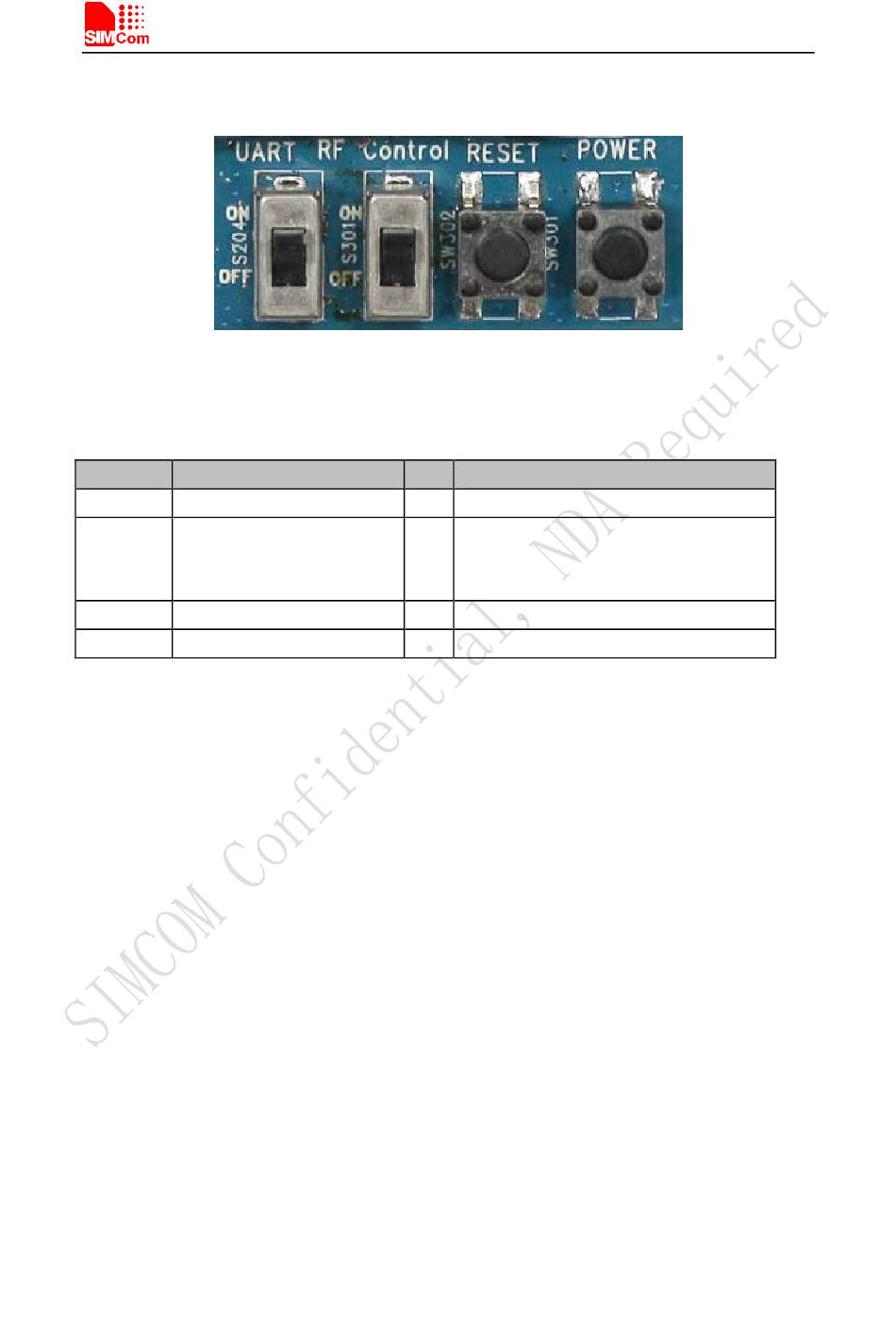

Figure 11: Switch Interface
I/O Description
I UART switch
I RF switch (S301)
ON : Normal mode
OFF : Flight mode
I Reset the module
I Power on the module
