  • Page 1 User’s manual Baby Hero Manual standing wheelchair Edition MG 06.2016...

  • Page 2: Table Of Contents

    Tabele of contents Introduction ............................. 3 Description of product ........................3 Application ............................4 Contradictions ..........................4 Usage ............................... 4 Safety of use - WARNING ! ......................5 7.1. Remote control ........................8 7.2. Headrest adjutment ........................8 7.3. Knee protectors ........................9 7.4.

  • Page 3: Introduction

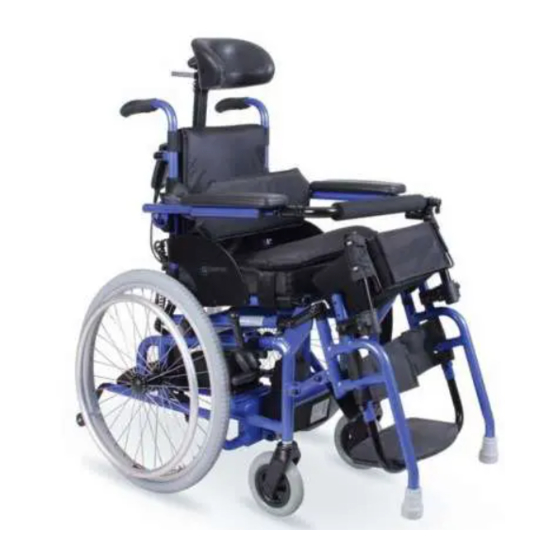

    1. Introduction Your Baby Hero wheelchair combines the most advanced state-of-the-art components with modern, attractive styling. We are sure that the design features and trouble-free operation will add convenience to your daily living and ensure complete satisfaction. Your safety is most important to us. Please read and follow all the instructions outlined in this manual before you attempt to operate your wheelchair for the first time.

  • Page 4: Application

    Illustration 3. 3. Application Baby Hero Manual standing wheelchair can be used in patients with congenital or acquired paralysis of the lower limbs, muscular dystrophy, stroke and amyotrophic lateral sclerosis. It can be used also for the prevention of pressure ulcers.

  • Page 5: Safety Of Use - Warning

    • Improves self-confidence and reduces the fear of assuming standing position; • provides body weight support training, prepares the patient to assume standing position by himself; • improves cardiopulmonary functions; • allows to perform every-day activities in standing position which increase sense of personal independence;...
  • Page 6 o) Do not bend, lean or reach for objects while sitting on the wheelchair – the wheelchair may tip which can cause product damage and personal injury. p) Always protect batteries from freezing. Never charge frozen batteries – it may lead to battery damage and personal injury.
  • Page 7 Do not leave your wheelchair on any incline – no matter whether you seat or stand next to it. DRIVING OUTDOOR Baby Hero and Hero wheelchairs have been designed to provide you with maximum comfort of use and safety when driving in standard conditions – on flat and dry surface.

  • Page 8: Remote Control

    Illustration 5. Illustration 6. 7. Everyday use and maintenance 7.1. Remote control Illustration 7. 1. OFF/ON LED light. 2. Press and hold the button to assume standing position. 3. Press and hold the button to return to sitting position. 4. Battery condition meter . The battery condition meter indicates the battery status.

  • Page 9: Knee Protectors

    Illustration 8. Illustration 9. • In order to adjust vertical inclination of headrest, release the screw (see the picture) using hexagon spanner. Choose the desired angle and fasten the screw tightly. (Illustration 9.) • Release the butterfly screw of the headrest – choose the desired angle ad fasten the butterfly screw.

  • Page 10: Footrest Adjustment

    Illustration 16. 7.4. Footrest adjustment • Unfasten the heel loop. (Illustration 17.) • Lift the footrests. (Illustration 18.) Illustration 17. Illustration 18. • Unlock the footrests according to the picture. (Illustration 19.) Illustration 19. Illustration 20 • Move the footrests outside. (Illustration 21.) •...
  • Page 11 Illustration 21. Illustration 22. • There can be lumbar cushion under the backrest (optional). (Illustration 23., 24.) Illustration 23. Illustration 24. 7.5. Armrests and guard rail There are screws and additional holes which allow you to adjust armrests height. Release the armrests, choose desired height and fasten the screws tightly.

  • Page 12: Backrest

    Illustration 29. • In order to facilitate getting on and off the wheelchair, the guard rail can be moved aside. (Illustration 30., 31.) Illustration 30. Illustration 31. 7.6. Backrest • In order to remove the backrest, release the screws placed at the back of the backrest and pull up the backrest.

  • Page 13: Replacement Tires

    Illustration 34. Illustration 35. • In order to disassemble/assemble the wheels, push the wheel cover and pull the wheel. (Illustration 36., 37.) Illustration 36. Illustration 37. 7.8. Replacement tires Before replacing the tires, refer to the following notes. First, let out the air in the innertube and then by pressing on the tire towards the center of the rim to loosen contact tire-rim.

  • Page 14: Batery Charging

    Always check both sides of the wheel, do the innertube has not been pressed by the tire and the tires properly adheres to the rim. The valve must gently push inward, and then squeeze outside in order to well-settled in the slot. To check the correctness mounting the tires, should inflate enough air to be able to press a thumb to the rim .

  • Page 15: Problem Solving

    7.10. Problem solving Illustration 38. • No voltage indication when power is on. Check the wires connection. • Open the black cover placed at the back of the frame. • Disconnect the plug and connect them to the socket to start charging. •...

  • Page 16: Transport

    WARNING ! • Please, remember that incorrect connection may damage the batteries. • If the batteries were expose to low temperatures (if the battery is frozen), do not try to charge them! • Cold or frozen batteries should be kept for couple of days in room temperature in order to warm them up and charge.

  • Page 17: Technical Paramets

    Repair • In case of reparation, please contact the producer. Customer service • If you have any questions or need help, contact the producer. 8. Technical paramets Model Baby Hero motor 6000 N 2.9Ah×12V×CPS batteries batteries weight 2.8 kg charger Hamulec ręczny...

  • Page 18: Symbols

    Net Weight (depending on the model) 30,5 kg BABY HERO: K, S, Przednie Tylne Rozmia koło koło (cm) (cm) 1045 15,24 55,80 1060 20,32 55,80 9. Symbols Confirmation of compliance with EU standards Manufacturer Date of production Read the user's manual...

  • Page 19: Contact Details

    Protect from sunlight Permitted user weight. Use inside and outside buildings The product is intended to transport by car. The product is not designed for use as a seat to transport in a motor vehicle. The product is intended to the transport by plane. The possibility of fingers jamming.
