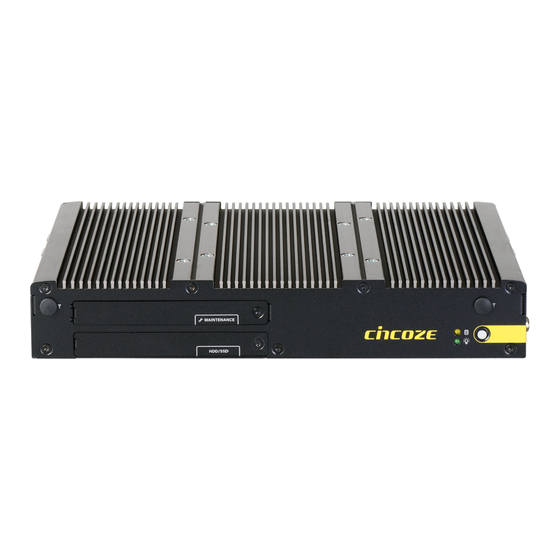

Cincoze P2102-i5-R10 User Manual

High performance convertible computer
Hide thumbs Also See for P2102-i5-R10:
Table of Contents

Advertisement

Quick Links

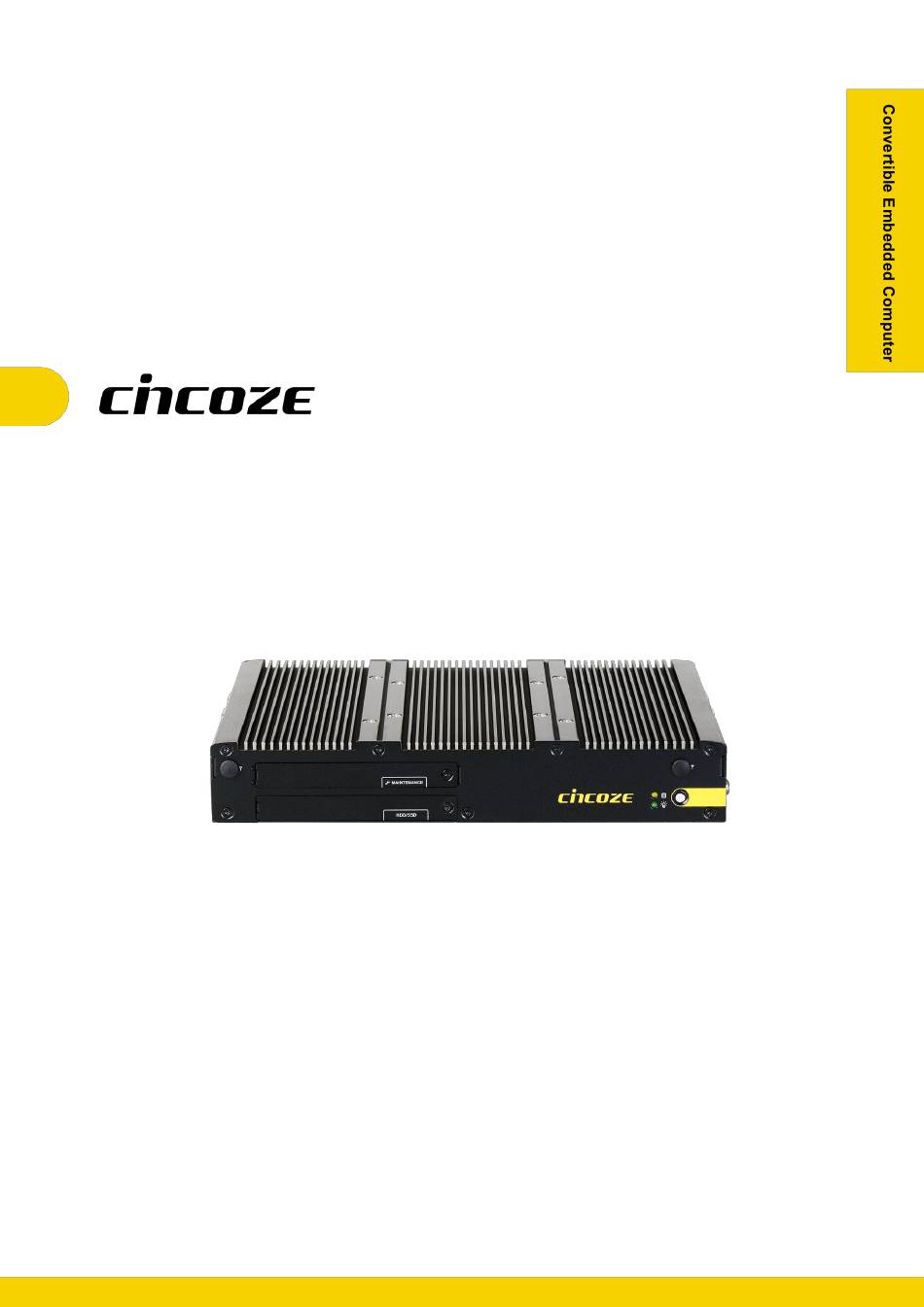

P2100 Series

User Manual

High Performance Convertible Computer
8th Generation Intel® Core™ U Series Embedded Computer
with CDS Technology
Version: V1.00
2020/01/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2102-i5-R10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze P2102-i5-R10

Summary of Contents for Cincoze P2102-i5-R10

  • Page 1: User Manual

    P2100 Series User Manual High Performance Convertible Computer 8th Generation Intel® Core™ U Series Embedded Computer with CDS Technology Version: V1.00 2020/01/09...

  • Page 2: Table Of Contents

    Contents Preface Revision……………………………………………..……………….……………...……………...05 Copyright Notice.…………………………………………………………………………………...05 Acknowledgement.………………………………………………………………......05 Disclaimer.………………………………………………………………….………………...05 Declaration of Conformity.………………………………………………….……………………05 Product Warranty Statement …………………………………………………………….....06 Technical Support and Assistance.…………………………………………….…………………07 Conventions Used in this Manual …………………………………………….…………....08 Safety Precaution …...……………………………………………….………….………....08 Package Contents ………………………………………………………….…….………...……10 Ordering Information …………………………………...…………………….…….……...……...10 Optional Modules & Accessories……………………………………........11 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..……………....13 1.2 Highlights …………………………………………………….…………..……………..13 1.3 Product Pictures……...……………………………………….……………………....14...
  • Page 3 Chapter 3 System Setup 3.1 Removing the Top Cover ……...……………………………….….…………………..30 3.2 Installing a Half Size Mini PCIe Card ………………………………………….……………31 3.3 Installing a Full Size Mini PCIe Card …………………………..…………….……………32 3.4 Installing a M.2 E Key Card…………………………….………...……………….....33 3.5 Installing Antennas …………………………………..….………..…………..34 3.6 Installing a SO-DIMM Module ………………………………..…………...…….……..36 3.7 Installing a PCI(e) Card ………………...……………..………...….…………………...…37 3.8 Installing Thermal Pad of Thermal Block…...……………………….….……………..40 3.9 Installing the Top Cover ………………………...……………..….…………….………..41...
  • Page 4 4.5.1 Administrator Password …….…...……………………………………………………71 4.5.2 User Password …….…………………………………………………..………………71 4.5.3 Security Boot…..……………………………………………………………..…………71 4.6 Boot Setup …...……….….……………………………...…..….…..………..…………..…72 4.6.1 Setup Prompt Timeout………………………….……………………………………..72 4.6.2 Bootup NumLock State…………………..……………………………………………72 4.6.3 Quiet Boot ……………………………………………………….………………..……72 4.6.4 Fast Boot ……………..………………………………………………………………...72 4.7 Save & Exit …...……….….…………………..…..….…..………………………....73 4.7.1 Save Changes and Exit ………………..……………………………….....73 4.7.2 Discard Changes and Exit …………………………………………………………….73 4.7.3 Save Changes and Reset …………………………………………………………….73 4.7.4 Discard Changes and Reset ….………………………………………………………73...

  • Page 5: Revision

    2020/01/09 Copyright Notice © 2020 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 9 damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...

  • Page 10: Package Contents

    Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Model No. Product Description 8th Generation Intel® Core™ i5-8365UE Quad Core Slim P2102-i5-R10 Embedded Computer with CDS Technology 8th Generation Intel® Core™ i5-8365UE Quad Core Expandable P2102E-i5-R10 Embedded Computer with CDS Technology 8th Generation Intel®...

  • Page 11: Optional Modules & Accessories

    Optional Modules & Accessories Model No. Product Description CFM Module with Power Ignition Sensing Control Function, CFM-IGN101 12V/24V Voltage Detection Selectable CFM Module with PoE Control Function, Individual Port 25.5W CFM-PoE04 (For P2102 Only) CFM Module with PoE Control Function, Individual Port 25.5W CFM-PoE05 (For P2102E Only) RC-E4-02...

  • Page 12: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P2100 Series | User Manual...

  • Page 13: Overview

    Patented CDS Technology Based on Cincoze patented Convertible Display System (CDS) technology, the P2102 can be easily converted to an industrial panel PC of different sizes by configuring with a variety of CDS display modules.

  • Page 14: Product Pictures

    1.3 Product pictures P2102 P2102E Front Side Rear Side Left Side Right Side 1.4 key Features ⚫ Onboard 8th Generation Intel® Core™ U Series Processor ⚫ 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB ⚫ Supports Triple Independent Display Integrated USB 3.2 Gen 2 supports up to 10Gbps ⚫...

  • Page 15: Hardware Specification

    1.5 Hardware Specification Processor System Other Function • Onboard 8th Intel® Core™ U Processors (Whiskey • Watchdog Timer: Software Programmable Supports • Lake) • 256 Levels System Reset - Intel® Core™ i5-8365UE Quad Core Processor • Internal Speaker AMP 2W + 2W •...

  • Page 16: System I/O

    1.6 System I/O 1.6.1 Front Antenna Hole Clear CMOS Used to connect an antenna for optional wireless Used to clear CMOS to reset BIOS module Removable HDD SIM Card Used to insert a 2.5” SATA HDD/SSD Used to insert a SIM card Power LED IGN Switch Indicates the power status of the system...

  • Page 17: Left

    1.6.3 Left Antenna Hole COM Port Used to connect an antenna for optional wireless Used to connect to RS-232/422/485 serial module devices USB 2.0 Used to connect to USB 2.0/1.1 compatible devices P2102 P2102E 1.6.4 Right COM Port OSD Function (For CDS Display Module) Used to connect to RS-232/422/485 serial LCD On/Off...

  • Page 18: Mechanical Dimension

    1.7 Mechanical Dimension P2102 P2102E P2100 Series | User Manual...
  • Page 19 Chapter 2 Switches & Connectors P2100 Series | User Manual...

  • Page 20: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View P2100 Series | User Manual...

  • Page 21: Switches And Connectors Definition

    2.2 Switches and Connectors Definition List of Switch Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease LED1 HDD / Power Access LED Status PWR_SW2 Power button RTC2 Clear COMS Switch Reset1...

  • Page 22: Definition Of Switches

    2.3 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push...
  • Page 23 RTC2：Clear CMOS Switch Switch Definition 1-2 (Left) No Operation (Default) 2-3 (Right) Clear CMOS RESET1: Reset Switch Switch Definition Push Reset System SW1: COM1~4 with Power Select Switch Location Function DIP1 DIP2 0V(RI) ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 0V(RI)

  • Page 24: Definition Of Connectors

    2.4 Definition of Connectors COM1 / COM2 / COM3/ COM4: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half RS232 Duplex Duplex Definition Definition Definition DATA - DATA + P2100 Series | User Manual...
  • Page 25 CN1： Mini PCI-Express Socket (Support mPCIE & SIM Module & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK 31 PETN0(USB3TN0)/SATATN0 1.5V SMB_DATA CLKREQ# 33 PETP0(USB3TP0)/SATATP0 SIM_VCC SIM_DATA USB_D- REFCLK- RESERVED SIM_CLK USB_D+ REFCLK+ RESERVED SIM_Reset 3.3V SIM_VPP 3.3V PERST# +1.5V 23 PERN0(USB3RN0)/SATARP0 49 3.3V 25 PERP0(USB3RP0)/SATARN0 51 +3.3V...
  • Page 26 CN2： Mini PCI-Express Socket (Support mPCIE & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0/SATATN0 1.5V SMB_DATA CLKREQ# PETP0/SATATP0 USB_D- REFCLK- USB_D+ REFCLK+ 3.3V 3.3V 3.3V PERST# +1.5V PERN0/SATARP0 +3.3VAUX PERP0/SATARN0 +3.3V P2100 Series | User Manual...
  • Page 27 CN3： M.2 Key E Socket (Support M.2 PCIE / Intel CNVi ) Definition Definition Definition +3.3V PULL-UP USB_D+ PEWAKE0# +3.3V USB_D- RGI_DT I2C_DATA WTD1N/PETP1 PCM_CLK RGI_RSP I2C_CLK WGR_D1N PETP0 WTD1P/PETN1 RBI_DT PCM_SYNC/LPCRSTN WGR_D1N PETN0 PCM_IN CLINK_REST REF_CLK WTD0N/PETP1 PCM_OUT CLINK_DATA WGR_D0N PERP0 WTD0P/PERN1...
  • Page 28 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) LAN1 / LAN2 LED： LAN1 / 2 LED Status Definition LAN LED Status Definition Blinking Yellow Data Activity Act LED No Activity Steady Green 1Gbps Network Link Link LED...

  • Page 29: Chapter 3 System Setup

    Chapter 3 System Setup P2100 Series | User Manual...

  • Page 30: Removing The Top Cover

    3.1 Removing the Top Cover 1. Loosen the eight screws at front and rear panel. 2. Raise the edge of top cover (1), and raise the other side (2) subsequently to remove it from the chassis. 3. Place the top cover aside gently. P2100 Series | User Manual...

  • Page 31: Installing A Half Size Mini Pcie Card

    3.2 Installing a Half Size Mini PCIe Card Locate the Mini PCIe socket on the system board. Use two screws provided on adapter bracket to fasten the card and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly.

  • Page 32: Installing A Full Size Mini Pcie Card

    Press down the card and secure it with two screws. 3.3 Installing a Full Size Mini PCIe Card 1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 33: Installing A M.2 E Key Card

    3. Press the card down and secure it with 2 screws. 3.4 Installing a M.2 E Key Card 1. Locate the M.2 E Key slot on the system board. 2. Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 34: Installing Antennas

    3. Press the card down and secure it with 1 screw. 3.5 Installing Antennas 1. Remove the antenna rubber cover on front, left or right panel. 2. Penetrate the antenna jack through the hole. P2100 Series | User Manual...
  • Page 35 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. P2100 Series | User Manual...

  • Page 36: Installing A So-Dimm Module

    3.6 Installing a SO-DIMM Module 1. Locate the SO-DIMM socket on the system board. 2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 3.

  • Page 37: Installing A Pci(E) Card

    4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. 3.7 Installing a PCI(e) Card 1. Loosen the two screws as indicated at rear panel. 2. Attach the PCI / PCIe Card Installation Kit on, and fasten the two screws back on rear panel to fix the Kit.
  • Page 38 4. Align the notch of golden fingers of Riser card(Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. 5. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly.
  • Page 39 7. Locate the retention module of PCI(e) expansion card. 8. Loosen the two screw as indicated to have the clamp arm slidable. 9. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. P2100 Series | User Manual...

  • Page 40: Installing Thermal Pad Of Thermal Block

    10. Finally, fasten the two screws that were previously loosen halfway to fix the retention module. 3.8 Installing Thermal Pad of Thermal Block 1. Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation.

  • Page 41: Installing The Top Cover

    3.9 Installing the Top Cover 1. Put on the edge of top cover onto system, and the other side subsequently. 2. Fasten the eight screws at front and rear panel to secure the top cover. P2100 Series | User Manual...

  • Page 42: Installing A Sata Hard Drive At Front Pane

    3.10 Installing a SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove the screw. 2. Loosen the screw to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. P2100 Series | User Manual...
  • Page 43 4. Hold the rotating arm to pull out the HDD bracket. 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot.
  • Page 44 7. Put back HDD bay cover at front panel, and fasten it with the screw. 8. Fasten the screw to secure the HDD bracket on the system chassis. P2100 Series | User Manual...

  • Page 45: Installing A Sata Hard Drive On Bottom Side

    3.11 Installing a SATA hard drive on Bottom Side 1. Turn over the system to bottom side. Locate the cover of HDD compartment. 2. Loosen the two screws, lift the cover, and then remove it. 3. Loosen three screws and take the HDD bracket out of HDD compartment. P2100 Series | User Manual...
  • Page 46 4. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. 6.

  • Page 47: Installing A Sim Card

    7. Put back the cover and fasten the two screws. 3.12 Installing a SIM Card 1. Loosen the screw to remove the Maintenance cover bracket. 2. Locate the SIM card slot. 3. Insert the SIM card. P2100 Series | User Manual...

  • Page 48: Connecting With Cv Display Module

    3.13 Connecting with CV Display Module 1. Prepare the mounting kit that accompanied with P2100 as shown. (including two mounting brackets and one screw pack) 2. Remove the six screws at left and right panel. 3. Assemble two mounting brackets by fastening six screws from the screws pack. P2100 Series | User Manual...
  • Page 49 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2100). P2100 Series | User Manual...
  • Page 50 6. Place the P2100 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2100 with the screw holes of display module underneath. Then slide the PC2100 carefully as indicated to have P2100 and display module connected together.

  • Page 51: Wall Mount

    3.14 Wall Mount 1. Prepare wall mount kit (two wall brackets and one screw pack) that came with the P2100. De-attach six rubber holes from the mounting brackets as indicated. 2. Remove the six screws at left and right panel. 3.
  • Page 52 The following picture indicates six wall mounting holes at each side. 4. Attach the P2100 to wall by fastening six screws through mounting holes at each side as illustrated. P2100 Series | User Manual...

  • Page 53: Din-Rail Mount Brackets

    3.15 DIN-Rail Mount Brackets P2100 series offers DIN-Rail Mount that customer can install system on the DIN Rail. 1. Please refer to section 3.14 Wall Mount Brackets to install mounting bracket at both sides of system. 2. Fasten 2 DIN rail mounting clips to mounting brackets on both sides with provided 4 screws as illustrated.
  • Page 54 3. Clip the system into DIN rail as illustrated by the following steps. (1) Have lower end of mounting clip snaps into the DIN rail. (2) Press the system toward to have upper end of mounting clip snaps into the other side of DIN rail. P2100 Series | User Manual...

  • Page 55: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P2100 Series | User Manual...

  • Page 56: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 57: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 58: Advanced Setup

    4.3 Advanced Setup 4.3.1 CPU Configuration ■ Intel® Virtualization Technology [Enabled] Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems.

  • Page 59: Pch-Fw Configuration

    ■ Hyper-Threading [Enabled] Allows you to enable or disable Intel® Hyper-Threading function of processor. 4.3.2 PCH-FW Configuration ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function.

  • Page 60: Trusted Configuration

    4.3.3 Trusted Computing ■ Security Device Support [Disable] Allow you to enables or disables Security Device Support function. 4.3.4 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration.

  • Page 61: F81866 Super Io Configuration

    ■ ACPI Sleep State [S3 (Suspend to RAM)] Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.5 F81866 Super IO Configuration The screen allows users to select options for the Super IO configuration, and change the value of the selected option.

  • Page 62: Hardware Monitor

    ❑ Serial Port [Enabled] This item allows users to enable or disable serial port. ❑ Change Settings [Auto] This item allows users to change the address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode.

  • Page 63: S5 Rtc Wake Settings

    4.3.7 S5 RTC Wake Settings ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.8 Serial Port Console Redirection ■...

  • Page 64: Usb Configuration

    4.3.9 USB Configuration ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.2) hand-off function.

  • Page 65: Nvme Configuration

    ■ CSM Support [Disabled] This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.3.11 NVMe Configuration The screen allows users to select options for the NVMe configuration, and change the value of the selected option.

  • Page 66: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ Memory Configuration This item displays detailed memory information in the system. P2100 Series | User Manual...

  • Page 67: Pch-Io Configuration

    ■ Graphics Configuration ❑ Primary Display [Auto] Allows users to select which graphics device should be primary display or select SG for switchable graphics. Configuration options: [Auto] [IGFX] [PEG] [PCIe] [SG] ❑ Internal Graphics [Auto] This item allows users to enable or disable Internal Graphics. When set to [Auto], it will detect by BIOS.
  • Page 68 ■ PCI Express Configuration ❑ PCI Express Root Port (CN1 mPCIe) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑...
  • Page 69 ■ SATA Configuration ❑ SATA Controller(s) [Enabled] Enables or disables Serial ATA controller. ❑ SATA Mode [AHCI] This item allows users to choose [AHCI] or [RAID] mode. ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑...
  • Page 70 ❑ HD Audio [Enabled] Allows you to select HD Audio options. [Enabled]: HD Audio device is unconditionally enabled. [Disabled]: HD Audio device is unconditionally disabled. ■ LAN i219LM Controller [Enabled] Enables or disables i219LM LAN Controller. ■ Wake On LAN (i219) [Enabled] Enables or disables integrated LAN i219LM Wake On LAN function.

  • Page 71: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. 4.5.3 Security Boot ❑...

  • Page 72: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [Off] Allows you to select the power-on state for keyboard NumLock. 4.6.3 Quiet Boot [Disabled] Allows you to enable or disable Quiet Boot function.

  • Page 73: Save & Exit

    4.7 Save & Exit 4.7.1 Save Changes and Exit This item allows you to exit system setup after saving changes. 4.7.2 Discard Changes and Exit This item allows you to exit system setup without saving changes. 4.7.3 Save Changes and Reset This item allows you to reset the system after saving changes.

  • Page 74: Chapter 5 Product Application

    Chapter 5 Product Application P2100 Series | User Manual...

  • Page 75: Digital I/O (Dio) Application

    5.1 Digital I/O (DIO) application This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O Item Standard GPIO70 (Pin103) GPIO71 (Pin104)
  • Page 76 5.1.1.2 Programming Guide To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices. To configure the register, use the index port to select the index and then write data port to alter the parameters.
  • Page 77 P2100 Series | User Manual...
  • Page 78 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 79 5.1.1.4.2 Control of GP80 to GP87 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 80 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default GPIO Port base address is 0xA00h P2100 Series | User Manual...
  • Page 81 5.1.1.6 DATA Bit Table (DIO) = DI1 = DO1 = DI2 = DO2 = DI3 = DO3 = DI4 = DO4 = DI5 = DO5 = DI6 = DO6 = DI7 = DO7 = DI8 = DO8 P2100 Series | User Manual...

  • Page 82: P2100 Digital I/O (Dio) Hardware Specification

    DIO I/O Port Address 5.1.1.7 5.2 P2100 Digital I/O (DIO) Hardware Specification • XCOM+ / 2XCOM+ : Isolated power in V+ • XCOM- / 2XCOM- : Isolated power in V- • Isolated power in DC voltage : 9~30V • 8x / 16x Digital Input (Source Type) •...

  • Page 83: P2100 Dio Connector Definition

    5.2.1 P2100 DIO Connector Definition DIO-1/DIO-2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Location Definition Location Definition DC INPUT DC INPUT DIO-1 DIO-2 P2100 Series | User Manual...
  • Page 84 Reference Input Circuit Reference Output Circuit P2100 Series | User Manual...
  • Page 85 Chapter 6 Optional Modules & Accessories Pin Definitions and Settings P2100 Series | User Manual...

  • Page 86: Pin Definition And Settings Of Ign Module

    6.1 Pin Definition and Settings of IGN Module SW2 on CFM-IGN101: IGN Module Timing Setting Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second 1 minute 5 minutes ON (IGN enabled) 10 minutes 30 minutes...

  • Page 87: Installing An Ign Module

    6.2 Installing an IGN Module Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. P2100 Series | User Manual...

  • Page 88: Installing A Poe Module

    6.3 Installing a PoE Module 1. Place a thermal pad on the top of the heatsink, and locate the two regions as marked. 2. Turn over the heatsink and paste the thermal pad at the marked region. 3. Paste the thermal pad onto the coil of the CFM-PoE module. Locate the PoE connector on system motherboard as indicated.
  • Page 89 Insert the female connector of PoE daughter board to the male connector on system motherboard. Put on the PoE thermal block and fasten two screws to secure the PoE board. P2100 Series | User Manual...

  • Page 90: Vesa Mount

    6.4 VESA Mount The following picture indicates VESA mounting hole pattern on P2100, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2100+CV display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.
  • Page 91 © 2019 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:
