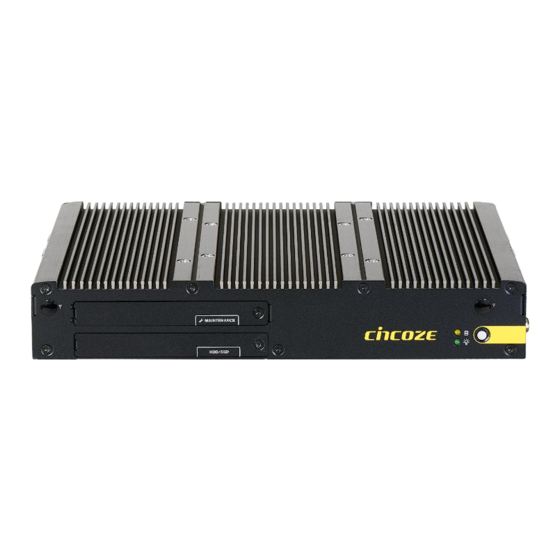

Cincoze P2202 Series User Manual

High performance convertible computer
Hide thumbs Also See for P2202 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
P2202 Series
User Manual
High Performance Convertible Computer
12th Generation Intel® Core™ U Series Embedded Computer with CDS
Technology
V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2202 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze P2202 Series

Summary of Contents for Cincoze P2202 Series

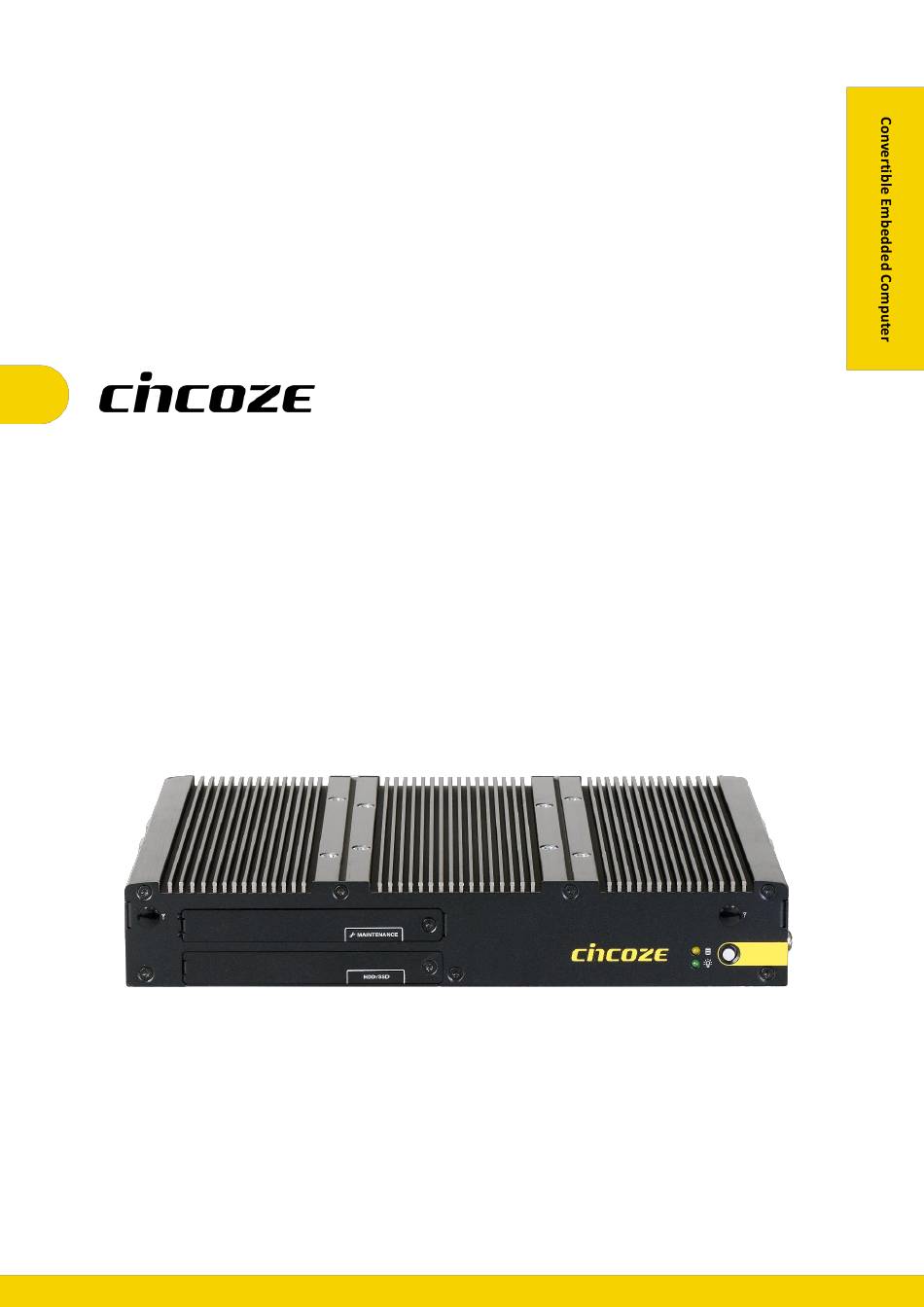

  • Page 1 P2202 Series User Manual High Performance Convertible Computer 12th Generation Intel® Core™ U Series Embedded Computer with CDS Technology V1.00...

  • Page 2: Table Of Contents

    2.4 Definition of Connectors ...................... 27 2.5 Optional Module Pin Definition & Settings ................33 2.5.1 CFM-IGN101 Module ....................33 Chapter 3 System Setup ........................34 3.1 Removing the Top Cover ...................... 35 3.2 Installing Mini PCIe Card(s) ....................36 P2202 Series | User Manual...
  • Page 3 4.3.9 Serial Port Console Redirection ................. 78 4.3.10 USB Configuration ....................79 4.3.11 Network Stack Configuration .................. 79 4.3.12 CSM Configuration ....................80 4.4 Chipset Setup ........................80 4.4.1 System Agent (SA) Configuration ................81 4.4.2 PCH-IO Configuration ....................84 P2202 Series | User Manual...
  • Page 4 4.6 Boot Setup ..........................87 4.7 Save & Exit ..........................88 4.8 MEBx ............................ 89 Chapter 5 Product Application ......................92 5.1 Where to download drivers? ....................93 5.2 Where to find the technical documents? ................93 P2202 Series | User Manual...

  • Page 5: Preface

    2023/11/17 Copyright Notice © 2023 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Product Warranty Statement

    Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Limitation Of Liability

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by P2202 Series | User Manual...
  • Page 9 70°C, and has to be evaluated according to IEC/EN 60950-1 and/or IEC/EN 62368- 1. If need further assistance, please contact Cincoze for further information. 17. Ensure to connect the power cord of power adapter to a socket-outlet with earthing connection.

  • Page 10: Package Contents

    12th Gen. Intel® Core™ i5-1245UE Expandable Embedded Computer with P2202E-i5-R10 CDS Technology 12th Gen. Intel® Core™ i3-1215UE Slim Embedded Computer with CDS P2202-i3-R10 Technology 12th Gen. Intel® Core™ i3-1215UE Expandable Embedded Computer with P2202E-i3-R10 CDS Technology P2202 Series | User Manual...

  • Page 11: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P2202 Series | User Manual...

  • Page 12: Overview

    PCIe expansion (Model: P2202E). The thinnest model is only 41.5 mm, a perfect fit for installation in small spaces. The main highlight of the P2202 series is the 12th Gen Intel® (Alder Lake-P) processors. The P2202 series can be used as a standalone embedded computer or, by using the exclusive CDS patented technology to connect a display module, used as an industrial panel PC, sunlight readable panel PC, or open frame panel PC to meet any display computing needs.
  • Page 13 EMC Protection To enhance stability when installed in high-vibration equipment control cabinets and mobile robots, the P2202 series has passed different vibration and shock reliability tests, such as random vibration (5G), sinusoidal vibration (1G), and shock resistance (50G). It also complies with the industrial-grade EMC standards for industrial environments (EN 61000-6-4 and EN 61000-6-2).

  • Page 14: Specifications

    2x 2.5” SATA HDD/SSD Bay (SATA3.0) • RAID Support RAID 0/1 Expansion • Mini PCI Express 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot PCI Express (with Optional Riser Card) * Supports maximum dimensions of P2202 Series | User Manual...
  • Page 15 Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation • MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 Environment P2202 Series | User Manual...
  • Page 16 EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. P2202 Series | User Manual...

  • Page 17: External Layout

    1.3 External Layout 1.3.1 Front P2202 P2202E P2202 Series | User Manual...

  • Page 18: Rear

    1.3.2 Rear P2202 P2202E P2202 Series | User Manual...

  • Page 19: Left

    1.3.3 Left P2202 P2202E P2202 Series | User Manual...

  • Page 20: Right

    1.3.4 Right P2202 P2202E P2202 Series | User Manual...

  • Page 21: Dimensions

    1.4 Dimensions P2202 unit : mm P2202E unit : mm P2202 Series | User Manual...

  • Page 22: Chapter 2 Introduction To Switches And Connectors

    Chapter 2 Introduction to Switches and Connectors P2202 Series | User Manual...

  • Page 23: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View P2202 Series | User Manual...

  • Page 24: Switches And Connectors Definition

    PCIEx4 Slot POE_PH1 PSE Board Male Header POWER1, POWER2 Power Connector, Support +5V/+12V PWR_SW1 Power Button with Power on LED PWR_SW2 Remote Power on/off Connector Reset1 Reset Button RTC1 Clear COMS Switch SATA1, SATA2 SATA Connector P2202 Series | User Manual...

  • Page 25: Definition Of Switches

    Normal (Default) Right Clear CMOS BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease P2202 Series | User Manual...
  • Page 26 ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 0V(RI) ON (Default) ON (Default) COM2 Location Function DIP5 DIP6 0V(RI) ON (Default) ON (Default) COM3 Location Function DIP7 DIP8 0V(RI) ON (Default) ON (Default) COM4 P2202 Series | User Manual...

  • Page 27: Definition Of Connectors

    LAN LED Status Definition Link LED Status Definition Steady Green 1 Gbps Network Link Steady Orange 100 Mbps Network Link 10 Mbps Network Link Act LED Status Definition Blinking Yellow Data Activity Steady Yellow No Activity P2202 Series | User Manual...
  • Page 28 Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch Definition RMT_PWR_BTN_N Do not apply power to this connector! This port is used to connect a SWITCH! (Ne mettez pas sous tension ce connecteur! Ce port est utilisé pour connecter un SWITCH!) P2202 Series | User Manual...
  • Page 29 DIO2 (Digital Input) DIO1: Digital Output Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+(DC INPUT) XCOM-(GND) DIO2: Digital Input Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+(DC INPUT) XCOM-(GND) P2202 Series | User Manual...
  • Page 30 Pin No. Pin Name Pin No. Pin Name WAKE# +3.3V +1.5V CLKREQ# REFCLK- REFCLK+ Mechanical KEY W_DISABLE1# PERST# PERn +3.3V PERp +1.5V SMB_CLK PETn SMB_DATA PETp USB_D- USB_D+ +3.3V +3.3V CLINK_CLK CLINK_DAT +1.5V CLINK_RST +3.3V P2202 Series | User Manual...
  • Page 31 Pin No. Pin Name WAKE# +3.3V +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST UIM_VPP Mechanical KEY PERST# PERn/USB3_Rn +3.3V PERp/USB3_Rp +1.5V SMB_CLK PETn/USB3_Tn SMB_DATA PETp/USB3_Tp USB_D- USB_D+ +3.3V +3.3V +1.5V +3.3V PERST# PERn/USB3_Rn +3.3V P2202 Series | User Manual...
  • Page 32 BRI_ RSP WGR_CLKp Mechanical KEY RGI_DT PETp0 RGI_RSP PETn0 BRI_DT CLINK_RST PERp0 CLINK_DATA PERn0 CLINK_CLK COEX3 REFCLKp0 COEX_TXD REFCLKn0 COEX_RXD SUSCLK CLKREQ0# PERST0# PEWAKE0# W_DISABLE2# W_DISABLE1# WTD1n/PETp1 I2C_DATA WTD1p/PETn1 I2C_CLK ALERT WTD0n/PERp1 REFCLK WTD0p/PERn1 PERST1# P2202 Series | User Manual...

  • Page 33: Optional Module Pin Definition & Settings

    Default setting of Pin1 to Pin4 is OFF/ON/ON/ON. 24V_12V_1 (on the system)：IGN Module Voltage Mode Setting Switch 12V / 24V Car Battery Switch Switch Definition Left 24V Car Battery Input (Default) Right 12V Car Battery Input P2202 Series | User Manual...

  • Page 34: Chapter 3 System Setup

    Chapter 3 System Setup P2202 Series | User Manual...

  • Page 35: Removing The Top Cover

    Step 1. Loosen the eight screws at front and rear panel Step 2. Raise the top cover and remove it from the chassis. Step 3. Place the top cover aside gently. P2202 Series | User Manual...

  • Page 36: Installing Mini Pcie Card(S)

    Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. Step 4. Press down the card and secure it with two screws. P2202 Series | User Manual...

  • Page 37: Installing A M.2 E Key Card

    Step 2. Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. Step 3. Press the card down and secure it with 1 screw. P2202 Series | User Manual...

  • Page 38: Installing Antenna(S)

    Step 2. Penetrate the antenna jack through the hole. And then put on the washer and fasten the nut with antenna jack. Step 3. Assemble the antenna and antenna jack together. Step 4. Attach the RF connector at another end of the cable onto the card. P2202 Series | User Manual...

  • Page 39: Installing So-Dimm(S)

    Step 3. Press down the memory module until retaining clips snap back in place. Step 4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. P2202 Series | User Manual...

  • Page 40: Installing A Pci(E) Card

    Step 3. Loosen the screw as indicated to remove the PCI bracket. Step 4. Align the notch of golden fingers of Riser card (Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. P2202 Series | User Manual...
  • Page 41 Step 6. Fasten the screw back to secure the PCI(e) expansion card. Step 7. Loosen the two screws as indicated to have the clamp arm slidable. Step 8. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. P2202 Series | User Manual...

  • Page 42: Installing Thermal Pad Of Thermal Block

    Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le capot du châssis du système, assurez‐vous que le film protecteur du coussin thermique a été retiré !) P2202 Series | User Manual...

  • Page 43: Installing The Top Cover

    3.8 Installing the Top Cover Step 1. Put on the edge of top cover onto system, and the other side subsequently. Step 2. Fasten the eight screws at front and rear panel to secure the top cover. P2202 Series | User Manual...

  • Page 44: Installing A Sata Hard Drive At Front Panel

    Step 2. Pull the rotating arm of HDD bracket outward as indicated. Step 3. Hold the rotating arm to pull out the HDD bracket. Step 4. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. P2202 Series | User Manual...
  • Page 45 Step 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot. Step 6. Put back HDD bay cover at front panel, and fasten it with the screw. P2202 Series | User Manual...

  • Page 46: Installing A Sata Hard Drive On Bottom Side

    Step 1. Turn over the system to bottom side. Locate the cover of HDD compartment. Step 2. Loosen the two screws, lift the cover, and then remove it. Step 3. Loosen three screws and take the HDD bracket out of HDD compartment. P2202 Series | User Manual...
  • Page 47 Step 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Step 6. Secure the HDD bracket with three screws. Step 7. Put back the cover and fasten the two screws. P2202 Series | User Manual...

  • Page 48: Installing A Sim Card

    3.11 Installing a SIM Card Step 1. Loosen the screw to remove the Maintenance cover bracket. Step 2. Locate the SIM card slot. Step 3. Insert the SIM card. P2202 Series | User Manual...

  • Page 49: Installing The Wall Mount

    Step 2. Remove the six screws at left and right panel. Step 3. Assemble two wall mount brackets by fastening six screws from the screws pack. Step 4. Attach the P2202 to wall by fastening screws through mounting holes at each side as illustrated. P2202 Series | User Manual...

  • Page 50: Connecting With A Display Module

    Here, you will find the connector cover for the display module. Step 2. Loosen two screws to remove the cover. Step 3. Locate the male connector on the display module. P2202 Series | User Manual...
  • Page 51 Step 5. Align the mounting holes of P2202 with the screw holes of display module underneath. Slide the P2202 until it and the display module connected together, and then fasten six screws to secure P2202 on the display module. P2202 Series | User Manual...

  • Page 52: Installing Din-Rail Mount Brackets

    3.14 Installing DIN‐Rail Mount Brackets P2202 series offers DIN-Rail Mount that customer can install system on the DIN Rail. Step 1. Please refer to Chapter 3.12 to install wall mounting brackets on both sides of the system, and then remove the middle rubber bands as demonstrated below.

  • Page 53: Installing The Vesa Mount

    PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. (Please refer to section 3.13 in this manual for how to connect P2202 with a display module.) Panel PC: P2202+ Display Module VESA Stand P2202 Series | User Manual...

  • Page 54: Installing Cfm Modules

    Step 1. Locate the power Ignition connector on system motherboard as indicated. Step 2. Insert the female connector of power ignition board to the male connector on system motherboard. Step 3. Fasten two screws to secure the power ignition board. P2202 Series | User Manual...

  • Page 55: Cfm-Poe04 Module

    (Avant de mettre le bloc thermique, veuillez vous assurer que le film protecteur sur le coussin thermique a été retiré!) Step 3. Paste the thermal pad onto the coil of the CFM-PoE module. Step 4. Locate the PoE connector on system motherboard as indicated. P2202 Series | User Manual...
  • Page 56 Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! (Avant d'assembler le capot du châssis du système, assurez‐vous que les films de protection sur les coussinets thermiques ont été retirés !) P2202 Series | User Manual...

  • Page 57: Installing Mec Modules

    Step 2. Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° P2202 Series | User Manual...
  • Page 58 Step 4. Press the card down and secure it with 2 screws. Step 5. Remove the 4 D-Sub jack screws from the COM ports. Step 6. Connect the other end of the wire to the Mini PCIe card as indicated. P2202 Series | User Manual...
  • Page 59 Step 7. Attach the COM ports onto the back side of the cover plates, and then fasten the 4 D-Sub jack screws to secure the COM ports. Step 8. Attach the MEC-COM bracket, and fasten the 2 screws to fix it as indicated. P2202 Series | User Manual...

  • Page 60: Mec-Com-M334-Tdb9/Ub1203 Module

    Step 2. Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° P2202 Series | User Manual...
  • Page 61 Step 4. Press the card down and secure it with 2 screws. Step 5. Remove the 8 D-Sub jack screws from the COM ports. P2202 Series | User Manual...
  • Page 62 Step 7. Attach the COM ports onto the back side of the cover plates, and then fasten the 8 D-Sub jack screws to secure the COM ports. Step 8. Attach the MEC-COM bracket, and fasten the 4 screws to fix it as indicated. P2202 Series | User Manual...

  • Page 63: Mec-Usb-M102-30/Ub1214 Module

    Step 2. Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° P2202 Series | User Manual...
  • Page 64 Step 4. Press the card down and secure it with 2 screws. Step 5. Connect the attached wire to the USB board. Step 6. Connect the other end of the wire to the Mini PCIe card as indicated. P2202 Series | User Manual...
  • Page 65 Step 7. Attach the USB board onto the back side of the cover plate, and then fasten the two screws to secure the module. Step 8. Attach the MEC-USB bracket, and fasten the 2 screws to fix it as indicated. P2202 Series | User Manual...

  • Page 66: Mec-Lan-M102-30/Ub1211 Module

    Step 2. Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° P2202 Series | User Manual...
  • Page 67 Step 4. Press the card down and secure it with 2 screws. Step 5. Connect the attached wires to the LAN board. Step 6. Connect the wires to the Mini PCIe card as indicated. P2202 Series | User Manual...
  • Page 68 Step 7. Attach the LAN board onto the back side of the cover plate, and then fasten the two screws to secure the module. Step 9. Attach the MEC-LAN bracket, and fasten the 2 screws to fix it as indicated. P2202 Series | User Manual...

  • Page 69: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P2202 Series | User Manual...

  • Page 70: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. P2202 Series | User Manual...

  • Page 71: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. P2202 Series | User Manual...

  • Page 72: Advanced Setup

    Allows you to choose the number of active performance cores. Configuration options: [All] [1] ◼ Active Efficient‐cores [All] Allows you to choose the number of active efficient cores. Configuration options: [All] [1] [2] [3] [4] [5] [6] [7] P2202 Series | User Manual...

  • Page 73: Sata Configuration

    This item allows users to choose [AHCI] mode. ◼ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ◼ Serial ATA Port 1 Port 1 [Enabled] Enables or disables SATA Port 1. 4.3.3 PCH‐FW Configuration P2202 Series | User Manual...

  • Page 74: Trusted Computing

    ◼ SHA384 PCR Bank [Disabled] Enables or disables SHA384 PCR Bank function. ◼ SHA3_256 PCR Bank [Disabled] Enables or disables SHA3_256 PCR Bank function. ◼ Pending Operation [None] Allows users to select which mode Pending Operation will operate. P2202 Series | User Manual...

  • Page 75: Acpi Settings

    Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. P2202 Series | User Manual...

  • Page 76: F81966 Super Io Configuration

    This item allows users to change the address & IRQ settings of the specified serial port. ◼ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ◼ Watch Dog [Disabled] P2202 Series | User Manual...

  • Page 77: Hardware Monitor

    02) and plug the power cord of the internal smart fan into the power socket on the Riser Card to effectively enable this function. ❑ Internal Smart Fan Configuration Allows users to setting internal smart fan parameters. P2202 Series | User Manual...

  • Page 78: S5 Rtc Wake Settings

    [Dynamic Time]: Set the increase time from current time to wake system. 4.3.9 Serial Port Console Redirection ◼ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, Com3 console redirection function. P2202 Series | User Manual...

  • Page 79: Usb Configuration

    This item allows users to enable or disable XHCI (USB3.2) hand-off function. ◼ USB Mass Storage Driver Support [Enabled] Enables or disables support for USB mass storage devices. 4.3.11 Network Stack Configuration ◼ Network Stack [Disabled] Enables or disables UEFI Network Stack. P2202 Series | User Manual...

  • Page 80: Csm Configuration

    This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. P2202 Series | User Manual...

  • Page 81: System Agent (Sa) Configuration

    4.4.1 System Agent (SA) Configuration ❑ Memory Configuration This item displays detailed memory information in the system. ◼ Max TOLUD [Dynamic] This item allows users to select maximum value of TOLUD. P2202 Series | User Manual...
  • Page 82 BIOS. Configuration options: [Auto] [Disabled] [Enabled] ❑ VMD Setup Menu ◼ Enable VMD controller [Disabled] This item allows users to enable or disable VMD controller. Enable this function can support creating RAID. P2202 Series | User Manual...
  • Page 83 ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] [Gen4]. ◼ VT‐d [Enabled] This item allows users to enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. P2202 Series | User Manual...

  • Page 84: Pch-Io Configuration

    Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑ PCI Express Root Port(CN3) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. P2202 Series | User Manual...
  • Page 85 Enables or disables integrated LAN i210 Wake On LAN function. ◼ CN5 Function Switch [Mini‐PCIe] Select Mini-PCIe/USB3.0 for CN5 connector. ◼ CN4 Function Switch [Wifi] Select CNV/Wifi(PCIE) for CN4 connector. ◼ Audio Amplifier [Enabled] Enable or disable Audio Amplifier. P2202 Series | User Manual...

  • Page 86: Security Setup

    This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. P2202 Series | User Manual...

  • Page 87: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [Off] P2202 Series | User Manual...

  • Page 88: Save & Exit

    4.7.8 Save as User Defaults This item allows you to save the changes done so far as user defaults. 4.7.9 Restore User Defaults This item allows you to restore the user defaults to all the options. P2202 Series | User Manual...

  • Page 89: Mebx

    This page is for ME function setting. Press the delete key to enter the BIOS menu then user can see the following MEBx page. Press enter key to enter the default password "admin" to enter the next step for password creation. P2202 Series | User Manual...
  • Page 90 Create a new password using 8 characters including uppercase and lowercase letters, numbers and special symbols. Enter the created password again for confirmation. P2202 Series | User Manual...
  • Page 91 Then you can see the function setting page of MEBx. P2202 Series | User Manual...

  • Page 92: Chapter 5 Product Application

    Chapter 5 Product Application P2202 Series | User Manual...

  • Page 93: Where To Download Drivers

    5.1 Where to download drivers? Please go to the CINCOZE website to download the drivers for P2202 series. 5.2 Where to find the technical documents? Please go to the CINCOZE website to find the technical documents for P2202 series. Catalog...
  • Page 94 © 2023 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
