Cincoze P2000 Series User Manual

Convertible embedded computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

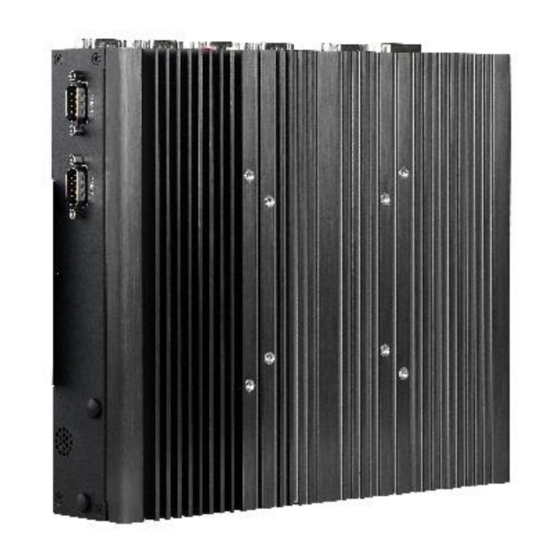

Convertible Embedded Computer
Convertible Embedded Computer
Generation Intel® Core™ U Series (Skylake)
th
6
Fanless Computer with CFM & CDS Interface
P2000 Series
CN-TB-QP22-44_V1.0
DOC No: P2000_R1.30_20180129001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze P2000 Series

Summary of Contents for Cincoze P2000 Series

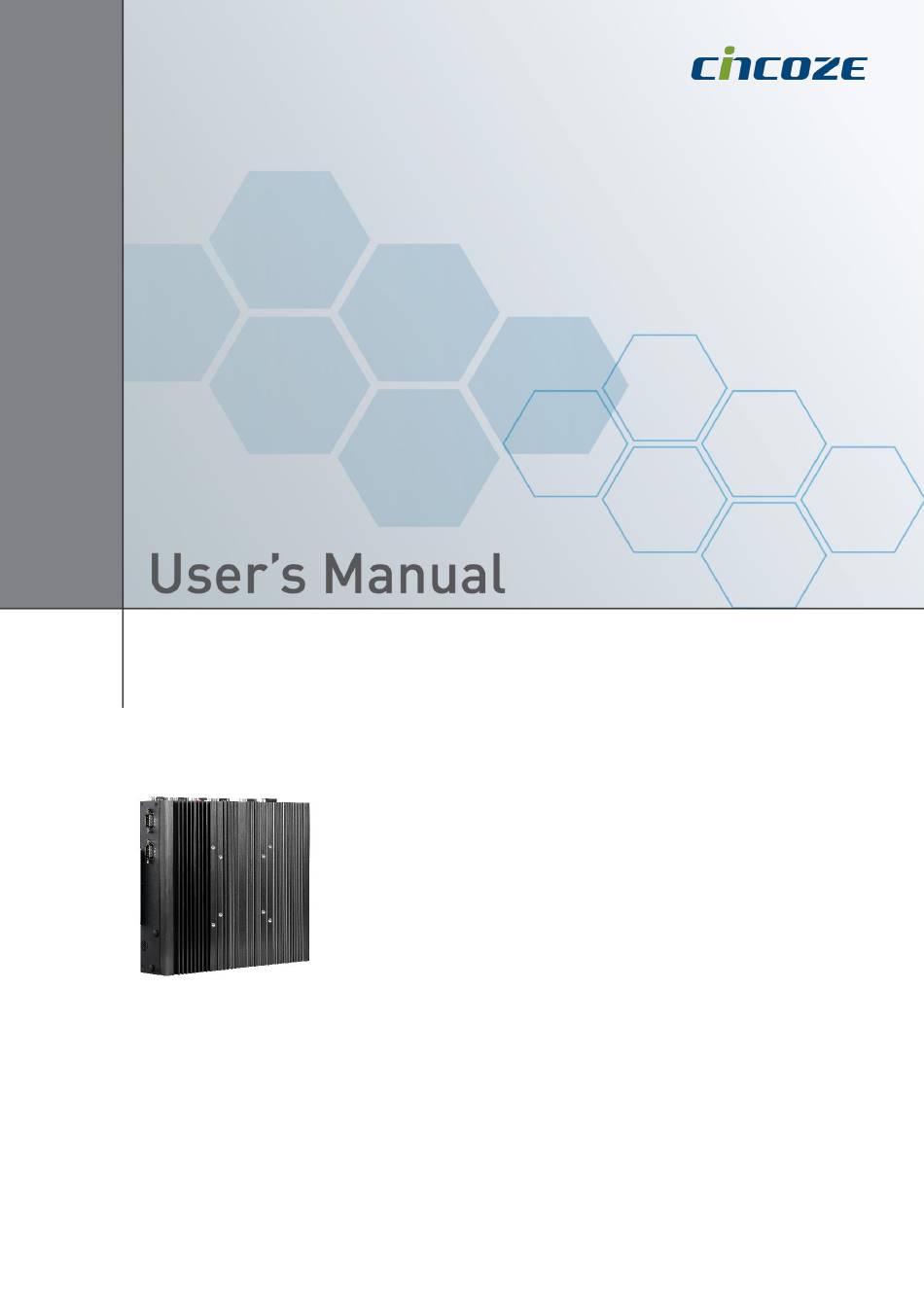

  • Page 1 Convertible Embedded Computer Convertible Embedded Computer Generation Intel® Core™ U Series (Skylake) Fanless Computer with CFM & CDS Interface P2000 Series CN-TB-QP22-44_V1.0 DOC No: P2000_R1.30_20180129001...

  • Page 2: Table Of Contents

    P2000 Series | User’s Manual Convertible Embedded Computer Contents Preface Revision …………………………………………….……..……………….……….. 04 Copyright Notice …………………………………………………………………… 04 Acknowledgement …………………………………………….………....04 Disclaimer ………………………………………………………….……………….. 04 Declaration of Conformity ……………………………………….………………… 04 Product Warranty Statement ……………………………………….…………….. 05 Technical Support and Assistance ………………………………….……………. 06 Conventions Used in this Manual …………………………………….………….. 06 Safety Precaution …..…………………………………….…………….…………..
  • Page 3 P2000 Series | User’s Manual Convertible Embedded Computer 3.15 Installing a CFast Card ………….…..……..………..….……………... 57 3.16 Connecting with CV Display Module……………..….……………..58 3.17 VESA Mount ………………..……..……….…..….…………………... 61 3.18 Wall Mount ………………….……..……….…..….………………..…... 62 Chapter 4 BIOS Setup 4.1 BIOS Introduction …….……….…………….…….…..….…………... 65 4.2 Main Setup ……..……….………………….…..….………………..

  • Page 4: Revision

    2018/09/07 Copyright Notice © 2014 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.

  • Page 5: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 6: Technical Support And Assistance

    | User’s Manual Convertible Embedded Computer Prefaces Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Safety Precaution

    P2000 Series | User’s Manual Convertible Embedded Computer Safety Precautions Before installing and using this device, please note the following precautions: 1. Read these safety instructions carefully. 2. Keep this User’s Manual for future reference. 3. Disconnected this equipment from any AC outlet before cleaning.

  • Page 8: Package Contents

    P2000 Series | User’s Manual Convertible Embedded Computer Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Q’ty Item Description P2002 / P2002E System Utility DVD Driver Screw Pack Wall / CDS Mounting Kit...

  • Page 9: Optional Accessories

    P2000 Series | User’s Manual Convertible Embedded Computer Optional Accessories Model No. Product Description CFM-IGN100-R10 Power Ignition Sensing Control Function Module PoE Control Function Module, individual port 25.5W (50 x 44 x 15 mm) CFM-PoE100-R10 (For P2002 only) PoE Control Function Module, individual port 25.5W (50 x 44 x 33 mm)

  • Page 10: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 11: Overview

    Plug & Play. CFM Technology CFM (Control Function Module) is a technology created by Cincoze, it enables function enhancement by adding specific function daughter board. CFM Technology allows P2002/P2002E to support PoE and IGN function for various applications.

  • Page 12: Product Pictures

    P2000 Series | User’s Manual Convertible Embedded Computer 1.3 Product pictures P2002 P2002E Front Front Rear Rear Side (Left) Side (Left) Side (Right) Side (Right) 1.4 key Features • Onboard Intel® 6th Generation Core™ U Series Processor (15W) • 2x DDR4 SO-DIMM Socket, Support Up to 32 GB •...

  • Page 13: Hardware Specification

    P2000 Series | User’s Manual Convertible Embedded Computer 1.5 Hardware Specification Processor System Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) •...

  • Page 14: System I/O

    P2000 Series | User’s Manual Convertible Embedded Computer 1.6 System I/O 1.3.1 Front DC IN USB 3.0 Used to plug a DC power input with terminal block Used to connect to USB 3.0/2.0/1.1 compatible devices DVI-D USB 2.0 Used to connect to an monitor with digital signal interface Used to connect to USB 2.0/1.1 compatible devices...

  • Page 15: Left

    P2000 Series | User’s Manual Convertible Embedded Computer 1.3.3 Left Antenna Hole Power LED Used to connect an antenna for optional Mini-PCIe Indicates the power status of the system WiFi module HDD LED Indicates the status of the hard disk drive...

  • Page 16: Top

    P2000 Series | User’s Manual Convertible Embedded Computer 1.3.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) P2002 P2002E CN-TB-QP22-44_V1.0...

  • Page 17: Mechanical Dimension

    P2000 Series | User’s Manual Convertible Embedded Computer 1.7 Mechanical Dimension Unit: mm P2002 Unit: mm P2002E CN-TB-QP22-44_V1.0...
  • Page 18 Chapter 2 Jumpers, Switches & Connectors...

  • Page 19: Jumper Settings

    P2000 Series | User’s Manual Convertible Embedded Computer 2.1 Jumpers Settings When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

  • Page 20: Bottom View

    P2000 Series | User’s Manual Convertible Embedded Computer 2.2.2 Bottom View CN-TB-QP22-44_V1.0...

  • Page 21: List Of Jumpers, Connectors And Switches

    P2000 Series | User’s Manual Convertible Embedded Computer 2.3 List of Jumpers, Switches and Connectors Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease CFAST1 CFast Connector...

  • Page 22: Definition Of Switches

    P2000 Series | User’s Manual Convertible Embedded Computer 2.4 Definition of Switches Super CAP Function Setting: Pin Define SW2 Switch Switch mode Function Super CAP Enable (Default) Disable Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function...
  • Page 23 P2000 Series | User’s Manual Convertible Embedded Computer COM3/4/5/6 Voltage Function Setting : Pin Define SW1 Switch Switch mode Function ON/ON (Default) COM3 ON/OFF OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF...
  • Page 24 P2000 Series | User’s Manual Convertible Embedded Computer AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode ATX Power Mode（Default） 2-3 (Right) BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching...
  • Page 25 P2000 Series | User’s Manual Convertible Embedded Computer BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System CN-TB-QP22-44_V1.0...

  • Page 26: Definition Of Connectors

    P2000 Series | User’s Manual Convertible Embedded Computer 2.5 Definition of Connectors CFAST1: CFast Connector Definition Definition Definition PC10 SATA_TX2+ PC11 SATA_TX2- PC12 PC13 +3.3V SATA_RX2- PC14 +3.3V SATA_RX2+ PC15 PC16 PC17 SIM1：SIM Card Socket Definition UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA CN-TB-QP22-44_V1.0...
  • Page 27 P2000 Series | User’s Manual Convertible Embedded Computer COM1_1/COM2_1/(COM3_1/COM4_1/COM5_1/COM6_1 in the BTB Board): RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA- DATA+ CN-TB-QP22-44_V1.0...
  • Page 28 P2000 Series | User’s Manual Convertible Embedded Computer DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) CN-TB-QP22-44_V1.0...
  • Page 29 P2000 Series | User’s Manual Convertible Embedded Computer LAN1/LAN2: RJ45 with LEDs Port Definition Definition LAN1_MDI0P LAN1_MDI2N LAN1_MDI0N LAN1_MDI1N LAN1_MDI1P LAN1_MDI3P LAN1_MDI2P LAN1_MDI3N Act LED Status Definition Link LED Status Definition Blinking Yellow Data Activity Steady Green 1Gbps Network Link...
  • Page 30 P2000 Series | User’s Manual Convertible Embedded Computer LINE_OUT1: Line-out Jack (Green) MIC1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Connector Type: 5-pin Phone Jack Definition Definition OUT_R MIC_R OUT_L MIC_L CN1: Mini PCI-Express Socket (SIM Card to Link)
  • Page 31 P2000 Series | User’s Manual Convertible Embedded Computer CN2: Mini PCI-Express Socket / mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D-...
  • Page 32 P2000 Series | User’s Manual Convertible Embedded Computer CN3: mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- CN-TB-QP22-44_V1.0...
  • Page 33 P2000 Series | User’s Manual Convertible Embedded Computer POWER3: Power Connector POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition Definition +12V +12V SATA1/SATA2: SATA with Power Connector Definition Definition SATA_TX+ SATA_TX- SATA_RX- SATA_RX+ +3.3V...
  • Page 34 P2000 Series | User’s Manual Convertible Embedded Computer SPK_L1: Left Internal Speaker Connector Definition OUT_L SPK_R1: Right Internal Speaker Connector Definition OUT_R USB2_1: USB2.0 Connector, Type A Definition USB2_DATA1- USB2_DATA1+ USB3_1、USB3_2 : USB 3.0 Connector, Type A Definition Definition USB3_RX0+...
  • Page 35 P2000 Series | User’s Manual Convertible Embedded Computer PWE_SW1: On / Off Switch FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X3 3-pin, 3.5mm pitch Definition PWR_SW Definition +12V SENSE Control DIO1(Out): Digital Input / Output Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch...
  • Page 36 P2000 Series | User’s Manual Convertible Embedded Computer Power Ignition Setting (CFM-IGN100 Only) Connector Location Definition Ignition Function Setting 24V_12V_1 24V/ 12V Power Switching for Ignition Board IGN Board Pin define (CFM-IGN100 Only) SW2: Set shutdown delay timer when ACC is turned off...

  • Page 37: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 38: Removing The Top Cover

    P2000 Series | User’s Manual Convertible Embedded Computer 3.1 Removing the Top Cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1. Loosen the six screws at front and rear panel.

  • Page 39: Installing A Half Size Mini Pcie Card

    P2000 Series | User’s Manual Convertible Embedded Computer 3.2 Installing a Half Size Mini PCIe Card 1. Locate the Mini PCIe socket on the system board. 2. Use two screws provided on adapter bracket to fasten the card and bracket together.

  • Page 40: Installing A Full Size Mini Pcie Card

    P2000 Series | User’s Manual Convertible Embedded Computer 4. Press down the card and secure it with two screws. 3.3 Installing a Full Size Mini PCIe Card 1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 41: Installing A Msata Card

    P2000 Series | User’s Manual Convertible Embedded Computer 3. Press the card down and secure it with 2 screws. 3.4 Installing a mSATA Card 1. Locate the mSATA slot on the system board. 2. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 42: Installing Antennas

    P2000 Series | User’s Manual Convertible Embedded Computer 3. Fasten the card with two screws. 3.5 Installing Antennas 1. Remove the antenna rubber covers on left and right panel. 2. Penetrate the antenna jack through the hole. CN-TB-QP22-44_V1.0...
  • Page 43 P2000 Series | User’s Manual Convertible Embedded Computer 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at the another end of the cable onto the card.

  • Page 44: Installing A So-Dimm Module

    P2000 Series | User’s Manual Convertible Embedded Computer 3.6 Installing a SO-DIMM Module 1. Locate the SO-DIMM socket on the system board. 2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly.

  • Page 45: Installing A Pci(E) Card

    P2000 Series | User’s Manual Convertible Embedded Computer 4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. 3.7 Installing a PCI(e) Card 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable.
  • Page 46 P2000 Series | User’s Manual Convertible Embedded Computer 3. Loosen one screw to remove the PCI bracket. 4. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly.

  • Page 47: Installing Thermal Pad Of Thermal Block

    P2000 Series | User’s Manual Convertible Embedded Computer 6. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. 7. Finally, fasten the screw that were previously loosen halfway to fix the retention module.

  • Page 48: Installing A Power Ignition Daughter Board (Optional)

    P2000 Series | User’s Manual Convertible Embedded Computer 3.9 Installing a Power Ignition Daughter Board (Optional) 1. Locate the power Ignition connector on system motherboard as indicated. 2. Insert the female connector of power ignition board to the male connector on system motherboard.

  • Page 49: Installing A Poe Daughter Board (Optional)

    P2000 Series | User’s Manual Convertible Embedded Computer 3.10 Installing a PoE Daughter Board (Optional) 1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of PoE daughter board to the male connector on system motherboard.

  • Page 50: Installing The Top Cover

    P2000 Series | User’s Manual Convertible Embedded Computer 3.11 Installing the Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover.

  • Page 51: Installing A Sata Hard Drive At Front Pane

    P2000 Series | User’s Manual Convertible Embedded Computer 3.12 Installing a SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket.
  • Page 52 P2000 Series | User’s Manual Convertible Embedded Computer 4. Hold the rotating arm to pull out the HDD bracket. 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot.
  • Page 53 P2000 Series | User’s Manual Convertible Embedded Computer 7. Put back HDD bay cover at front panel, and fasten it with two screws. 8. Fasten one screw to secure the HDD bracket on the system chassis. CN-TB-QP22-44_V1.0...

  • Page 54: Installing A Sata Hard Drive On Bottom Side

    P2000 Series | User’s Manual Convertible Embedded Computer 3.13 Installing a SATA hard drive on Bottom Side 1. Turn over the system to bottom side. Locate the cover of HDD compartment. 2. Loosen the two screws, then pull the cover to remove it.
  • Page 55 P2000 Series | User’s Manual Convertible Embedded Computer 4. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot.

  • Page 56: Installing A Sim Card

    P2000 Series | User’s Manual Convertible Embedded Computer 7. Put back the cover and fasten the two screws. 3.14 Installing a SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate.

  • Page 57: Installing A Cfast Card

    P2000 Series | User’s Manual Convertible Embedded Computer 3.15 Installing a CFast Card 1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card. 4. Fasten two screws to secure the cover plate.

  • Page 58: Connecting With Cv Display Module

    P2000 Series | User’s Manual Convertible Embedded Computer 3.16 Connecting with CV Display Module 1.Prepare the mounting kit that accompanied with P2000 as shown. (including two mounting brackets and one screw pack) 2. Remove six screws at left and right panel of PC2000.
  • Page 59 P2000 Series | User’s Manual Convertible Embedded Computer 4.Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2000).
  • Page 60 P2000 Series | User’s Manual Convertible Embedded Computer 6. Place the P2000 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2000 with the screw holes of display module underneath. Then slide the PC2000 carefully as indicated to have P2000 and display module connected together.

  • Page 61: Vesa Mount

    P2000 Series | User’s Manual Convertible Embedded Computer 3.17 VESA Mount The following picture indicates VESA mounting hole pattern on P2000, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2000+CV display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.

  • Page 62: Wall Mount

    P2000 Series | User’s Manual Convertible Embedded Computer 3.18 Wall Mount 1. Prepare wall mount kit (two wall brackets and one screw pack) that came with the P2000. De-attach six rubber holes from the mounting brackets as indicated. 2. Assemble two wall mount brackets by fastening three screws at each side.
  • Page 63 P2000 Series | User’s Manual Convertible Embedded Computer 3. Attach the P2000 to wall by fastening six screws through mounting holes at each side as illustrated. P2000 Wall CN-TB-QP22-44_V1.0...

  • Page 64: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 65: Bios Introduction

    P2000 Series | User’s Manual Convertible Embedded Computer 4.1 BIOS Introduction The BIOS (Basic Input/Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first...

  • Page 66: Main Setup

    P2000 Series | User’s Manual Convertible Embedded Computer 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu.

  • Page 67: Advanced Setup

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3 Advanced Setup 4.3.1 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. CN-TB-QP22-44_V1.0 67 67...

  • Page 68: Amt Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.2 AMT Configuration This screen allows users to configure related settings of Intel® Active Management Technology. ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution.

  • Page 69: Pch-Fw Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.3 PCH-FW Configuration ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function. CN-TB-QP22-44_V1.0...

  • Page 70: F81866 Super Io Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.4 F81866 Super IO Configuration The screen allows users to select options for the Super IO configuration, and change the value of the selected option. ■ Serial Port 1~6 Configuration ❑ Serial Port [Enabled] This item allows users to enable or disable serial port.

  • Page 71: Hardware Monitor

    P2000 Series | User’s Manual Convertible Embedded Computer ■ Watch Dog [Disabled] Enables or disables watch dog function. ■ Watch Dog Mode [Sec] Changes the Watch dog mode. Select [Sec] or [Min] mode. ■ Watch Dog Timer [0] User can set a value in the range of 0 to 255.

  • Page 72: S5 Rtc Wake Settings

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.6 S5 RTC Wake Settings ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system.

  • Page 73: Serial Port Console Redirection

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.7 Serial Port Console Redirection ■ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, COM3, Com4, COM5 console redirection function. 4.3.8 CPU Configuration CN-TB-QP22-44_V1.0...

  • Page 74: Sata Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer ■ Hyper-Threading [Enabled] Allows you to enable or disable Intel® Hyper-Threading function of processor. ■ Active Process Cores [All] Allows you to choose the number of active processor cores. Configuration options: [All] [1].
  • Page 75 P2000 Series | User’s Manual Convertible Embedded Computer ❑ Intel Rapid Recovery Technology [Enabled] Enables or disables Intel® Rapid Recovery Technology function. ❑ OROM UI and BANNER [Enabled] Enables or disables option ROM UI banner. ❑ OROM UI Normal Delay [2 Seconds] Changes the delay time for option ROM.

  • Page 76: Csm Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.10 CSM Configuration ■ CSM Support [Enabled] This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. ■ Boot option filter [Legacy only] This item allows users to select which type of operating system to boot.
  • Page 77 P2000 Series | User’s Manual Convertible Embedded Computer ■ Video [Legacy] This item allows users to select whether to enable the UEFI or legacy option ROM for the video devices. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only.

  • Page 78: Asmedia Sata Controller Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. CN-TB-QP22-44_V1.0...

  • Page 79: Usb Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer 4.3.12 USB Configuration ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected.

  • Page 80: Chipset Setup

    P2000 Series | User’s Manual Convertible Embedded Computer 4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ VT-d [Enabled] This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function.

  • Page 81: Pch-Io Configuration

    P2000 Series | User’s Manual Convertible Embedded Computer Above 4GB ■ MMIO BIOS assignment [Enabled] This item allows user to enable or disable the Above 4GB Memory Mapped IO BIOS assignment. ■ Graphics Configuration ❑ Primary Display [Auto] This item allows users to select which graphics device is used as primary display.
  • Page 82 P2000 Series | User’s Manual Convertible Embedded Computer PCI Express Root Port (Mini PCIe) ❑ PCI Express Port 5 [Enabled] Allows you to enable or disable PCI Express Port 5. ❑ PCIe Speed [Auto] Allows you to select PCI Express interface speed.

  • Page 83: Security Setup

    P2000 Series | User’s Manual Convertible Embedded Computer 4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility.

  • Page 84: Boot Setup

    P2000 Series | User’s Manual Convertible Embedded Computer 4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [On] Allows you to select the power-on state for keyboard NumLock.

  • Page 85: Save & Exit

    P2000 Series | User’s Manual Convertible Embedded Computer 4.7 Save & Exit 4.7.1 Save Changes and Exit This item allows you to exit system setup after saving changes. 4.7.2 Discard Changes and Exit This item allows you to exit system setup without saving changes.

  • Page 86: Chapter 5 Product Application

    Chapter 5 Product Application...

  • Page 87: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O for Cincoze DA series product Item Standard GPIO70 (Pin103)
  • Page 88 P2000 Series | User’s Manual Convertible Embedded Computer 5.1.1.2 Programming Guide To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers...
  • Page 89 P2000 Series | User’s Manual Convertible Embedded Computer 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. CN-TB-QP22-44_V1.0...
  • Page 90 P2000 Series | User’s Manual Convertible Embedded Computer CN-TB-QP22-44_V1.0...
  • Page 91 P2000 Series | User’s Manual Convertible Embedded Computer 5.1.1.4 Sample Code in C Language 5.1.1.4 .1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device>...
  • Page 92 P2000 Series | User’s Manual Convertible Embedded Computer 5.1.1.4 .2 Control of GP80 to GP87 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device>...
  • Page 93 // Select logic device 06h WriteByte(AddrPort, 0x60) // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default GPIO Port base address is 0xA00h CN-TB-QP22-44_V1.0...
  • Page 94 P2000 Series | User’s Manual Convertible Embedded Computer 5.1.1.6 DATA Bit Table (DIO) value = DI1 = DO1 value = DI2 value value = DO2 = DI3 = DO3 value value = DI4 = DO4 value value = DO5 value...

  • Page 95: P2000 Digital I/O (Dio) Hardware Specification

    P2000 Series | User’s Manual Convertible Embedded Computer 5.1.1.7 DIO I/O Port Address DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DO8 DO7 DO6 DO5 DO4 DO3 DO2 DO1 Pin Definition Data Bits 0xA03 0xA02 I/O Port address 5.2 P2000 Digital I/O (DIO) Hardware Specification •...

  • Page 96: P2000 Dio Connector Definition

    P2000 Series | User’s Manual Convertible Embedded Computer 5.2.1 P2000 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch DIO1(Out) DIO2(IN) Definition Definition DC INPUT DC INPUT CN-TB-QP22-44_V1.0...
  • Page 97 P2000 Series | User’s Manual Convertible Embedded Computer CN-TB-QP22-44_V1.0...
  • Page 98 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
