Summary of Contents for Reinecker MANO touch 4
- Page 1 User manual MANO touch 4 Please read this user manual carefully prior to installation, use and maintenance for your own safety and in order to avoid damages on your system.
-
Page 4: Table Of Contents
MANO touch 4 . . . . . . . . . . . . . . . . . . . - Page 5 Icon arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Auto focus .
-
Page 6: General Information
The device may not be used in the patients environment . Storage of the user manual The user manual is an essential part of MANO touch 4 . Please keep the manual in a safe place for future reference . -
Page 7: Product Description

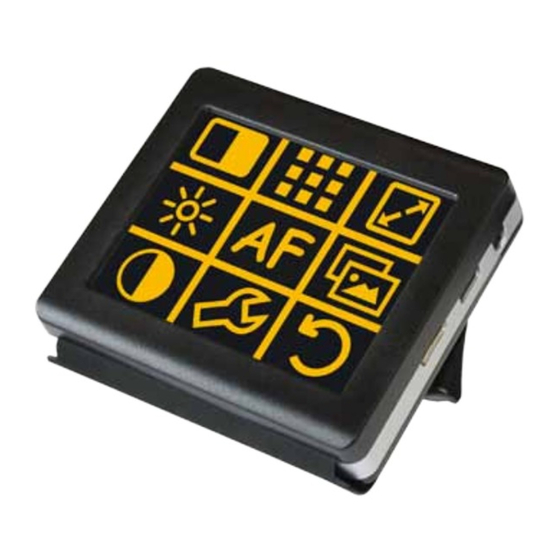

Product description MANO touch 4 is an electronic magnifier for text and pictures for perma- nent and private use . • clear, virtual touch display (approx . 9 cm in diagonal) • easy, intuitive operation via virtual, customisable buttons with optional tactile feed back (sensitively or acoustically) •... -
Page 8: Evolution And Lifetime Of Products
. Combination with other products In case the end user intends to use the MANO touch 4 in combination with another medical devices, it is recommended to get in contact with Reinecker Vision GmbH or with a licensed distributor . -
Page 9: Special Advice For Transport And Storage
• Relative air humidity: 30% to 80% Disposal of the unit according to EU directive 2002/96/EEC MANO touch 4 contains of electronic components . To avoid damage to the environment, the country-specific rules have to be respected . Caution: The use of any other equipment might lead to an increased electro-... -
Page 10: Safety Instructions
Reinecker Vision GmbH . The use of any other equipment might lead to a product damage . 4 . Do not expose MANO touch 4 to direct sunlight or to very hot or cold environment, as this would harm the picture quality . -
Page 11: Instructions On The Adequate Use Of The Electronic Magnifier
MANO touch 4 Scope of delivery The following components are integrated in the delivery: • HD-magnifier MANO touch 4, incl . protective cover • Power supply (5V DC / 2,4A) incl . connection cable • 4 removable country adapters (EU, USA, UK, AUS) •... -
Page 12: Description Of Ports And Controls
Description of Ports and Controls 1. Touch display (with approx . 9cm screen diagonal) 2. Mounting ear (for hand strap) 3. USB type-A (connection for future applications) 4. ON/OFF slider 5. Multifunctional protective cover (with magnet) 6. LED light 7. Camera 8. -
Page 13: Touch Display
HDMI connection With the HDMI output you can connect your TV, external monitor or other devices with a HDMI connection with MANO touch 4 . The camera picture will be displayed on the external device in high resolution picture quality . -
Page 14: Touch Screen Functions
Touch screen functions When the device is switched ON a magnified image will be displayed (in colour mode) . Depending on the configuration settings some control elements can be dis- played or not (automatically or manually) . You can also choose to display or hide them permanently . -
Page 15: Description Of The Menu Functions
Zoom in and Zoom out Tap on the Plus or Minus icon and choose the requested zoom factor . Colour selection and menu selection Briefly tap this icon in order to scroll within the (up to 14) colours . Tap and hold this icon in order to activate the menu selection . Camera icon Briefly tap the camera icon in order to capture your current picture and to store it . -
Page 16: Colour Mode
Colour mode Icon Description Briefly tap this icon . All available colours will be displayed . All colours marked with a green tick are activated . All col- ours with no green tick are deactivated . Select the colours you want to activate and mark them with a green tick in order to activate them . -
Page 17: Back (To Previous View)
Back (to previous view) Icon Description Once you have finished a menu adjustment, tap this icon in order to return to the previous display . Brightness Icon Description Tap on this icon in order to adjust brightness to your individual needs . Tap and hold the brighness slider and move it in order to adjust your best suited brightness level . -
Page 18: Icon Arrangement
Icon arrangement Icon Description Tap on this icon in order to customize your icons display on screen . Just by tapping to one of the following icon structures, it will be activated . Tap briefly: shows previous structure Tap briefly: shows next structure Icon structure 1 Icon structure 2 Icon structure 3... -
Page 19: Advanced Adjustments
Advanced adjustments Icon Description Tap this icon to open your tool bar . Tap briefly: shows previous options Tap briefly: shows next option Icon Description Symbol Description Show time Time settings Set your hours and Save time settings and 14:20 minutes by tapping the exit tool bar . - Page 20 Icon Description Distortion correction (or: extended lens shift control) When inclining your magnifier, a distortion may occur (see below) . You have three possibilities to minimize this effect in order to see a real picture . With distortion correction Without distortion correction Tap this icon in order to Icon select from three possibili-...
- Page 21 Icon Description Touch this icon to get the software Information version of your device . Icon Description Tab this icon in order to recall Factory reset factory settings . Press briefly to get to the previous adjustment Press briefly to get to the previous adjustment When you select an icon by touching it, it will be confirmed by a green arrow .
-
Page 22: Color Scheme Icon Settings
Color scheme icon settings Icon Description Tap this icon in order to individually set your icons . The chosen setting will be activated by tapping . Tap briefly: shows previous icon view Tap briefly: shows next icon view You can adjust various icon settings according to your individual preferences:... -
Page 23: Image Gallery
Image gallery Icon Description Tap this icon in order to recall your picture gallery . Briefly tap a selected image to show it on full screen . While looking at pictures in full-screen mode, you can modi- fy zoom factor and colour mode . Tap briefly: show previous pictures Tap briefly: show next pictures Exit picture gallery... -
Page 24: Battery Use
Battery use Note: Best conditions for a long life span of your battery is to follow the guidelines below: 1 . Make sure that the battery has been fully charged prior to first use or if the device haven‘t been in use for a longer period . 2 . -
Page 25: Replacement Of Batteries
. Then close the cover again . MANO touch 4 is now ready for operation . Disposal of batteries Batteries must be disposed according to the country specific rules . They shall never be burned . -
Page 26: Trouble Shooting
Auto focus does not react . • Possibly the manual focus is set . In this mode MANO touch 4 only focuses, if the focus button is pressed . To avoid this you can change from manual focus to auto focus mode in the menu setting . -
Page 27: Technical Details
Technical details Type MANO touch 4 (MANOT040) Screen LCD Display with approx . 9 cm screen diagonal Camera HD, 60 fps Magnification levels without reading/writing stand approx . 1 .0x - 20x Magnification levels with a reading/writing stand approx . 2 .5x - 10x... -
Page 28: Warranty Information
Warranty Information 1 . Reinecker Vision GmbH grants a warranty of 24 months (warranty period only valid within the European Union) against defects in manufacture counted from date of invoice ex Reinecker Vision GmbH . 2 . All parts that have been replaced when repairing the unit will automati- cally become property of Reinecker Vision GmbH . -
Page 29: Notes
Notes... - Page 31 Type: MANO touch 4 (MANOT040) Serial number: Manufacturer: Reinecker Vision GmbH Final examination: Power supply: 100 VAC – 240 VAC 50-60 Hz Via power supply unit: 5V DC / 2,4 A Power consumption: max . 12 watt...
- Page 32 Reinecker Vision GmbH In case service is necessary, please International Contact contact your autho- sales department, customer relations: rized distributor . Sandwiesenstraße 19 DE-64665 Alsbach- Hähnlein customer service: Erlenweg 3 DE-64665 Alsbach-Hähnlein Tel .: +49 6257 9311-0 Fax: +49 6257 9311- 8230 E-Mail: international@reineckervision .de...
