- Page 1 User manual topolino tablet Please read this user manual carefully prior to installation, use and maintenance for your own safety and in order to avoid damages on your system.
- Page 3 Die CE-Kennzeichnung auf dem Gerät dokumentiert diese Übereinstimmung. The CE mark on the system points out this accordance. M. Reinecker Geschäftsführer Alsbach-Hähnlein, M. Reinecker General Manager 15.09.2020 Ort und Datum der Ausstellung Name und Unterschrift des Befugten Name and signature of the authorized person...
-
Page 4: Table Of Contents
Disposal or transfer of the device ................8 Power supply .......................8 Important note for scanning and reading of medication leaflets .........8 II. Safety instructions ....................9 III. Instructions for topolino tablet .................10 Scope of supply ......................10 Setting up the system ....................10 Initial operation ......................10 Folding up the topolino tablet ..................10... - Page 5 Using the distance camera ..................17 Controls on top of the distance camera .............17 Return to document mode ..................17 Split screen function ON/OFF ................17 Exiting the program ....................18 Text recognition and TTS function ..............18 Use read-aloud function for saved images ............18 TTS mode ........................19 Operation in the original view ................19 Operation in wrapped mode ................19...
-
Page 6: General Information

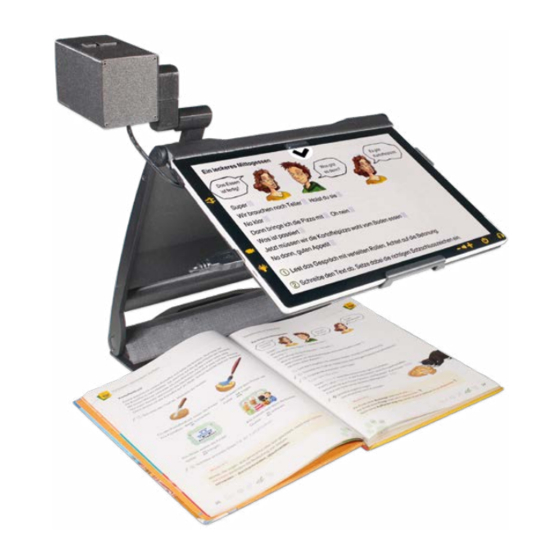

The user manual is an essential part of your reading system. Please keep the book- let in a safe place for future reference. Product description topolino tablet is an opto-electronic reading system with an integrated camera to magnify text and pictures and to convert print into speech. ●... -
Page 7: Purpose
Safety advice topolino tablet has to be installed in closed and dry rooms only. Do not plug topolino tablet into an electrical circuit that is also being used for any life sustaining or support systems. -
Page 8: Special Care Needed When Transporting And Storing
To reset the system to factory defaults, please follow the instructions in the Windows Help on support.microsoft.com Power supply Only use the original power supply which is included in the delivery by Reinecker Vision GmbH. Caution: The use of any other power supply besides the original, might lead to an increased electro-magnetic emission and to product damage. -
Page 9: Ii. Safety Instructions
2. Do not touch the AC adapter with wet hands. 3. Only use the original power supply which is included in the delivery by Reinecker Vision GmbH. The use of any other equipment might lead to a product damage. -
Page 10: Iii. Instructions For Topolino Tablet
AC adapter. Folding up the topolino tablet topolino tablet is supplied with a stand that holds the display in a suitable reading position. The stand is equipped with a carrying handle for secure transport. To use the topolino tablet, the stand must be folded up (see illustration) and the display must be brought into a comfortable reading position. - Page 11 To unfold the system, hold the base plate firmly with one hand so that you can use the other hand to push the upper side of the stand upwards using the recessed grip. Then align the display in the optimal reading position for you. cover recessed grip...
-
Page 12: Ports And Buttons On The Device
Ports and buttons on the device DC input socket Headphone/ USB 3 port loudspeaker jack USB-C port Volume button Power button 1) DC input socket Connection for the power supply unit (DC plug) Note: Only use the supplied AC adapter for mains operation or to charge the battery. -
Page 13: Illumination Of The Reading Templates
6) Headphone/loudspeaker jack For connecting audio output devices (e.g. speakers, headphones) or a headset with microphone Illumination of the reading templates Illumination for better image quality and increasing accuracy of the text recognition is integrated in the stand located directly under the display. On the left side of the illu- mination there is a small switch which can be set in three different positions: Auto ON: Move the switch to the rear to turn illumination permanently ON. -
Page 14: Replacing The Illumination
The illumination of the stand is equipped with an LED light source. If it is necessary to replace the illumination, this must be carried out by an authorised specialist or by the customer service of Reinecker Vision GmbH. Connecting the distance camera To attach the distance camera, insert the spigot of the camera mount into the recess provided on the top right of the tripod. -
Page 15: Operation Of Topolino Tablet
Operation of topolino tablet topolino tablet can be operated easily and intuitively via the touch screen. Alternatively, you can connect mouse and keyboard (e.g. with Bluetooth) and control the application software with the mouse or keyboard shortcuts. For a description of the shortcut keys, see „Keyboard shortcuts“... -
Page 16: The Topolino Tablet User Software
The topolino tablet user software If the distance camera is connected, two different views are available. In Document Mode, you can read and write using the camera located under the display. In Distance Mode, you can view the image from the Distance Camera. For example, if you want to copy a blackboard image, you can activate screen splitting and view both camera images at the same time. -
Page 17: Change Color Modes
Change color modes Tap the color modes icon to choose between the different screen color modes: contrast-optimized true color mode true color mode black on white white on black yellow on black black on yellow green on black black on green red on black black on red blue on yellow... -
Page 18: Exiting The Program
Exiting the program If you want to quit the topolino tablet software, tap on the X, then you will return to the Windows start interface (desktop). If you tap the icon, e.g. in read-aloud mode or in the settings, the current selection is canceled. -
Page 19: Tts Mode
Starting text recognition and reading If the image is correctly rotated and the column recognition is adapted to the document, you can have the visible text in the image read aloud. Tap on the read aloud symbol at the top right of the display and the text in the image is recognized and read aloud. -
Page 20: Save And Open Images
To take a picture, press the blue disk icon first, followed by pressing the green camera icon. This image will be saved within the folder „images“ topolino tablet, sorted by date of capture. This function is recommended if you need to recall an frequently. If you only need the captured text without the image, you can also capture the live image and then save only the text. -
Page 21: Settings
Settings Tap the Settings icon to open the Settings menu. The following categories are available: ● General ● Speech ● Reading Ending the menu By tapping on “Exit” you leave the settings and return to the previous view. General The following settings can be made here: ●... -
Page 22: Speech
Speech The following settings can be made here: ● select the reading language ● select the voice ● set the speech volume ● set the speech speed Reading The following settings can be made here: ● select the visualization mode while using the TTS function: original or wrapped ●... -
Page 23: Remove The Display From The Stand (Not Recommended)
Remove the display from the stand (not recommended) To remove the display from the stand, press the ejector bracket on the top right plate of the stand down slightly. Then gently slide the display to the right out of the stand. To replace the display, first press the ejector bracket down slightly and slide the display carefully to the left into the stand. -
Page 24: Keyboard Shortcuts
Keyboard shortcuts key(s) Function [ CTRL + ALT + T ] open the program „topolino-tablet“ [ Esc ] exit program or menu [ + ] zoom in [--] zoom out [ Enter ] open the menu bar and focus [ F ] focus [ C ] toggle color mode... -
Page 25: Handling The Battery
When the battery is fully charged, the operating time in tablet mode is up to approx. 10.5 hours. ● When the “topolino tablet” is turned OFF, the charging time of the battery is approx. 1.5 hours. Charging another device at the USB port of the power supply On the power supply unit there is a USB port which can be used to charge another device (e.g. -
Page 26: Warranty Information
Warranty Information 1. Reinecker Vision GmbH grants a warranty of 24 months (warranty period only valid within the European Union) against defects in manufacture counted from date of invoice ex Reinecker Vision GmbH. 2. All parts that have been replaced when repairing the unit will automatically become property of Reinecker Vision GmbH. -
Page 27: Technical Details
1.5 hours 15V DC power supply approx. 4,0 A (device), 5V DC /approx. 1 A (USB port) weight approx. 3.0 kg topolino tablet ( TOPOTAB2 ) Type: Serial number: Manufacturer: Reinecker Vision GmbH Final examination: Power supply: 100 VAC –... - Page 28 Reinecker Vision GmbH In case service is necessary, please International Contact contact your authorized distributor. sales department, customer relations: Sandwiesenstraße 19 DE-64665 Alsbach-Hähnlein customer service: Erlenweg 3 DE-64665 Alsbach-Hähnlein Tel.: +49 6257 9311- 0 Fax: +49 6257 9311- 8230 Email: international@reineckervision.de www.reineckervision.com...
