Altronix Trove2KA2 Installation Manual page 4

1. Fasten metal and snap on standoffs (provided) to pems which match the hole pattern for Altronix Power Supply/Chargers or Altronix
Sub-Assembly boards (Fig. 3, 3a, pg. 4). Note: Please fasten metal and snap on standoffs in the proper locations (Fig. 3, pg. 4).
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 3, pg. 4).
3. Mount Altronix T16175 transformer to backplane using four locking nuts and TKA3BK: tighten top two lock nuts first, then, utilizing
the TKA3BK bracket, insert pems through T16175 feet and backplane and tighten locknuts to the pems protruding through the
backplane. (Fig. 3b, pg. 4).
4. Mount appropriate Keyscan boards into the correct positions (Fig. 3, pg. 4) by postioning standoffs over appropriate holes on the
backplane and depress down on board to secure standoff to the backplane (Fig. 3c, pg. 4).
5. Fasten backplane to Trove3 enclosure utilizing pan head screws (provided).

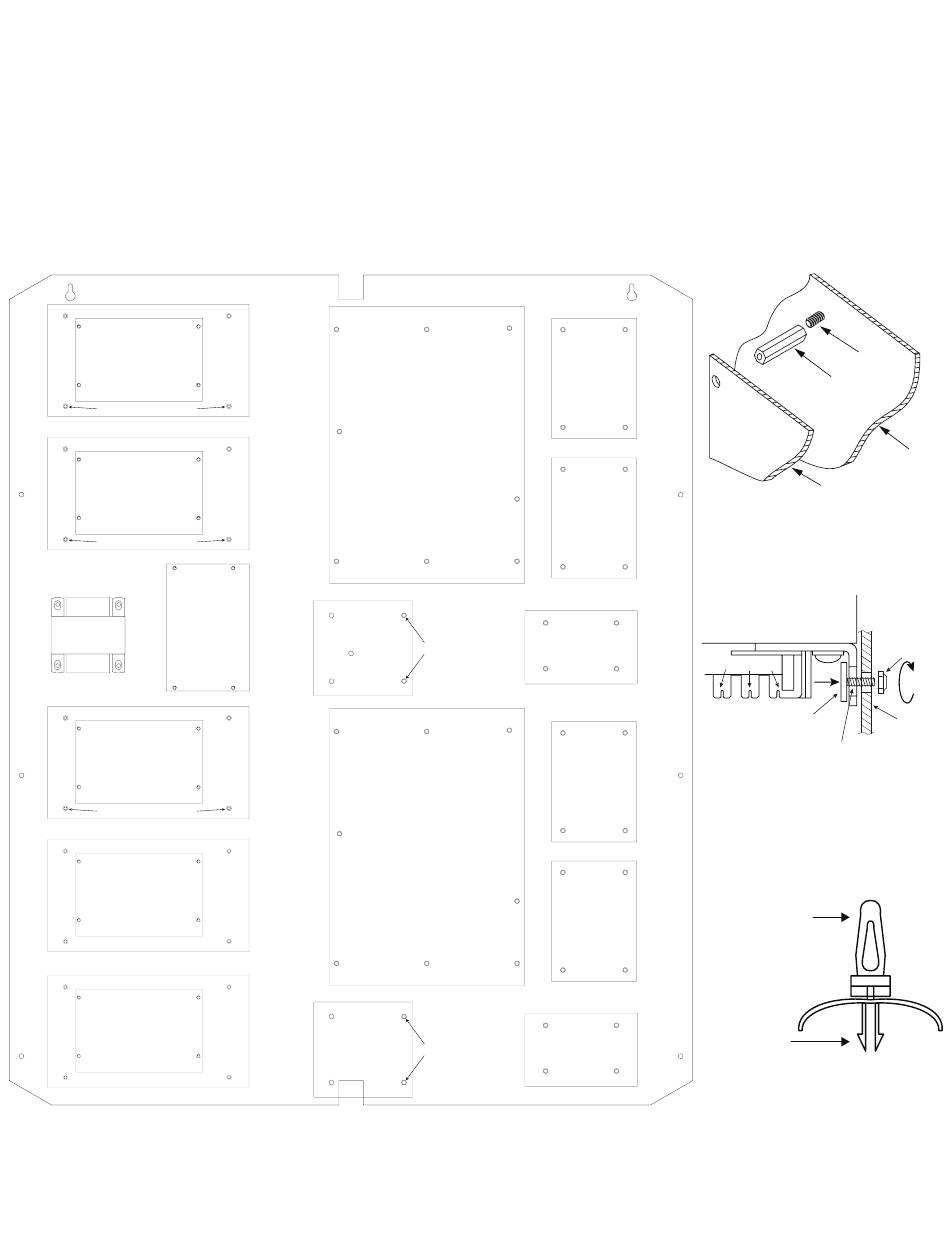

Fig. 3
Altronix
Power Supply or
Sub-Assembly
Metal Standoff Placement
Altronix
Power Supply or
Sub-Assembly
Metal Standoff Placement
Altronix
T16175
Altronix
Power Supply or
Sub-Assembly
Metal Standoff Placement
Altronix
Sub-Assembly
Altronix
Sub-Assembly
- 4 -
TKA3: Configuration of Altronix Power Supply
and/or Sub-Assembly Boards and Keyscan Boards
Altronix
Sub-
Assembly
Keyscan
DPS15
Keyscan
DPS15
Keyscan
OCB8
Keyscan
CA250B,
CA4500B,
CA8500B
Keyscan
OCB8
Keyscan
Locknut
CIM
Keyscan
OCB8
Keyscan
CA250B,
CA4500B,
CA8500B
Keyscan
OCB8
Keyscan
Locknut
CIM
Pem
Nylon or
Metal
Standoff
Backplane
Sub-Assembly
T16175
Terminals
Mounting Bracket
Mounting
Hole
Plastic Standoff
pre-mounted into
Keyscan modules
Insert into
TKA2 or
TKA3 backplane
Trove2KA2 / Trove3KA3
Fig. 3a
Fig. 3b
Lock Nut
TKA3
Fig. 3c
