Altronix Trove2KA2 Installation Manual page 2

Trove2KA2/Trove3KA3 accommodates various combinations of Keyscan boards with or without Altronix power supplies and accessories for
access systems.
Trove2KA2
Trove2 enclosure with TKA2 Altronix/Keyscan backplane
• Includes: tamper switch, cam lock, and mounting hardware.
Enclosure Dimensions (H x W x D):
27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm).
TKA2
Altronix/Keyscan backplane only
• Includes mounting hardware.
Dimensions (H x W x D):
25.375" x 19.375" x 0.3125" (644.5mm x 482.6mm x 7.9mm).
TKA2 accommodates a combination of the following:
Altronix Modules:
• One (1) AL400ULXB2, AL600ULXB, AL1012ULXB,
AL1024ULXB2, eFlow4NB, eFlow6NB, eFlow102NB, or
eFlow104NB.
• One (1) T16100, ACM4(CB), ACM8(CB), MOM5, PD4UL(CB),
PD8UL(CB), PDS8(CB), VR6.
Keyscan Modules:
• One (1) CA250B, CA4500B, CA8500B, one (1) DPS-15,
one (1) CIM.
• Two (2) OCB8
• UL 294 - 6th edition: Line Security I, Destructive Attack I, Endurance IV, Stand-by Power II*.
*Stand-by Power Level I if no battery is supplied.
• This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
• CE European Conformity.
1. Remove backplane from enclosure prior to mounting (do not discard hardware).
2. Mark and predrill holes in the wall to line up with the top keyholes in the enclosure. Install the upper fasteners and screws in the wall
with the screw heads protruding. Place the enclosure's upper keyholes over the screws; level and secure.
Mark the position of the lower holes. Remove the enclosure. Drill the lower holes and install the fasteners.
Place the enclosure's upper keyholes over the upper screws. Install the lower screws and make
sure to tighten all screws (Enclosure Dimensions, pg. 6, 8).
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location,
opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2"
from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel
input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4. Mount Altronix/Keyscan boards to backplane, refer to pages 3, 4.
Hardware:
Nylon Standoff |
- 2 -
Specifications:
Agency Listings:
Installation Instructions for Trove2/Trove3:
Metal Standoff |
Overview:
Trove3KA3
Trove3 enclosure with TKA3 Altronix/Keyscan backplane
• Includes: (2) tamper switches, cam lock, and mounting hardware.
Enclosure Dimensions (H x W x D):
36.12" x 30.125" x 7.06" (917.5mm x 768.1mm x 179.3mm).
TKA3
Altronix/Keyscan backplane only
• Includes mounting hardware.
Dimensions (H x W x D):
34" x 28" x 0.3125" (863.6mm x 711.2mm x 7.9mm).
TKA3 accommodates a combination of the following:
Altronix Modules:
• One (1) AL400ULXB2, AL600ULXB, AL1012ULXB,
AL1024ULXB2, eFlow4NB, eFlow6NB, eFlow102NB, or
eFlow104NB.
• One (1) T16100, ACM4(CB), ACM8(CB), MOM5, PD4UL(CB),
PD8UL(CB), PDS8(CB), VR6.
Keyscan Modules:
• Two (2) CA250B, CA4500B, CA8500B, two (2) DPS-15,
two (2) CIM.
• Four (4) OCB8
Pan Head Screw |

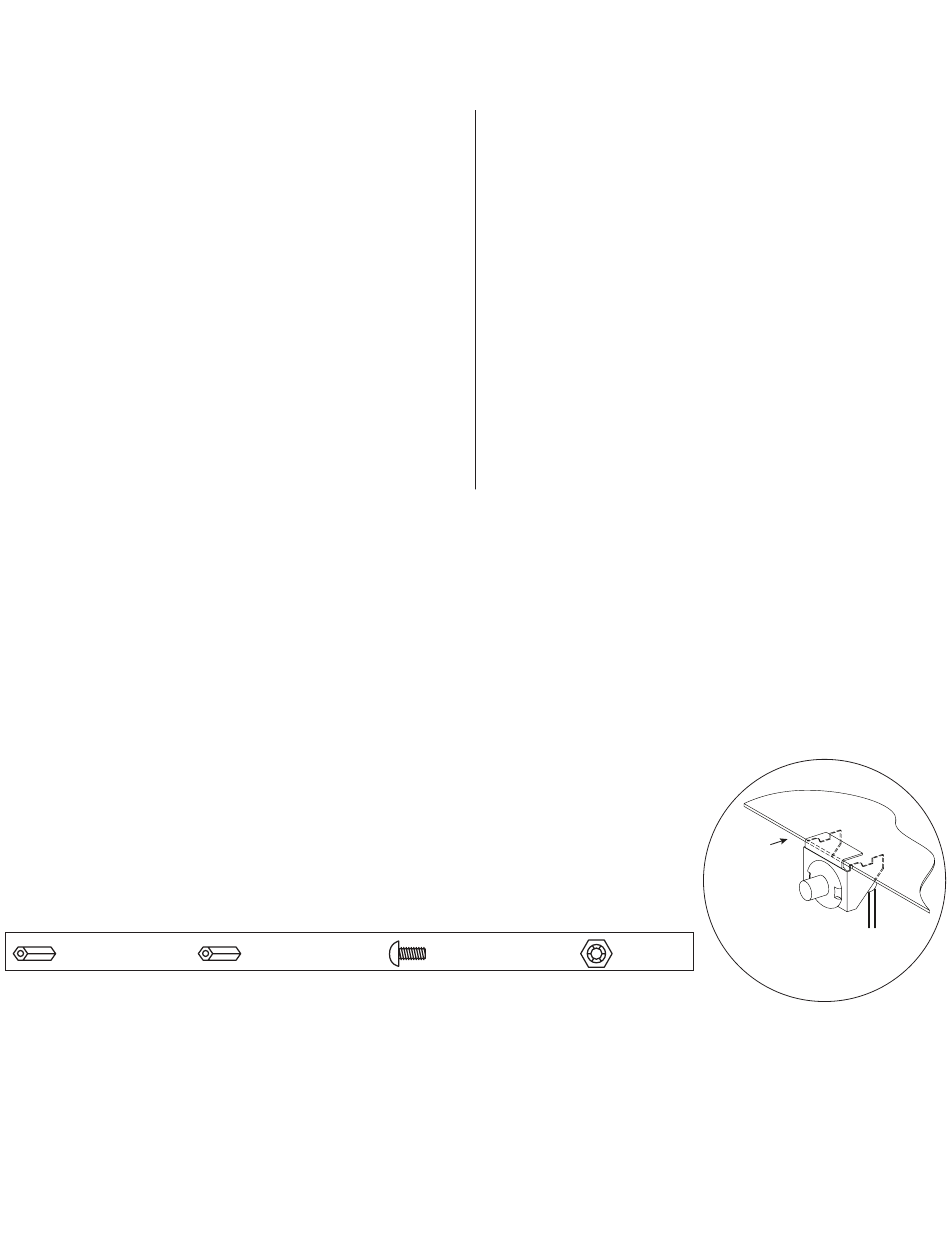

Edge of
Enclosure
Tamper Switch
(provided)
To Access Control Panel or
Lock Nut
UL Listed Reporting Device
Fig. 1
Enclosure
Trove2KA2 / Trove3KA3
