Page 1

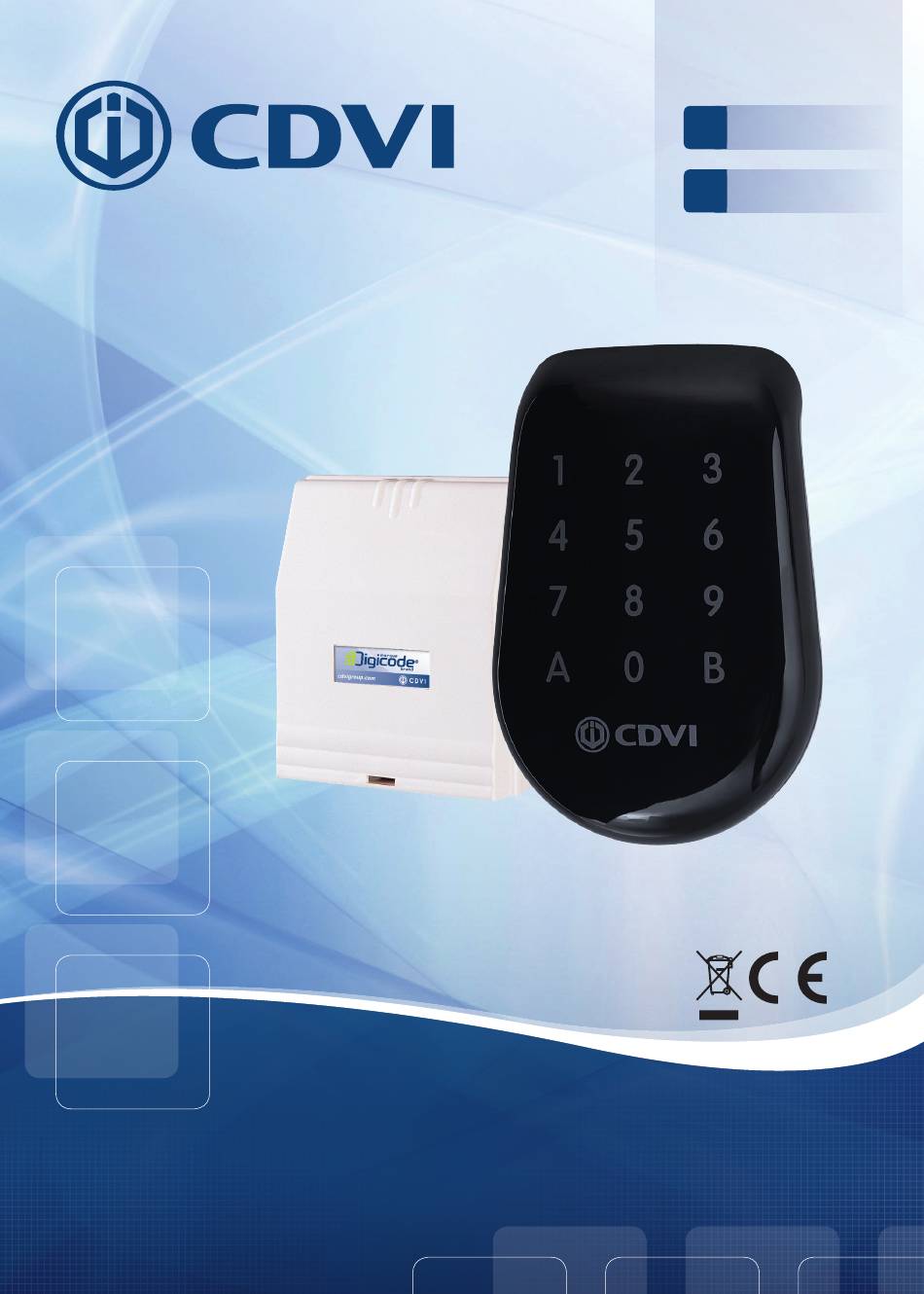

FRANCAIS ENGLISH SOLAR2R Centrale autonome double technologie proximité/Digicode ® Dual Technology Digicode /Proximity Standalone ® The installer’s choice cdvigroup.com...
Page 2
TMSOLAR2R : 1 lecteur seul (en option) Bande de fréquence : 119 - 135 KHz. Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation. Plan M184 Puissance maximale transmise <66 dBμA/mA This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
MANUEL D’INSTALLATION SOLAR2R Centrale autonome double technologie proximité/Digicode ® 4] MONTAGE Montez impérativement le joint d’étanchéité 5] PROGRAMMATION 1. Configuration du lecteur : - Basculez les deux dipswitchs des lecteurs vers le bas (sur OFF), débranchez le lecteur puis le rallumer.
Page 4
MANUEL D’INSTALLATION SOLAR2R Centrale autonome double technologie proximité/Digicode ® 6] PROGRAMMATION Tapez 2 fois le code maître (12345 par défaut) 2 bips LED orange ON Mode de Programmation Programmation Tapez le rang du fonctionnement temporisation temporisation badge du clavier du clavier 1 du clavier 2 000 à...
Page 5
MANUEL D’INSTALLATION SOLAR2R Centrale autonome double technologie proximité/Digicode ® Valeurs par défaut - Tempo inter termes : 10 secondes - Nombre de termes : 5 - Mode : badges ou codes - Code maître : 1 2 3 4 5...
Page 6
MANUEL D’INSTALLATION SOLAR2R Centrale autonome double technologie proximité/Digicode ® 7] SCHÉMA DE RACCORDEMENTS 12 VDC ADC335 Rouge Noir mémoire SPR12, Vert Rouge SR12, … PROG V5SR, SIR12, … Porte 2 idem Porte 1 ci-dessus Contact Porte 2 Contact Porte 1 Jaune Bleu foncé...
Frequency band: 119 - 135 KHz. *SOLAR2R : remote controller + 1 reader Maximum transmitted power <66 dBμA/mA Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation. Plan M1849 TMSOLAR2R : 1 reader only (optionnal) This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
INSTALLATION MANUAL SOLAR2R Dual Technology Digicode / Proximity Standalone ® 4] MOUNTING Place imperatively the foam seal 5] PROGRAMMING 1. Reader configuration : - On readers position the two dipswitchs to OFF, unplug the reader and start again. 1 reader configuration : - Press 1B, the reader is blue and position two dipswitchs to ON.
INSTALLATION MANUAL SOLAR2R Dual Technology Digicode / Proximity Standalone ® 7] PROGRAMMING CHART Enter the Master code twice (12345) 2 beeps are emitted Orange LED ON Keypad reading Time relay 1 Time relay 2 Enter the card mode programming programming...
