Edition 12/2005
Warning
Do not use a switching power
supply because of the interference
radiation that may disturb the
reading of the badges
Ne pas utiliser d'alimentation
à découpage à cause de
rayonnements parasites pouvant
perturber la lecture des badges.
Input voltage
12VAC/DC
This device comes with a varistor.
The varistor must be connected to the strike terminal
(electromagnet...) operated by the device.
If this product works with many strikes, each of them
should have a varistor.
The varistor controls the overload produced by the strike
coil – self-effect.
If you are using a « Shear Lock » electromagnetic lock, it is recommended to
use a separate power supply than the one connected to the DG502U!
12 3
...
ST1
RL1
R
C
T R C T S S B M E 1 2 3 4 5 6 12 V 12
strike
V1
Terminal
B
E
M
R
C
T
V1,V2
ST1
S,S
DG502U/A
DG502U/P
2-DOOR CONTROLLER
500 USERS
1
2
4
5
7
8
0
RL2
PB1
M
PB2
A
V2
G
N
E
T
Description
Request-to-Exit input 1
Request-to-Exit input 2
Common REX inputs
N/C Contact door
Common
N/O Contact door
Varistor
Jumper for reset
Tamper Switch output
3
6
9
#
V

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG502U/A and is the answer not in the manual?

Questions and answers

Summary of Contents for CDVI DG502U/A

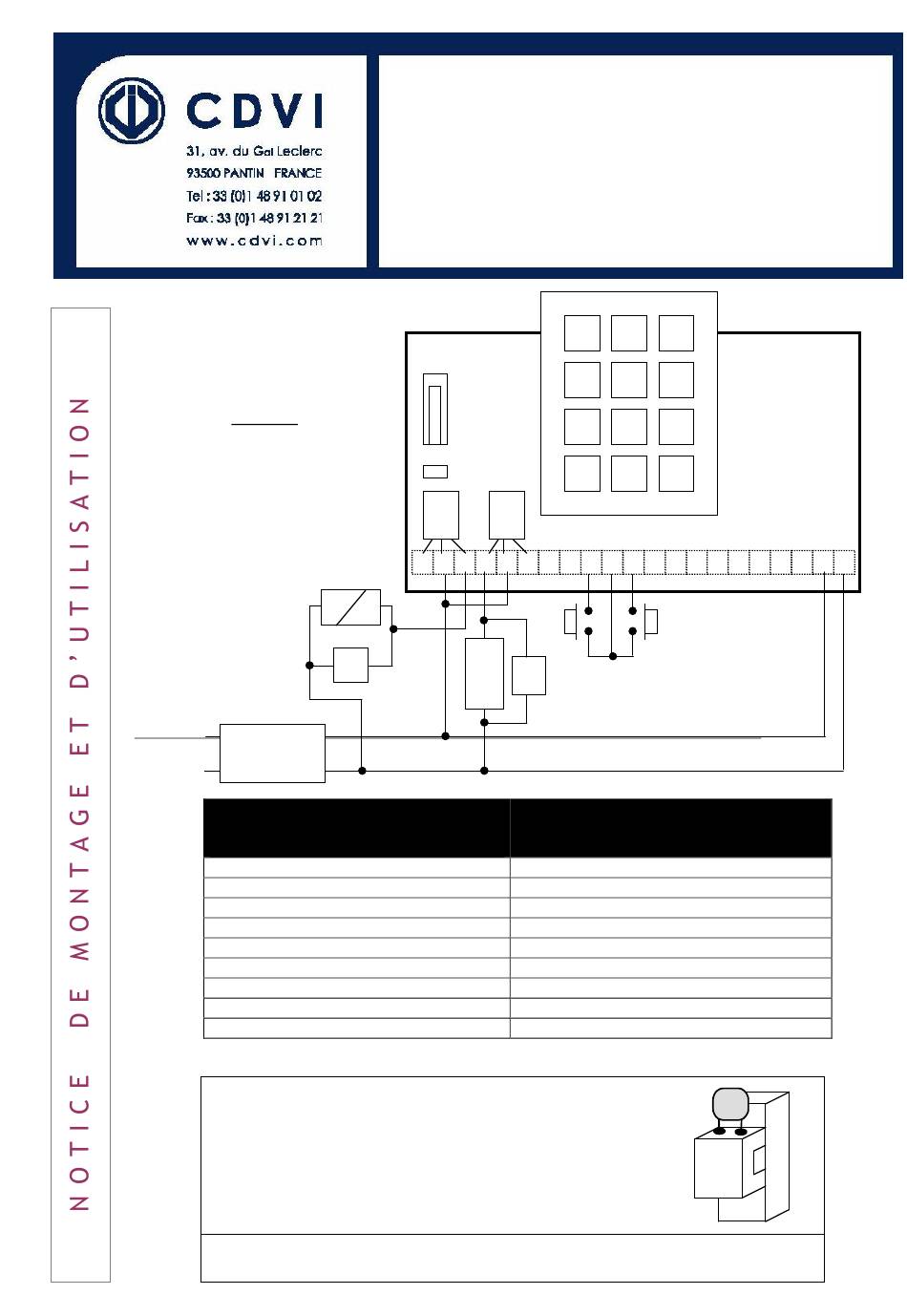

  • Page 1 Edition 12/2005 DG502U/A DG502U/P 2-DOOR CONTROLLER 500 USERS Warning Do not use a switching power 12 3 …  supply because of the interference radiation that may disturb the reading of the badges Ne pas utiliser d’alimentation T R C T S S B M E 1 2 3 4 5 6 12 V 12 à...
  • Page 2: Technical Specifications

    Edition 12/2005 Technical specifications Input voltage 12 VAC/DC Outputs 2 form C relays N/O and N/C 3A @ 125V Tamper switch 500 MA @ 50 VAC/DC Cardholders 500 badges Master code 5-digit master code Inputs 2 REX inputs Controller 12-digit keypad with built-in buzzer (Audible feedback) Distance between the 60 cm minimum, remote readers and the...
  • Page 3 Edition 12/2005 Changing the Master Code 1. Enter the master code twice (for the first use the master code default value is 12345). 2 beeps and the orange LED lights on confirming that you are in programming mode. 2. Enter *3 then the 5-digit new master code. The LED goes off during 1 second and an audible beep indicates that the new master code is memorised.
  • Page 4 Edition 12/2005 Adding a Badge The badges can be programmed by group according to the access level selected in menu *4. You can program a series of badges then change the access level in menu *4 and program another series of badges. 1.
  • Page 5: Relay Outputs

    Edition 12/2005 Note: the time outputs and the enrolment reader are not set to their default settings. Relay Outputs Badge 1 – Access Level 01 Controller built-in reader activates relay 1 Remote reader 1 activates relay 1 Badge 2 – Access Level 02 Controller built-in reader activates no relays Remote reader 2 activates relay 2...
  • Page 6 Edition 12/2005 Template 85 mm 3 x 6 mm DG 502 25 mm Remote Reader 61,5m 99 mm...
  • Page 7 Edition 12/2005 Wiring Diagram between the DG502 and Remote Reader 1 DG502 T R C T S S B M E 1 2 3 4 5 6 12 V 12 DISTANCE 60 cm minimum 50 meters maximum Back view remote reader It is possible to use a separate power supply for the remote reader...
  • Page 8 Edition 12/2005 Wiring Diagram between the DG502 and Remote Reader 2 DG502 T R C T S S B M E 1 2 3 4 5 6 12 V 12 DISTANCE 60 cm minimum 50 meters maximum It is possible to use a Back view remote reader separate power supply for the remote reader...
  • Page 9 Edition 12/2005 Cardholder list: User Username Access User Username Access location Level location Level Menu Values Enrolment reader 00=Controller 0 01=remote reader 1 Door release time Relay 1 01=1 sec, 99=99 sec 1 Door release time Relay 2 01=1 sec, 99=99 sec 2 Programmed by: date...
