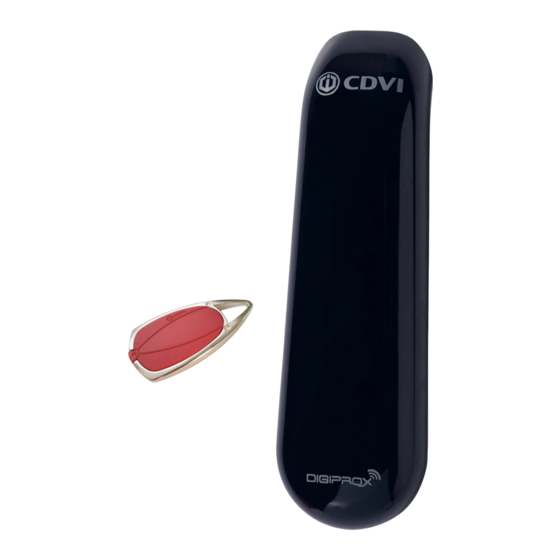

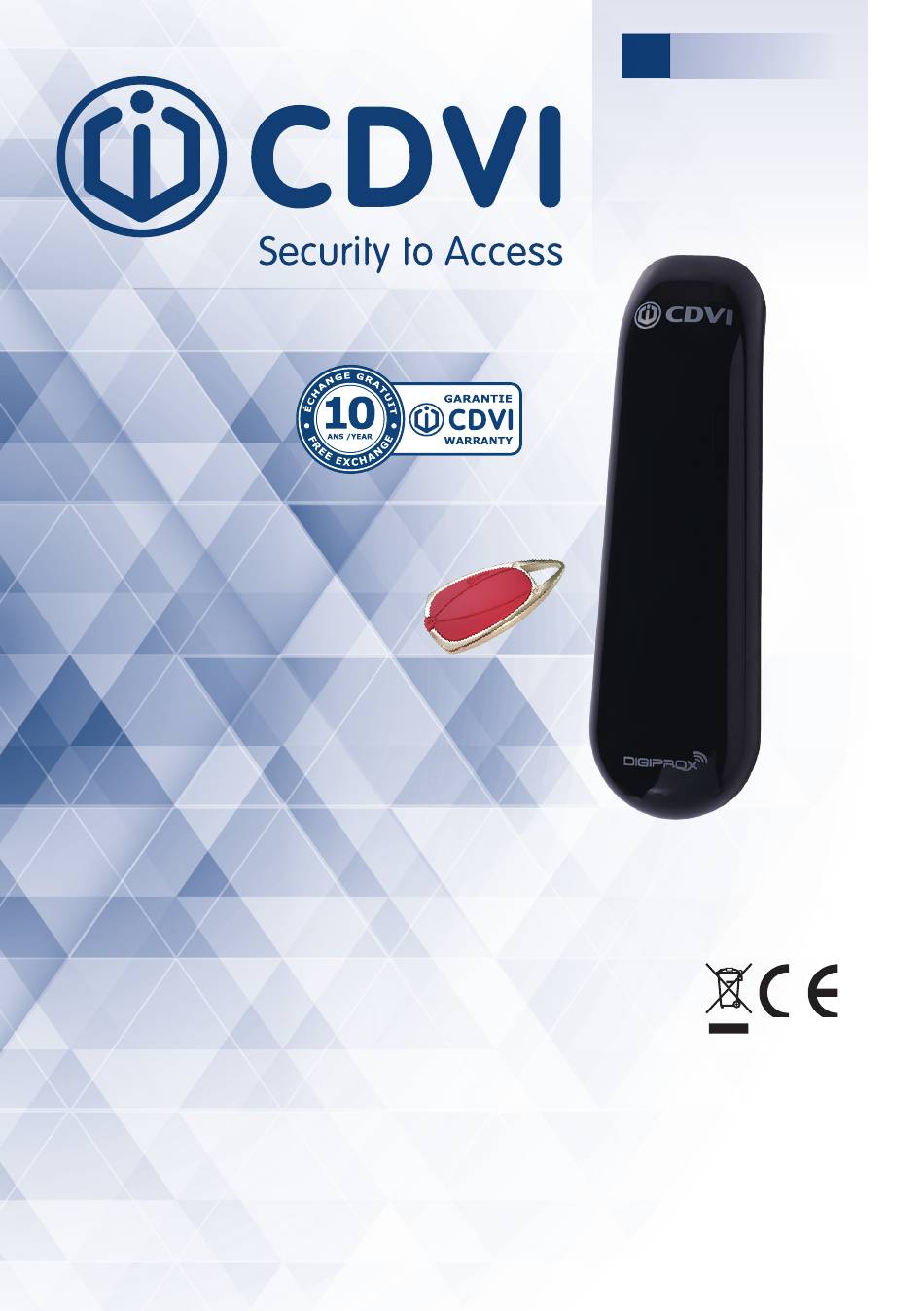

- Page 1 English STAR1M - Mullion Mifare standalone controller and card reader ® STAR1M Mullion Mifare Standalone Controller ® and Card Reader Security to Access www.cdvigroup.com cdvigroup.com...
-
Page 2: Product Presentation
TF 3x30 TORX TORX Varistor METALR tag ® ® seal Screws Plastic anchor Screwdriver tip Screws STAR1M cdvigroup.com We, CDVI, declare that the STAR1M complies with the 2014/53/UE European directive. The full UE declaration is avaiblable on our website www.cdvi.com. -
Page 3: Operation Modes
INSTALLATION MANUAL STAR1M - Mullion Mifare standalone controller and card reader ® 4] OPERATION MODES The different dipswitch positions are used to switch the STAR1M to a standalone system or to a Mifare access reader. ® Standalone mode Wiegand mode... -
Page 4: Standalone Mode
INSTALLATION MANUAL STAR1M - Mullion Mifare standalone controller and card reader ® 6] SETTING READER MODE Before powering on, select the operating mode (Wiegand Mifare reader or ® standalone mode). 1] Wiegand Mifare reader (DIP1 ON) ® - green - red... -
Page 5: Normal Operation
12V DC ADC335 Magnet Strike fail safe Push button The factory setting of the STAR1M is shadow mode. For first use, please program a master badge (see process page 8). Normal operation Position DIP2 to ON Blue LED Swipe user card... - Page 6 These 2 badges can both grant access. In the event that the user badge is lost or stolen, the shadow badge can be used to delete the user badge from the STAR1M. Dipswitch setting Add user cards (max.
-
Page 7: Standard Mode
® 7.2 Standard mode In Standard Mode only one user badge is programmed for each user. To delete a user from the STAR1M, enter the programming mode and present the user badge. Dipswitch setting Add user cards (max. 300) Swipe the master badge or... -
Page 8: Common Operation
INSTALLATION MANUAL STAR1M - Mullion Mifare standalone controller and card reader ® 7.3 Common operation Program or replace a Master badge Yellow LED Beep + Beep Set DIP2 to ON Set DIP2 to OFF Blue LED Present the new master badge... - Page 9 INSTALLATION MANUAL STAR1M - Mullion Mifare standalone controller and card reader ® Important : - Switching « shadow mode » to « independent mode »: all cards are saved but become independant - Switching « independent mode » to « shadow mode »: all cards are erased...
- Page 10 INSTALLATION MANUAL STAR1M - Mullion Mifare standalone controller and card reader ® 8.2 LEDs management in ATRIUM GREEN ACCESS GRANTED LED STATUS ACCESS DENIED BLUE STANDBY RED LED CONFIGURATION GREEN LED CONFIGURATION 8.3 LEDs management in CENTAUR GREEN ACCESS GRANTED...
- Page 11 Reference : G0301FR1031V04 STAR1M - Mullion Mifare standalone controller and card reader Extranet : CDVI_IM_STAR1M_A5_EN-01 ® *G0301FR1031V04* CDVI Group FRANCE (Headquarters) Phone: +33 (0)1 48 91 01 02 CDVI FRANCE + EXPORT CDVI IBÉRICA 31, av. du Général Leclerc [SPAIN - PORTUGAL]...
