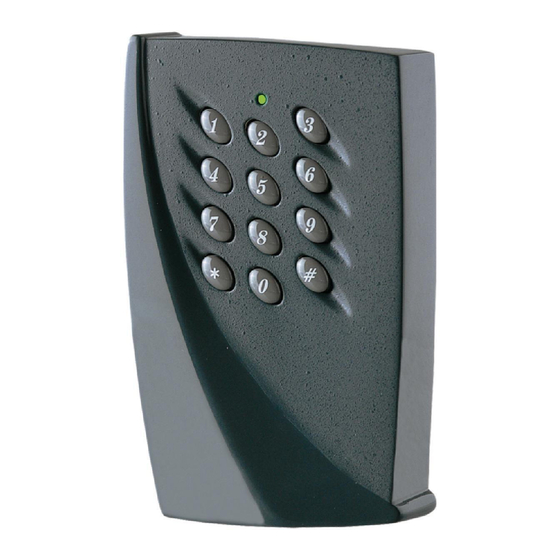

- Page 1 ENGLISH FRANCAIS PROMI1000PC Double technology (proximity and Digicode keypad) 1-door controller ® Centrale 1 porte double technologie (Proximité et Digicode ® The installer’s choice cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 1 03/09/13 10:29...
-
Page 2: Table Of Contents
2] USING THE CONTROLLER ....................P. 4 2.1] RESET THE MEMORY ....................P. 4 2.2] TAGS READING ......................P. 4 2.3] PROMI1000PC LOCKING AFTER 3 INCORRECT CODES ............ P. 5 2.4] ALARM – DOOR CONTACT ................... P. 5 2.5] TIMES OUTPUT RELAY MODE..................P. 5 2.6] LATCHED RELAY MODE .................... -
Page 3: Product Presentation
In the case of a Sherlock electro-magnet (Shear Lock), it should be powered with a separate power supply independent from the PROMI1000PC. 1.3] MOUNTING KIT ECO SYN TF Cable Varistor Jumpers CD-ROM 3x8 screw S0601CABLEDGID001 PROMI1000PC cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 3 03/09/13 10:29... -
Page 4: Default Values
In mode 1 (Badge only) - Present the tag in front of the unit. If the badge is valid then the access is granted. - Two beeps indicate a non valid badge. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 4 03/09/13 10:29... -
Page 5: Promi1000Pc Locking After 3 Incorrect Codes
2.3 ] PROMI1000PC LOCKING AFTER 3 INCORRECT CODES After 3 incorrect badge and/or PIN code are entered, the PROMI1000PC reader and the remote reader are locked out during 2 minutes and the alarm relay is activated. 2 audible beeps sound when the badge/PIN code are not valid. - Page 6 INSTALLATION MANUAL PROMI1000PC One door double technology controller (Proximity and Digicode ® EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 5 03/09/13 10:29...
-
Page 7: Wiring Diagrams
- Do not forget to mount the varistor on the lock. - The PROMI1000PC and the remote reader must be at least 60cm apart. - If two PROMI1000PC are used, they must be 60cm apart and 50m max. IMPORTANT - Additional power supply for readers. -
Page 8: Software
- Edit the name of the new site. - Change its password if you want. You can also change the language of the site. - Click on the « OK » button. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 7 03/09/13 10:29... -
Page 9: 2] Working On A Site
1 - Sélection de données à gérer 2 - Zone de menu 3 - Zone de données 04 - Zone de travail 05 - Bouton de connexion 06 - Barre d’état cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 8 03/09/13 10:29... -
Page 10: 1] Sites
13 - Settings of the holidays (per year). Enter the day first, and to enter again, exit is required. 8 - Daylight saving time activation (French settings). then the month. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 9 03/09/13 10:29... -
Page 11: B - View (The Current Site)
It is used to download the configuration and settings from the PROMI1000PC to the PC database. - The “Upload” button is visible only if the software is connected with the PROMI1000PC. It is used to transfer the configuration and the settings from the PC database to the PROMI1000PC. C - Edit (the current site) - In the context menu of the sites, click on “Edit”. -
Page 12: D - Delete (The Selected Site)
PROMI1000PC. D - Delete (the selected site) - Deletion removes the site and settings from the PC database, but does not alter the PROMI1000PC data. - Click the “Delete” button to complete this operation. -
Page 13: 2] Users
6 - Access Permission for holidays. The other edit boxes are indicative. 10 - OK button: Validation of any operation (Modify, Create, Delete). The information entered is not sent to the PROMI1000PC. In connected mode, the result is sent directly to the PROMI1000PC. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 12... -
Page 14: A - Users Management
In other cases, you must enter the correct code or the right badge number. - If the result is a right user, the background of the selected user is BLUE. C - View (an user) cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 13 03/09/13 10:29... -
Page 15: D - Edit (An User)
D - Edit (an user) - The «Apply» button saves the PC database changes made on the user data. - In connection, these changes are sent directly to the PROMI1000PC. - Offline, in the data area, the background of the modified user is «GREEN». -
Page 16: F - Export The Users
< Modified profile (Green) F - Export the users - The list of users is displayed on the screen, - By clicking on «Print», you get the following window: cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 15 03/09/13 10:29... -
Page 17: G - Import Users
- After editing the name of the export file, click «Apply». G - Import users Enter here the path of the import file. Click on the icon to browse and select the work file. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 16 03/09/13 10:29... -
Page 18: A - Send Configuration
B - Read configuration - Download the configuration from the PROMI1000PC to the PC. C - Send modified files - Update the data of the PROMI1000PC with the users marked «Modified» or «Deleted». D - Date/time on PROMI1000PC cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 17... -
Page 19: E - Anti-Passback Reset
One door double technology controller (Proximity and Digicode ® - Click «Transfer system date and time» to directly send the date and time from the PC to the PROMI1000PC. If you want to change manually, proceed as written in the screen interface. -
Page 20: B - View Events
- Mode (operation): Badge and code, Only Badge, Badge or Code. - Alarm, - Free Access, - Master code entered, - Check the boxes on the right of each criterion to reflect the values entered in the corresponding fields. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 19 03/09/13 10:30... -
Page 21: 5] Backup/Restore Menu
List of the sites included in the backup database Enter here the name of the current database backup - This feature allows you to restore an entire database saved by the above procedure. cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 20 03/09/13 10:30... -
Page 22: Notes
- If you want a backup of the database in use, check “Save the current database” and enter the file name under which the backup will be saved. - Click “Restore” to complete the operation. 5] NOTES cdvi.com cdvigroup.com EXE-CDVI_IM PROMI1000PC CMYK A5 EN-FR 05.indd 21 03/09/13 10:30...
