Summary of Contents for CDVI ATRIUM A22POE
- Page 1 ENGLISH Power Over Ethernet A22POE Web-Based PoE+ 2-Door Hybrid Controller The installer’s choice cdvigroup.com...
-
Page 2: Table Of Contents
7] WARRANTy - TERMS & CONDITIONS ..........29 Copyright (C) 2016 CDVI. All rights reserved. ATRIUM Access Control is protected by copyright law and international treaties. -
Page 3: Product Presentation

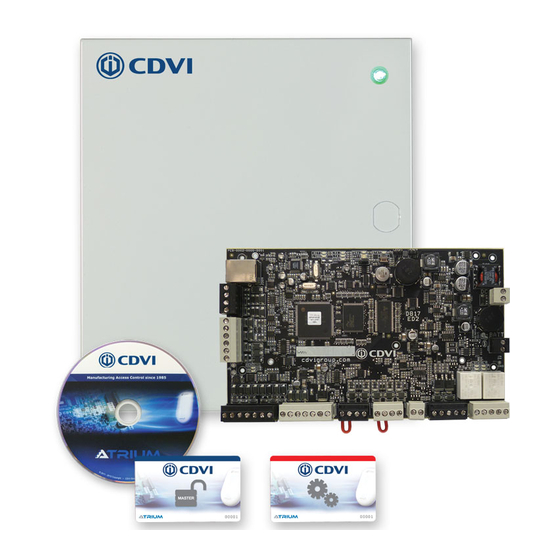

INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller 1] PRODUCT PRESENTATION The A22POE is ATRIUM’s powerful Web-Based PoE+ hybrid module. The flexibility of the A22POE module allows it to be set either as a 2-door controller or expander (2 in 1). The A22POE includes an embedded web server... -
Page 4: Notes And Recommendations
UL 294 COMPLIANCE NOTICE • Use only UL listed power supply • Connect CDVI LED status indicator, part number 7020-0001-0000, to the DC Input gray terminals of the A22POE. Note: Backup battery provides operation of up to 12 hours but has been tested for 4 hours per Section 33 of UL 294, fifth edition. -
Page 5: Recommended Wiring
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller RECOMMENDED WIRING Maximum Equipment Wire Type Size Length 4 to 8 conductors, stranded, shielded (foil), drain Card reader and 22AWG (0.64mm) to conductor. For example: Alpha 5196, 5198, 5386, 150m (500ft.) 18AWG (1.02mm) Wiegand keypad... - Page 6 Battery Backup 12Vdc 7Ah rechargeable acid/lead or gel cell backup battery (UL/ULC: YUASA #NP7-12 Battery Capacity recommended, Europe: CDVI B7AH recommended). Ensure proper polarity. 250mA (default), 320mA, 500mA, or 1A. Refer to the ATRIUM user interface instruction manual Charging Current for more information on how to modify the battery charging current.
-
Page 7: Package Contents
INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller 3] PACKAGE CONTENTS This chapter details how to install and setup the ATRIUM A22POE . The A22POE contains: • One A22POE module in its cabinet with connection diagram label • Metal Box kit (See below) •... -
Page 8: Location And Mounting
INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller LOCATION AND MOUNTING The cabinet is designed to be installed indoors, in a safe and secure location. Suggested locations include electrical rooms, communication equipment rooms, closets or in the ceiling. To save time, wiring and facilitate testing, install the cabinets at an equal distance between its controlled doors. -
Page 9: Mounting Instructions
INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller 4] MOUNTING INSTRUCTIONS The box needs to be prepared before fixing it to its location. INSTALLING THE TAMPER SWITCHES Installing tamper switches allows the A22POE to detect when the cabinet door is opened and/or when the cabinet is removed from the wall. - Page 10 INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller Install the wall tamper switch using the supplied bolts and nuts as shown in the following picture. Install the tamper switch plastic spacer on the back at bottom left side of Cabinet Side View the box as show in the following picture.
- Page 11 INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller Install the door tamper switch by aligning the switch holes to the pre-installed plastic bracket pins. Press firmly to secure the tamper switch in position, then fix the bracket to is mounting flange. Refer to page 16 for wiring diagram. Fix the tamper switch to the bracket then mount the bracket on the...
-
Page 12: Installing The Box Lock
INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller INSTALLING THE BOx LOCK Installing the box lock allows to secure the box from unauthorized access. Installation procedure: Remove the box door knock-out. Insert the lock in the hole. Slide the “U” metal part into the lock groove to secure the lock in place. -
Page 13: Fixing The Box To Its Location
INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller FIxINg ThE BOx TO ITS LOCATION Install the box to its location using 4 screws (not supplied) as shown in the following picture. If the wall tamper switch is used, make sure that the tamper switch arm moves freely and is completely pushed in when the enclosure is installed on the wall. -
Page 14: Installing The A22Poe Pc Board
INSTALLATION MANUAL ATRIUM A22POEPOE 2-Door Controller INSTALLING THE A22POE PC BOARD Install the 5 fasteners (PCB holder) supplied respectively to the box holes identified in red in the following picture. Install the A22POE PCB by aligning the fasteners with the corresponding PCB holes and pressing firmly to secure the PCB in place. -
Page 15: Wiring Diagram
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller 5] WIRING DIAGRAM MODULE TyPE CONFIgURATION (CONTROLLER OR ExPANDER) The flexibility of the A22POE module allows it to be set either as a 2-door controller or 2-door expander. Simply adjust the “TYPE” jumper to the required position (see the diagram below). -
Page 16: Box Tamper Switches
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller BOx TAMPER SWITCHES Connecting the tamper switches allows the A22POE to detect when the cabinet door is opened and/or when the cabinet is removed from the wall. To install the tamper switches, see “Installing the Tamper Switches”. -
Page 17: Readers And Keypads
SETTING ETHERNET MODULE TYPE a bright blue backlight in standby mode. A list of other CDVI readers and keypads is shown below. Other SYSTEM STATUS popular wiegand readers and keypads are also supported. Contact us to confirm compatibility. Most readers +12V DC and keypads have built-in buzzers and LEDs. -
Page 18: Inputs
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller INPUTS The A22POE can monitor the state of up to 6 devices (12 using zone doubling) such as magnetic contacts, motion detectors, temperature sensors, or other devices. The following are examples of the type of inputs that... - Page 19 INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller Input Connection Methods Single without EOL and without TAMPER Supervision INPUTS (Limit of 1 Detection Device on the Input) 12V Z1 GND Z2 Z3 GND Z4 Z5 When using this method, only one device can be connected to the input.
- Page 20 INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller Single with WIRE SHORT and WIRE CUT Supervision INPUTS (Limit of 1 Detection Device on the Input) 12V Z1 GND Z2 Z3 GND Z4 Z5 When using this method, only one device can be connected to the input.
-
Page 21: Door Lock Devices
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller DOOR LOCk DEVICES Each controller has two lock outputs. The LOCK OUTPUT can be configured to provide power (750mA @ 12Vdc), see “Jumper Settings” on this page, the LOCK OUTPUT is protected by a fuseless protection algorithm and will shutdown if the current exceeds 750mA @ 12Vdc. - Page 22 (De-energize lock output) (Energize lock output) INSTALLATION MANUAL ATRIUM A22POE LOCAL LOCK 1 LOCK 2 24V DC INPUT ETHERNET STATUS SETTING SETTING BATTERY ETHERNET 2-Door Controller MODULE TYPE SYSTEM STATUS +12V DC INPUT +24V DC RS485 POWER LOCAL SUPPLY Lock Device Wiring Diagram...
-
Page 23: Power Supply
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller POWER SUPPLy Do not power up the A22POE until all connections are completed. The module operates from PoE+ sources using the DC output of the pre-assembled PoE+ splitter and provides fully monitored power solutions using: •... -
Page 24: Battery Backup
12Vdc 7Ah rechargeable acid/lead or gel cell backup battery (UL/ULC: YUASA #NP7-12 recommended, Europe: CDVI B7AH recommended). Ensure proper polarity. Various (means any type, from any manufacturer that complies with the “Technical Data and securement means” and meets the “Mark of conformity”... -
Page 25: Led Indicators
The ATRIUM A22POE has several status LEDs that are very useful to diagnose problems when using or installing the ATRIUM system. Refer to the following picture to locate the LEDs on the ATRIUM A22POE. All LEDs are explained in the following pages. -
Page 26: Ethernet Network Connection & Rs485 Bus
ETHERNET NETWORK CONNECTION & RS485 BUS Connect the Ethernet 10/100 Mbps port of the ATRIUM A22POE to a LAN or WAN network using an UTP cable (maximum 100m (300ft)). Connect expansion modules on a 3 conductor RS485 communication loop in daisy chain or star configuration up to 1220m (4000 ft) from the ATRIUM controller. -
Page 27: Expander Modules To The Controller
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller ExPANDER MODULES TO THE CONTROLLER The A22POE has a RS485 LOCAL BUS terminal allowing the connection with the ATRIUM expander module. The RS485 LOCAL BUS communication is up to 1220 m (4000 ft) maximum distance. One A22POE can support up to four A22POE expansion modules. -
Page 28: Programming
INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller 6] PROGRAMMING The stand-alone card enrollment allows you to add or delete user cards without the need of a PC. CARD ENROLLMENT PROCEDURE (ADD OR DELETE CARDS WIThOUT A COMPUTER). Present the MASTER card to a reader. -
Page 29: Warranty - Terms & Conditions
CDVI or a local CDVI subsidiary. The “5 Year Warranty” is only applicable to hidden defects detected during the lifetime of the product, as defined by the CDVI Group (5 years or 200 000 operations - whichever of the two expires first). - Page 30 • Any product which has undergone even the slightest modification or change; • Any product which has been installed and/or used with any auxiliary device not supplied by CDVI; • Any product which has been used for demonstrations or display;...
- Page 31 INSTALLATION MANUAL ATRIUM A22POE 2-Door Controller NOTES: cdvigroup.com...
- Page 32 Reference : G0301EN0413V01 Extranet : EXE-CDVI_IM A22POE CMYK A4 EN 01 *G0301EN0413V01* CDVI group FRANCE (Headquarter/Siège social) Phone: +33 (0)1 48 91 01 02 Fax: +33 (0)1 48 91 21 21 CDVI CDVI FRANCE + EXPORT IBÉRICA Phone: +33 (0)1 48 91 01 02...
