KRT-3 Quick Start Guide
This guide helps you install and use your KRT-3 for the first time.
Go to
Scan for full manual
Step 1: Check what's in the box

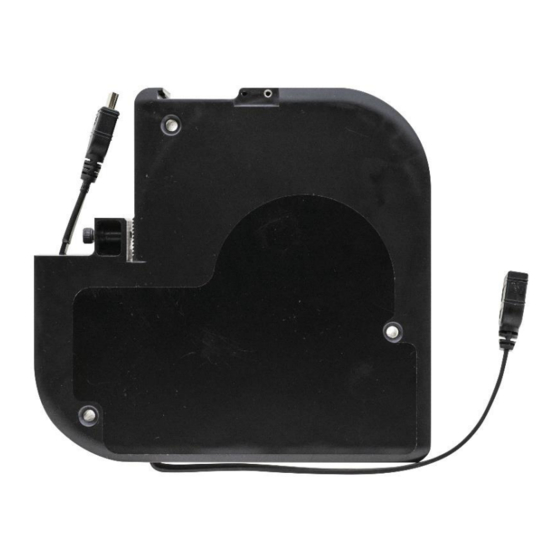

KRT-3 Cable Retractor

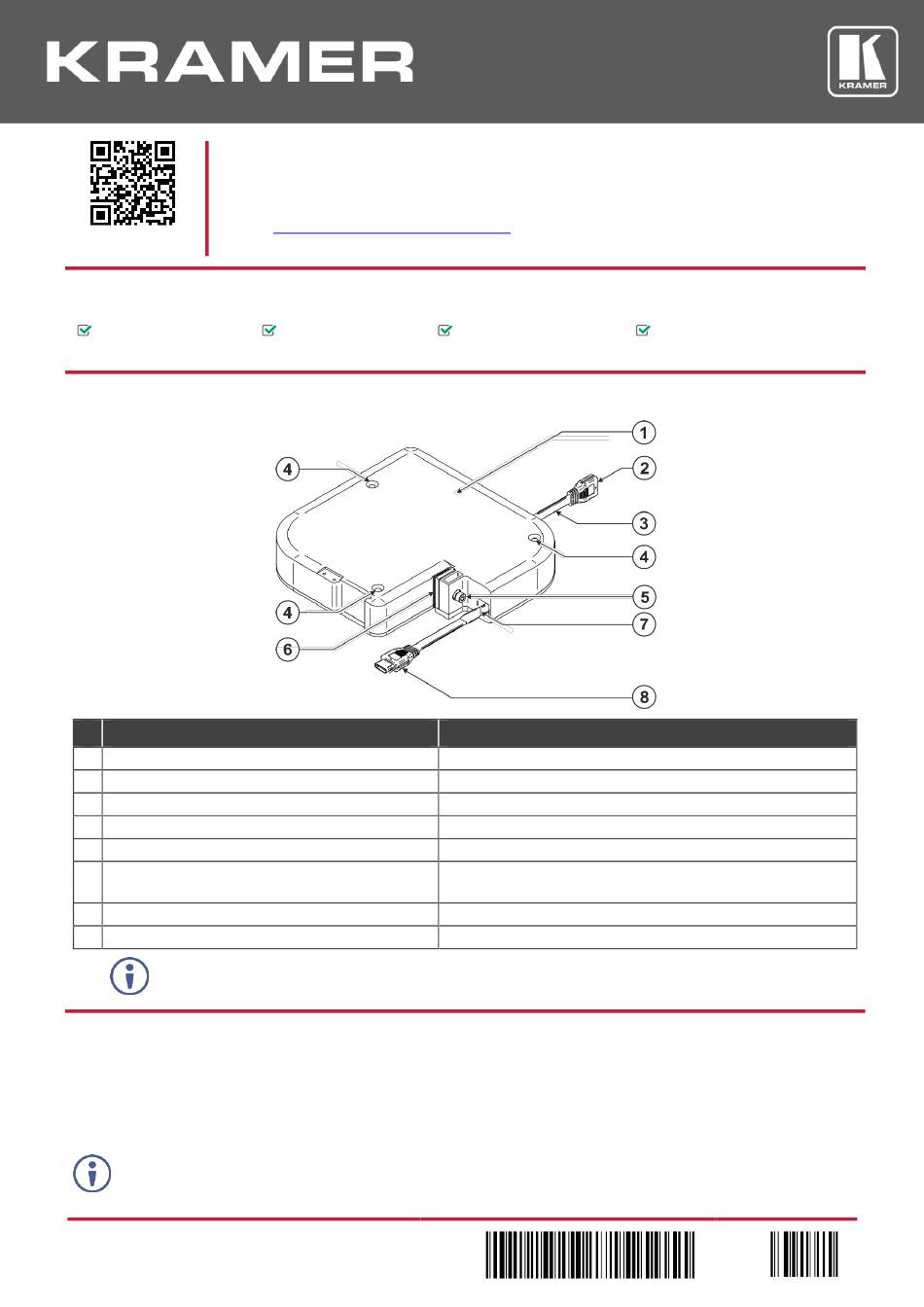

Step 2: Get to know your KRT-3
#
Feature
1
Retractor Enclosure
2
Fixed Cable Female Connector
3
Fixed Cable End
4
Screw Openings for Mounting Under the Table (3)
5
Locking Allen Bolt
6
TBUS Installation Slot
7
Retracting Cable
8
Retracting Cable Male Connector
KRT-3 is available for the following cables: HDMI (High Speed HDMI with Ethernet), VGA, audio (3.5mm),
LAN, USB, USB-C, and DisplayPort.
Step 3: Install KRT-3
Attaching KRT-3 to a Kramer TBUS
Use this procedure to mount KRT-3 onto the following Kramer TBUS units: TBUS-1AXL, TBUS-3xl, TBUS-4xl, TBUS-5xl,
TBUS-6xl and TBUS-10XL.
Before mounting the KRT-3 onto a TBUS, you need to configure and install the TBUS inner frame (including inserts and
power sockets) and mount the TBUS onto a table.
Remember to prepare an opening in the TBUS inner frame for the retracting cable connector (for example,
use the Kramer WCP pass-through insert).
KRT-3 Quick Start (P/N: 2900-301022QS REV 1)
www.kramerav.com/downloads/KRT-3
1 Quick start guide
Function
Contains the retractable cable mechanism.
Connect to a male connector under the table.
Short connector cable.
Use to attach the KRT-3 directly under a table.
Turn to lock KRT-3 to the TBUS enclosure.
Insert TBUS enclosure side into the slot to attach KRT-3 to a
TBUS.
Pull to connect to a connector above the table.
Connect to a female connector.
P/N:
to download the latest user manual.
3 M4x50 Fully threaded
screws for wood
2 9 0 0 - 3 0 1 0 2 2 QS
1 M5x25 Allen bolt
Rev: 1
Advertisement
Table of Contents
Related Manuals for Kramer KRT-3
Summary of Contents for Kramer KRT-3
- Page 1 Use this procedure to mount KRT-3 onto the following Kramer TBUS units: TBUS-1AXL, TBUS-3xl, TBUS-4xl, TBUS-5xl, TBUS-6xl and TBUS-10XL. Before mounting the KRT-3 onto a TBUS, you need to configure and install the TBUS inner frame (including inserts and power sockets) and mount the TBUS onto a table.
- Page 2 To attach KRT-3 to a TBUS: 1. From under the table, slide the KRT-3 onto one of the side walls of the TBUS. Make sure that the fixed cable is directed downwards and the retracting cable is directed upwards. 2. Use the appropriate Allen key to fix the KRT-3 by tightening the Allen bolt firmly in place and pass the retracting cable end through the cable pass-through bushing.
