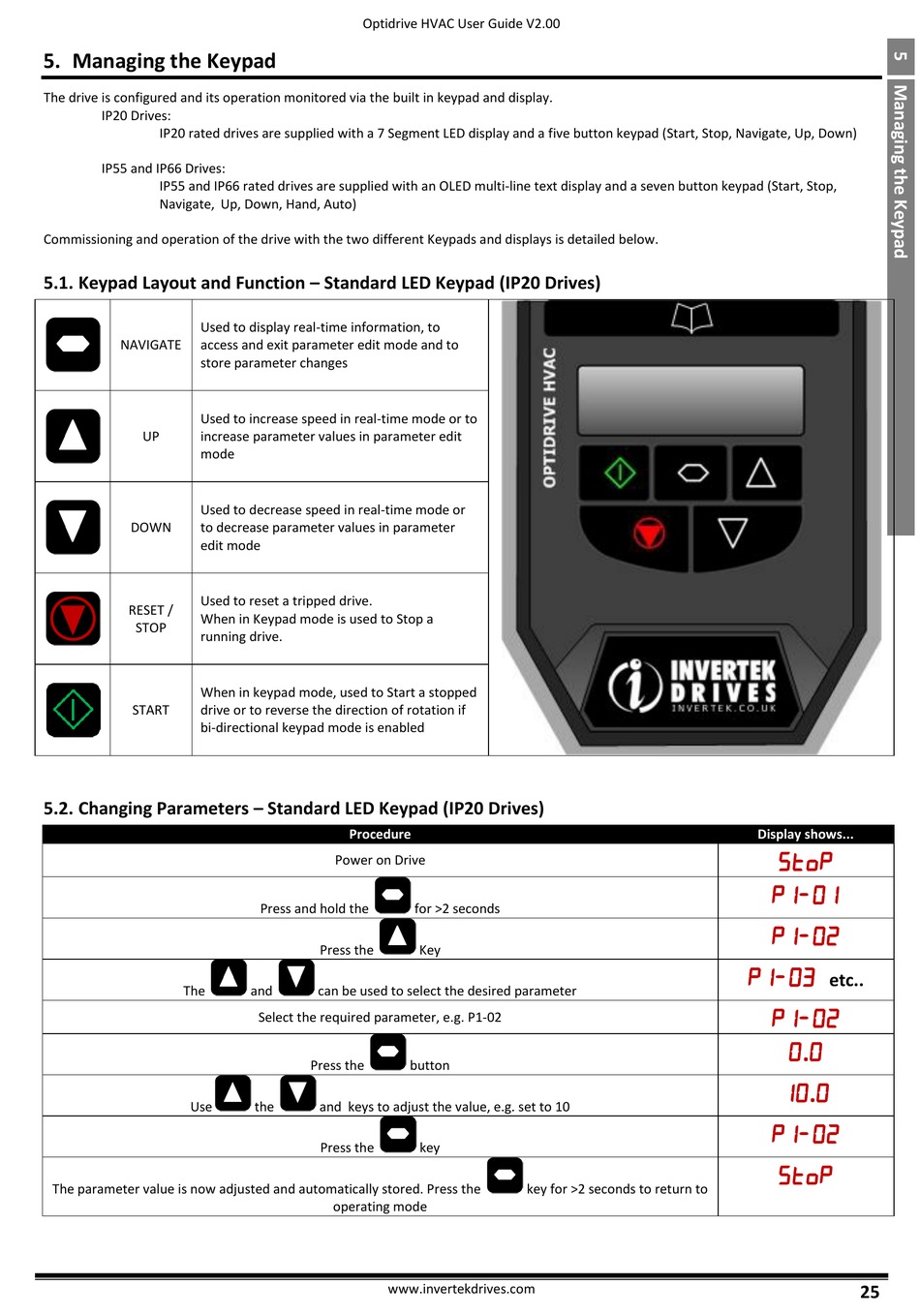

5. Managing the Keypad

The drive is configured and its operation monitored via the built in keypad and display.
IP20 Drives:
IP20 rated drives are supplied with a 7 Segment LED display and a five button keypad (Start, Stop, Navigate, Up, Down)
IP55 and IP66 Drives:
IP55 and IP66 rated drives are supplied with an OLED multi-line text display and a seven button keypad (Start, Stop,
Navigate, Up, Down, Hand, Auto)
Commissioning and operation of the drive with the two different Keypads and displays is detailed below.
5.1. Keypad Layout and Function – Standard LED Keypad (IP20 Drives)
Used to display real-time information, to
NAVIGATE access and exit parameter edit mode and to
store parameter changes
Used to increase speed in real-time mode or to
UP increase parameter values in parameter edit
mode
Used to decrease speed in real-time mode or
DOWN to decrease parameter values in parameter
edit mode
Used to reset a tripped drive.
RESET /
When in Keypad mode is used to Stop a
STOP
running drive.
When in keypad mode, used to Start a stopped
START drive or to reverse the direction of rotation if
bi-directional keypad mode is enabled
5.2. Changing Parameters – Standard LED Keypad (IP20 Drives)
The
Use
The parameter value is now adjusted and automatically stored. Press the
Optidrive HVAC User Guide V2.00
Procedure
Power on Drive
Press and hold the for >2 seconds
Press the Key
and can be used to select the desired parameter
Select the required parameter, e.g. P1-02
Press the button
the and keys to adjust the value, e.g. set to 10
Press the key
operating mode
www.invertekdrives.com
key for >2 seconds to return to
Display shows...



 
etc..

.
.


